Product information

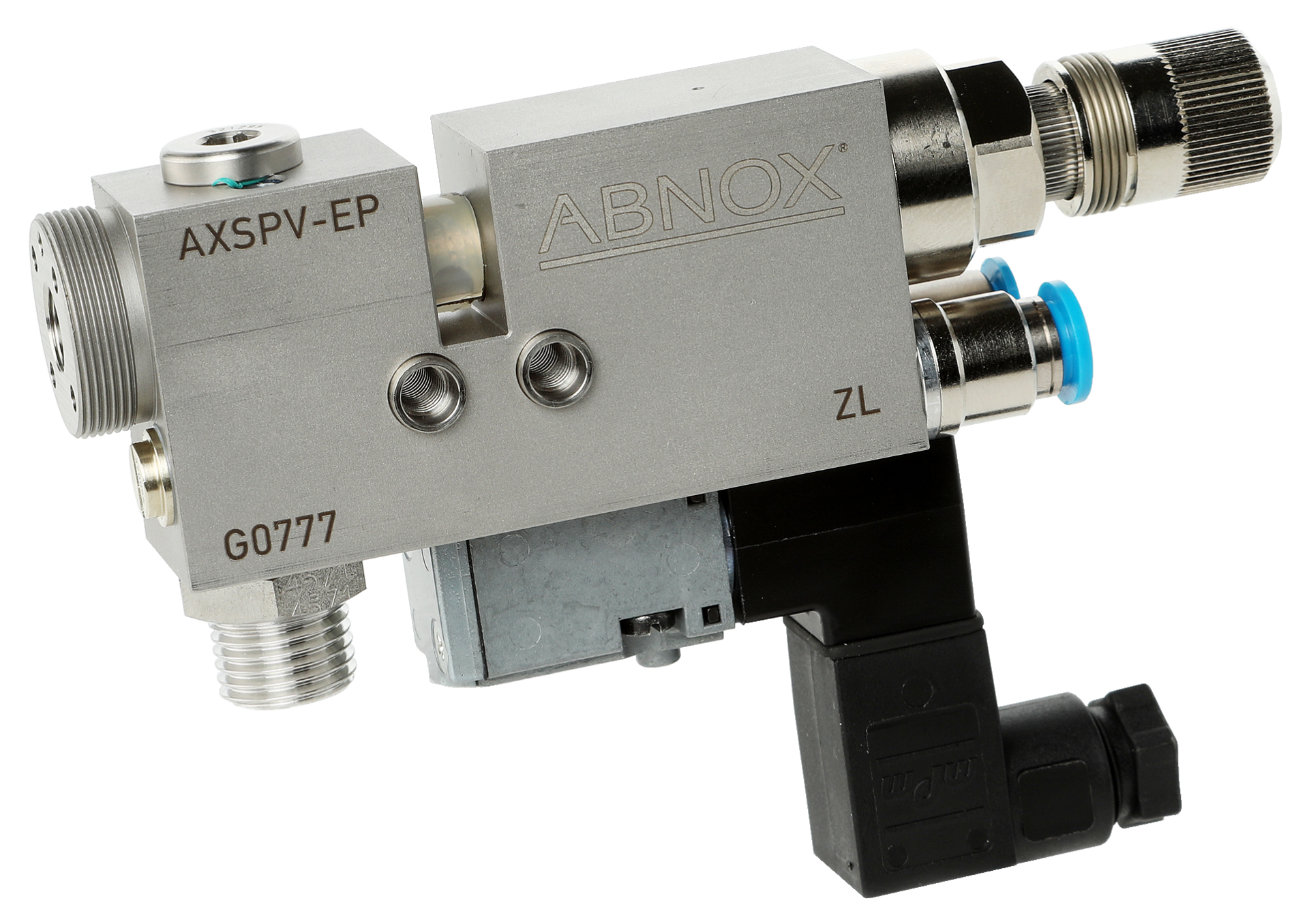

This basic model of the Electro-pneumatic Spray Valve AXSPV-EP is equipped without a Nozzle and Nozzle Needle. It is suitable for mounting various DVL Needle-sealing Nozzle Extensions.
- Atomizing air connection ZL: to compressed air supply
- Control air connection SL: to compressed air supply (Compressor)
- Material / Medium connection M: to Pressure Tank or Pump
| Specification | Quantity | Article No. |
|---|---|---|
Without Nozzle and Nozzle Needle | - | |
5/2-way Solenoid Valve 24 VDC / 1.8 W and integrated spray air control | 1 | 0012214 |
| Latching Needle Lock RNV without Electrical Needle Sensor for easy adjustment of the material quantity | 1 | 0011297 |
Centring for Air Cap LFK or Nozzle Extension DVL | 1 | |
Countersinks including centring sleeves (mounting) | 2 |
| Description | Article-No. |
|---|---|
Nozzle (see accessories) | |
Nozzle Needle (see accessories) | |
Nozzle Extension DVL (see accessories) | |
Air Cap LFK (see accessories) | |
| Retaining Ring for Air Cap LFK | 0004057 |
| Pressure Sensor DS1, 0 - 5 bar | 0010469 |
| Pressure Sensor DS2, 0 - 50 bar | 0009137 |
| Raster Needle Lock RNA with Electrical Needle Sensor | 0010470 |
Valve Heater VH | 0010471 |
| Connection Cable M12x1, 4 poles, Length 10.0 m for Valve Heater VH | 0008469 |
| Temperature Controller Set AXTR-024VDC-03500 with two alarm outputs, connection with Valve Heater VH | 0009536 |
Fine Material Pressure Regulator Modular Unit with electronic pressure switch and manual venting | 0013088 |
| Description | Article-No. |
|---|---|
Wearing Parts Kit including sealing screw for medium and air area | 0016697 |
Air Valve complete, automatic pre- and after-air control | 0011339 |
Cable Plug, 15 x 15mm, 3-pole, for 5/2 way solenoid valve 24 VDC | 0012220 |
Cable Plug, 15 x 15 mm, 2-pole and earth, with function LED and freewheel dieode for 5/2-way Solenoid Valve 24 VDC | 0012224 |
"M" Material pressure [bar]
35
Connection internal thread
1/8'' BSP / Push-in fitting for hose dia. 6 mm
Connection medium inlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
"SL" Control air pressure [bar]
5 - 6
"ZL" Atomizing air pressure [bar]
0.5 - 5
Pneumatic connection internal thread
1/8'' BSP / Push-in fitting for hose dia. 6 mm
Switching frequency [Hz]
up to 30 cycles per second
Voltage [V DC]
24
