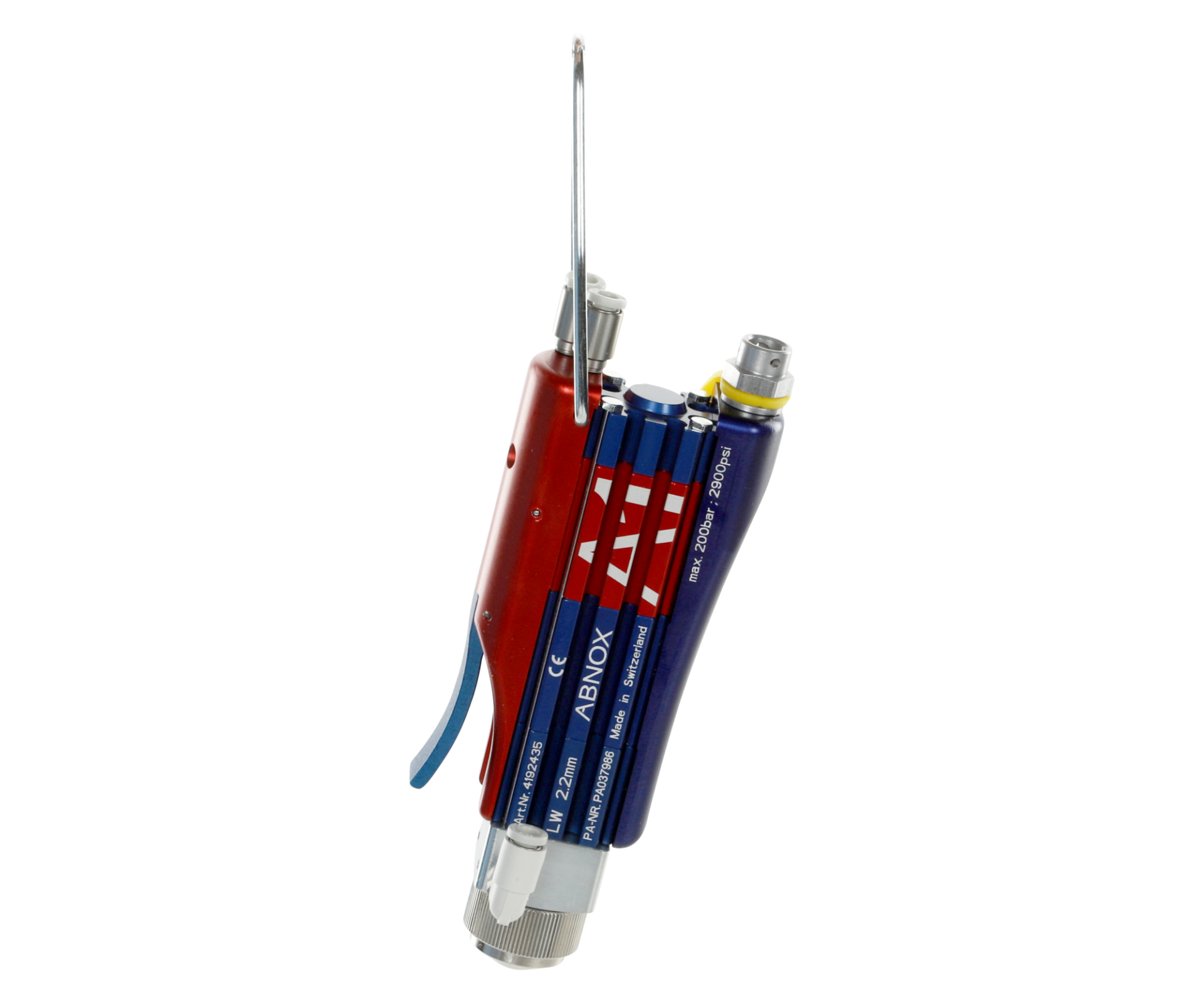

Product information
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
| Description | Article-No. |
|---|---|
Seal Kit | 0006885 |
Clearance width [mm]
2.2
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Nozzlediameter [mm]
0.5
Aircap
Round spray 15°
Working pressure medium inlet [bar]
200
Max. workingpressure medium inlet [bar]
200
Connection internal thread
M3 for Hose ø4/2 mm
Connection medium inlet internal thread
M8x1 / Plug connection
Connection medium outlet internal thread
With Spray Nozzle SPK1-RS15-0.5
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M3 for Hose ø4/2 mm
Weight [kg]
0.73
