Product information

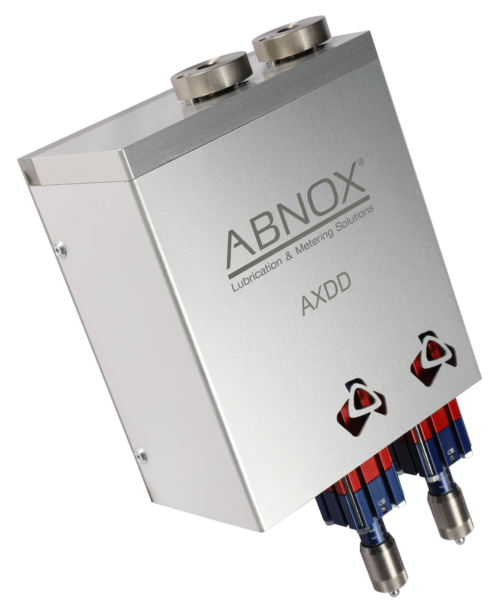

Dosing Devices with two Metering Valves and manual pneumatic release
| Model | Version Double | Dispensing range | Article No. |
|---|---|---|---|
AXDD-C1-C1 (V3.0) | 2 x Metering Valves AXDV-C1 | 1 - 20 mm3 | 0007565 |
AXDD-C1-C2 (V3.0) | 1 x Metering Valves AXDV-C1,
1 x Metering Valves AXDV-C2 | 1 - 20 mm3,
10 - 200 mm3 | 0007566 |
AXDD-C2-C2 (V3.0) | 2 x Metering Valves AXDV-C2 | 10 - 200 mm3 | 0007567 |
AXDD-C3-C3 (V3.0) | 2 x Metering Valves AXDV-C3 | 0.1 - 2.0 cm3 | 0007568 |
AXDD-C3-C4 (V3.0) | 1 x Metering Valves AXDV-C3,
1 x Metering Valves AXDV-C4 | 0.1 - 2.0 cm3,
1.0 - 6.0 cm3 | 0007569 |
| AXDD-C4-C4 (V3.0) | 2 x Metering Valves AXDV-C4 | 1.0 - 6.0 cm3 | 0007570 |
Connection internal thread
M5 for hose ø4/2 mm
Connection medium outlet external thread
1/4'' BSP
Pneumatic connection internal thread
M5 for hose ø4/2 mm
Fastening Bores [mm]
2x ø6.6
Connection diagramm
Dimensioned Sketch AXDD-C1-C1 (V3.0)
Dimensioned Sketch AXDD-C2-C2 (V3.0)
Dimensioned Sketch AXDD-C3-C3 (V3.0)
Spare Parts List AXDD-C1-C1 (V3.0)
Spare Parts List AXDD-C2-C2 (V3.0)
Spare Parts List AXDD-C3-C3 (V3.0)
3D-Data AXDD-C1-C1
stp
3D-Data AXDD-C2-C2
stp
Assembly instructions

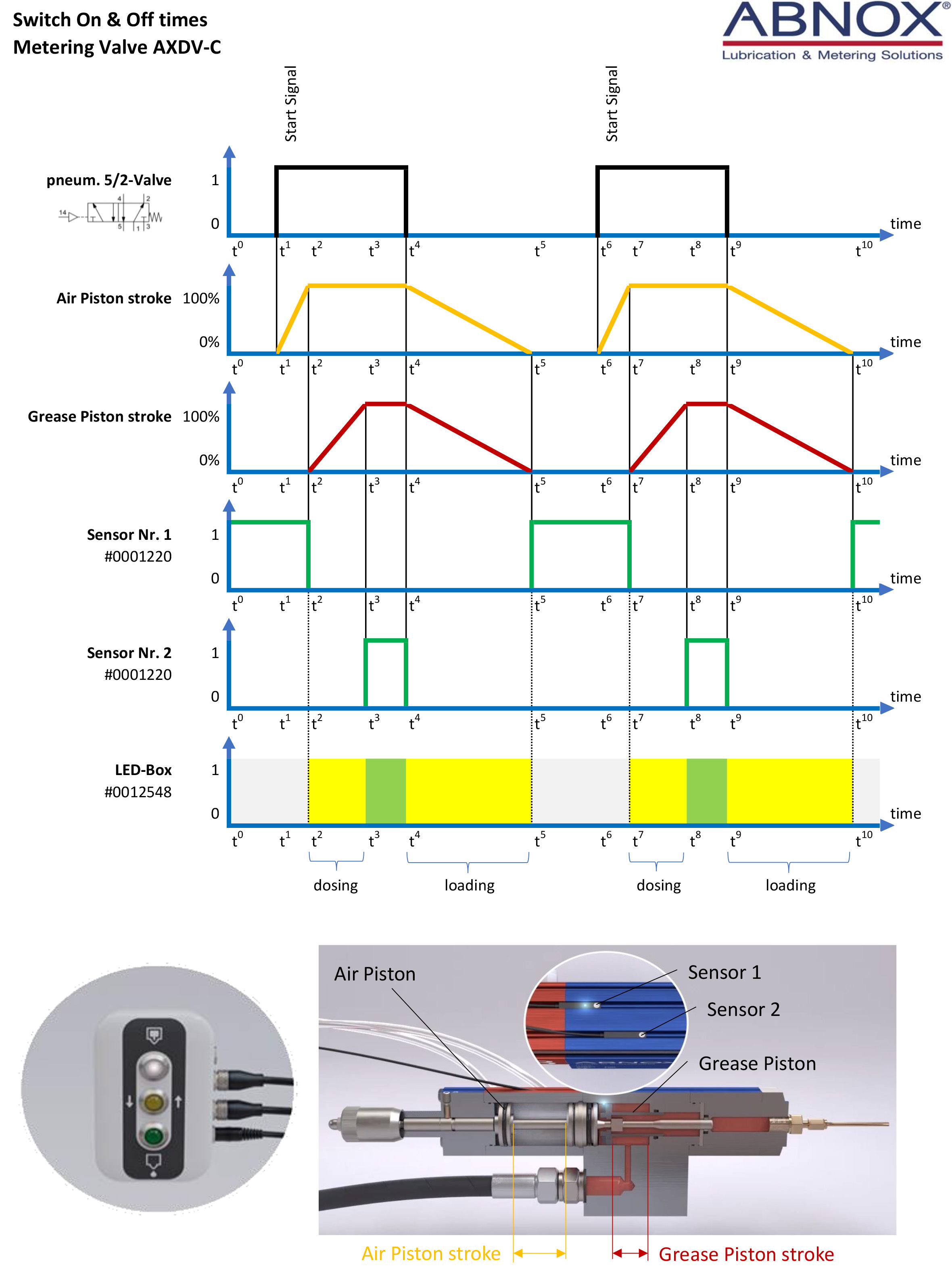

Graphic switch-on and switch-off times
