Product information

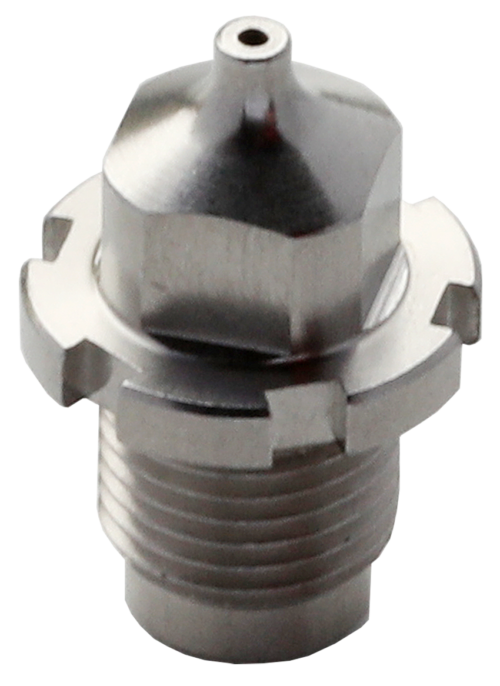

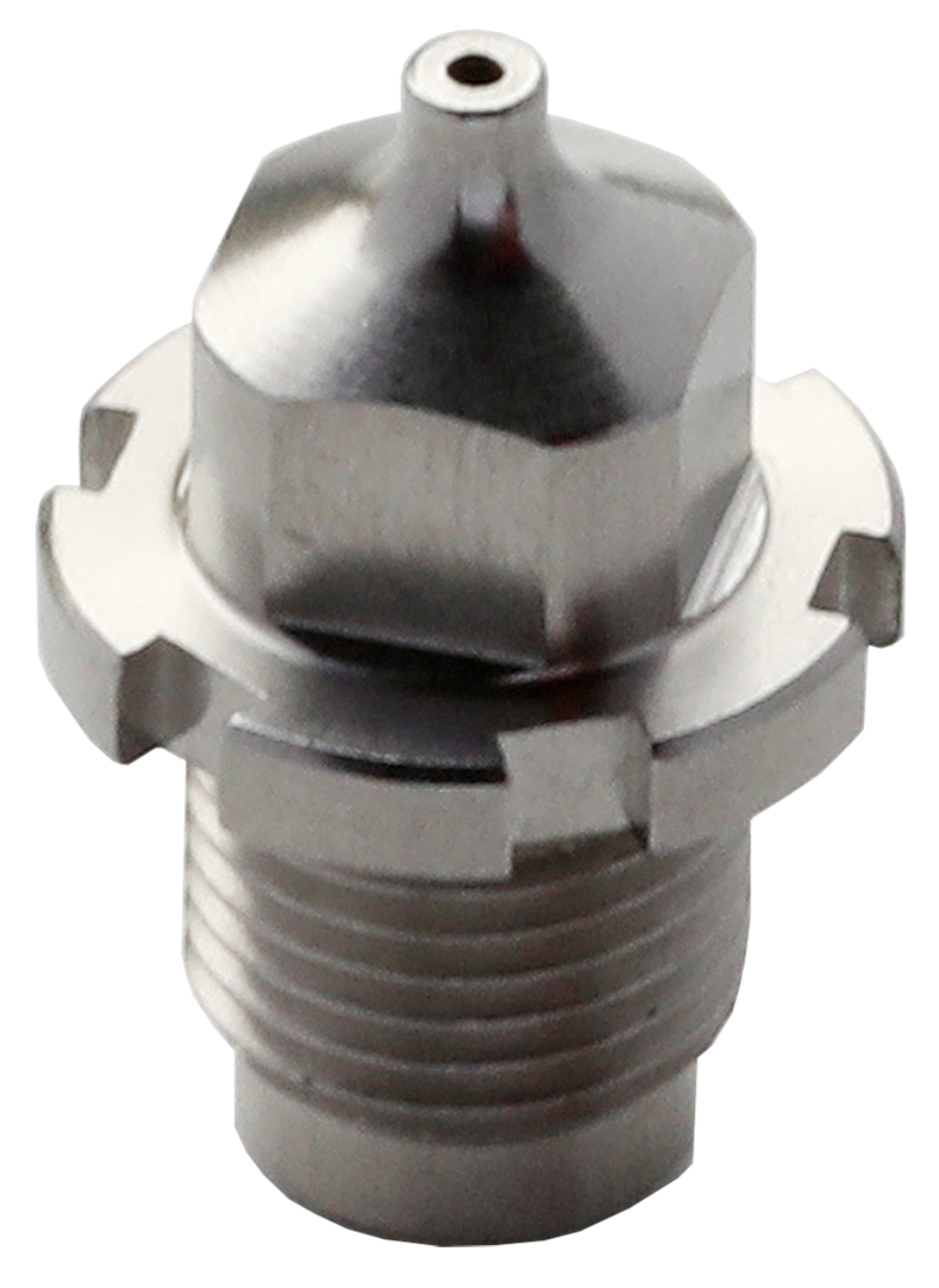

Standard Nozzles are suitable for the AXSPV Spray Valves in combination with Standard Nozzle Needles.
Material: Stainless steel
| Model | Nozzle inside diameter | Outside diameter x length | Wrench size | Article No. |
|---|---|---|---|---|
Standard nozzle STD0.2 | 0.2 mm | 12 x 18 mm | 7 mm | 0005160 |
Standard nozzle STD0.3 | 0.3 mm | 12 x 18 mm | 7 mm | 0010472 |
Standard nozzle STD0.5 | 0.5 mm | 12 x 18 mm | 7 mm | 0004058 |
Standard nozzle STD0.8 | 0.8 mm | 12 x 18 mm | 7 mm | 0004905 |
Standard nozzle STD1.0 | 1.0 mm | 12 x 18 mm | 7 mm | 0009960 |
Standard nozzle STD1.2 | 1.2 mm | 12 x 18 mm | 7 mm | 0010474 |
Standard nozzle STD1.5 | 1.5 mm | 12 x 18 mm | 7 mm | 0004907 |
Standard nozzle STD2.0 | 2.0 mm | 12 x 18 mm | 7 mm | 0010475 |
Standard nozzle STD2.5 | 2.5 mm | 12 x 18 mm | 7 mm | 0010476 |
