Product information

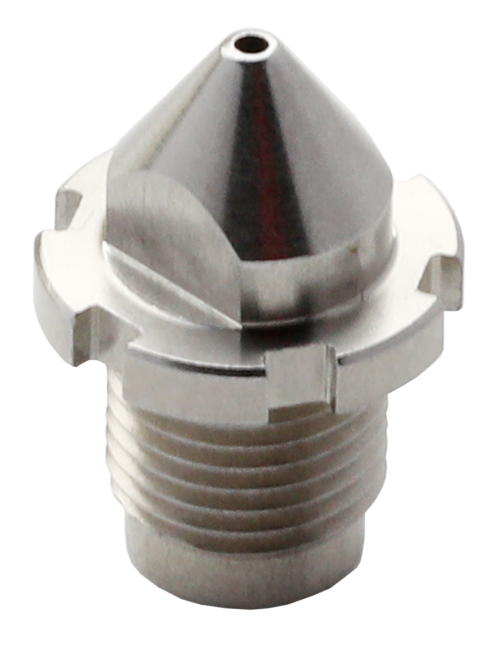

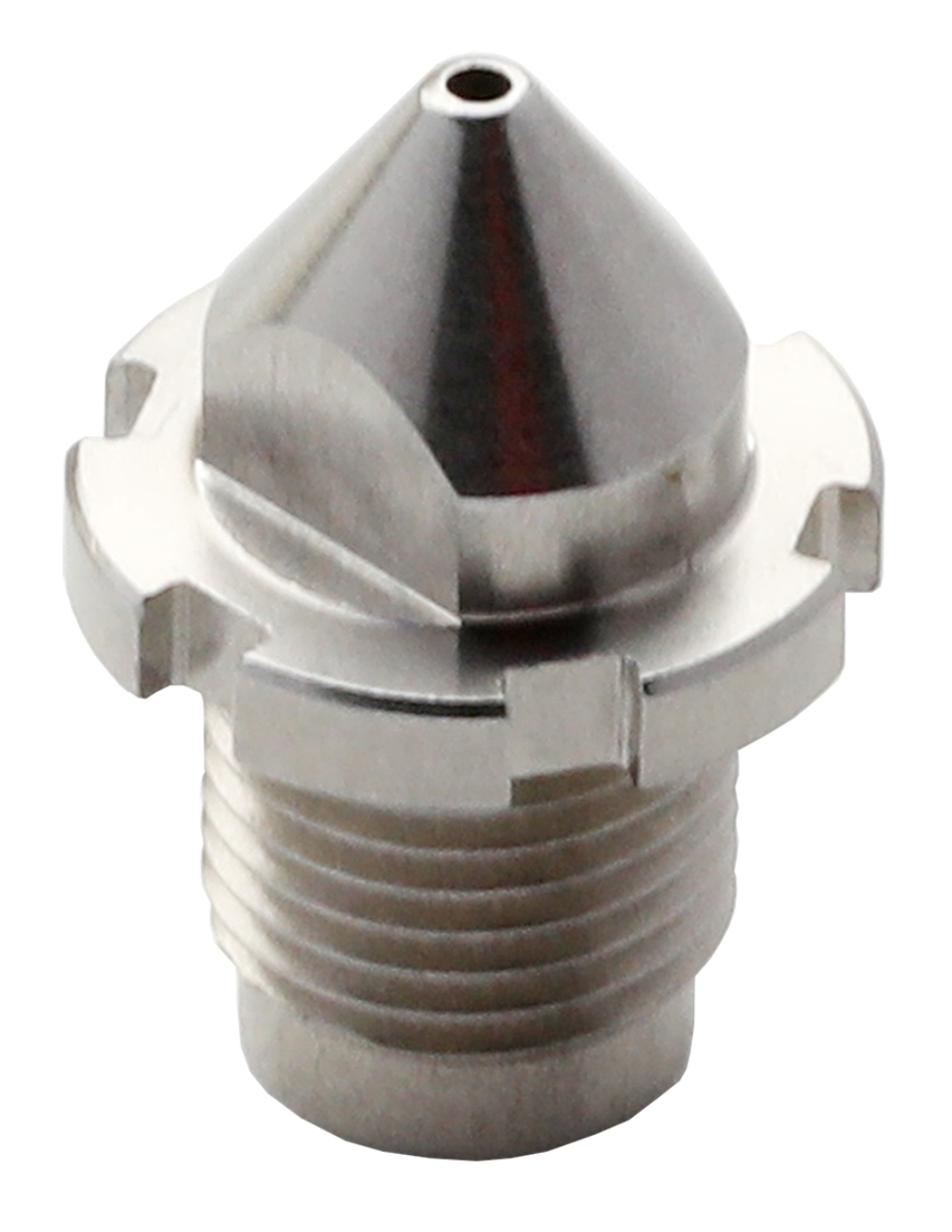

KLS (adhesive) Nozzles are suitable for the AXSPV Spray Valves in combination with KLS Nozzle Needles.
Material: Stainless steel
| Model | Nozzle inside diameter | Outside diameter x length | Wrench size | Article No. |
|---|---|---|---|---|
KLS nozzle KLS0.2 | 0.2 mm | 12 x 17.2 mm | 6 mm | 0010485 |
KLS nozzle KLS0.3 | 0.3 mm | 12 x 17.2 mm | 6 mm | 0010486 |
KLS nozzle KLS0.5 | 0.5 mm | 12 x 17.2 mm | 6 mm | 0009522 |
KLS nozzle KLS0.8 | 0.8 mm | 12 x 17.2 mm | 6 mm | 0010487 |
KLS nozzle KLS1.0 | 1.0 mm | 12 x 17.2 mm | 6 mm | 0010488 |
KLS nozzle KLS1.2 | 1.2 mm | 12 x 17.2 mm | 6 mm | 0010489 |
KLS nozzle KLS1.5 | 1.5 mm | 12 x 17.2 mm | 6 mm | 0010490 |
KLS nozzle KLS2.0 | 2.0 mm | 12 x 17.2 mm | 6 mm | 0010491 |
KLS nozzle KLS2.5 | 2.5 mm | 12 x 17.2 mm | 6 mm | 0010492 |
