Product information

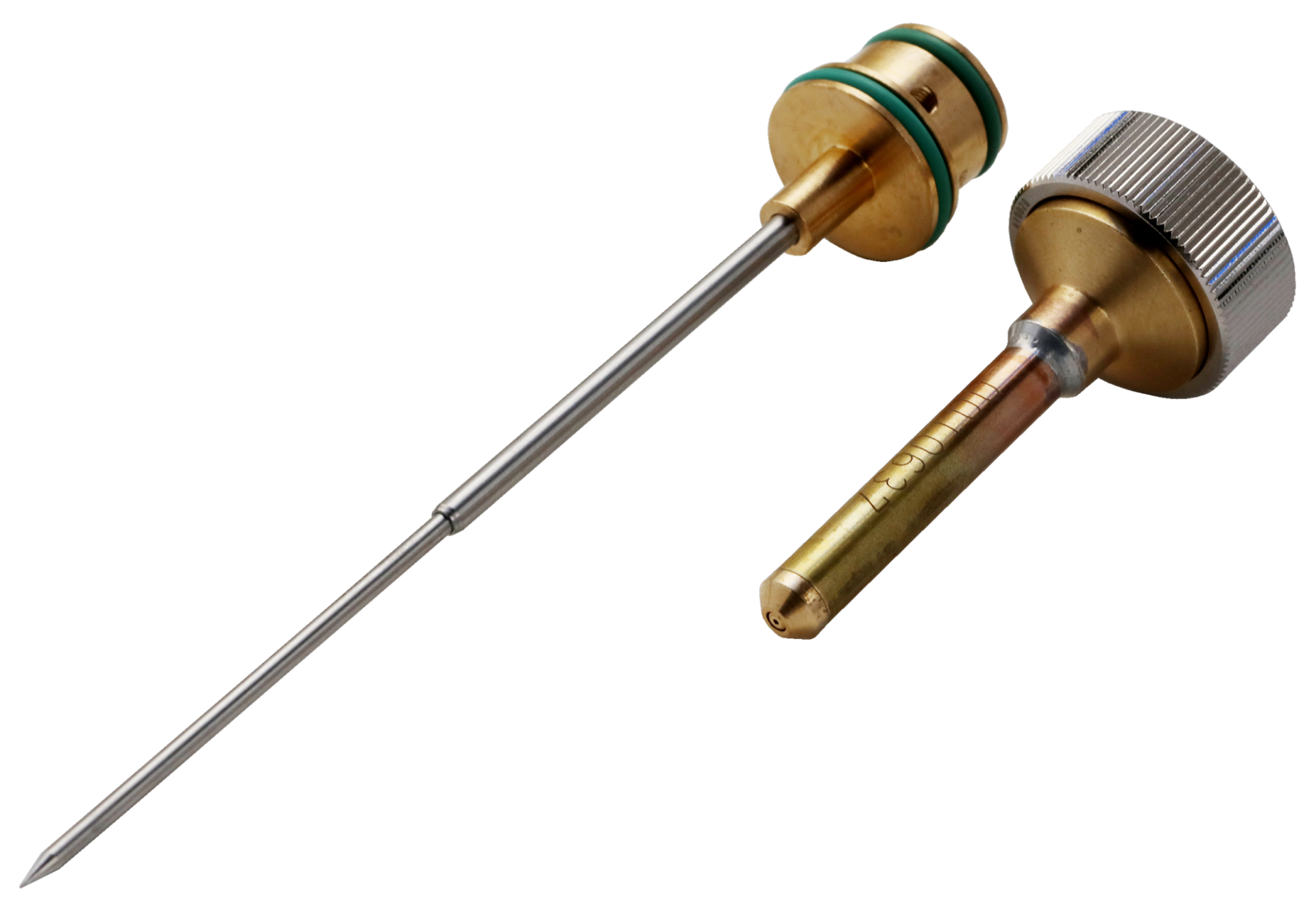

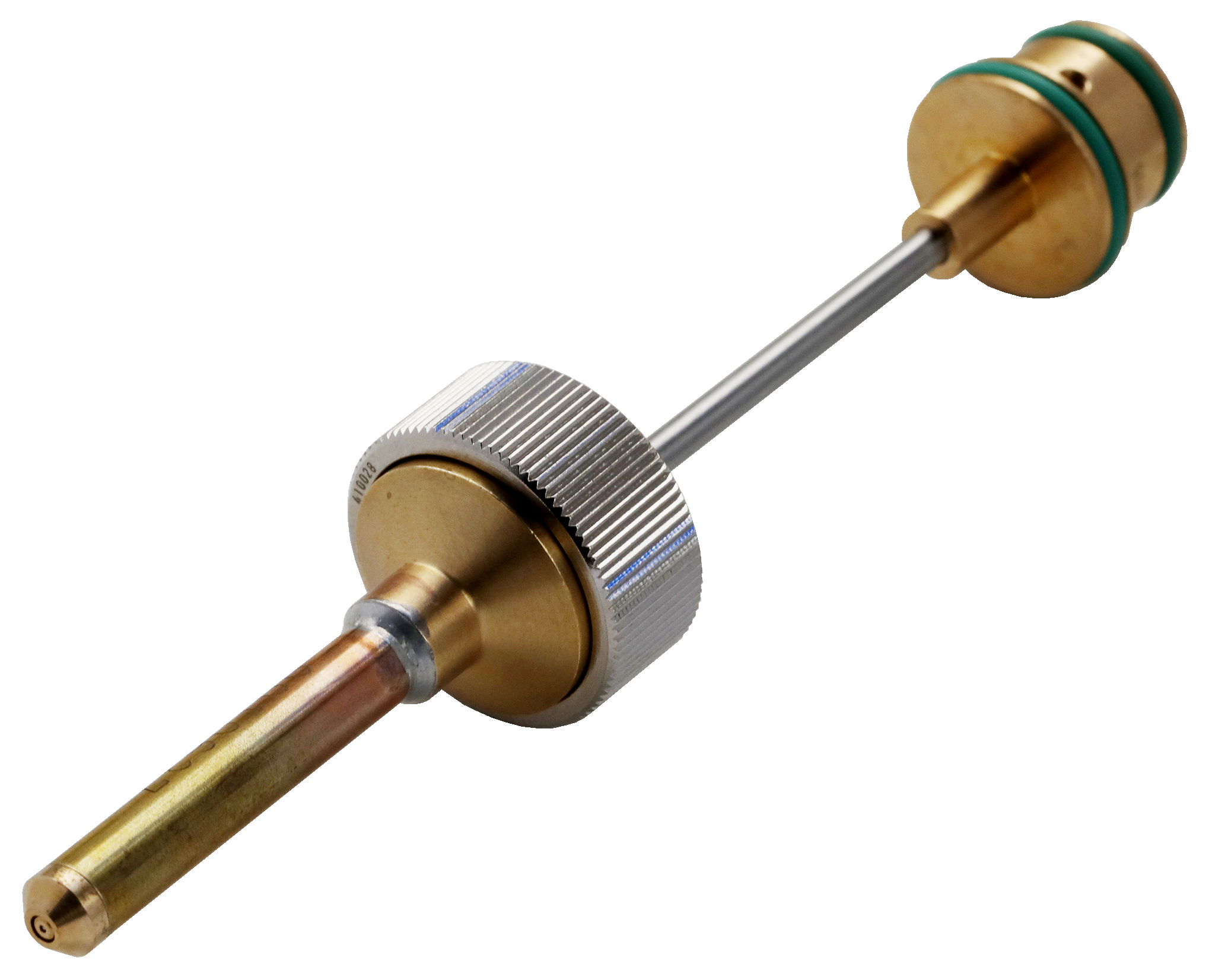

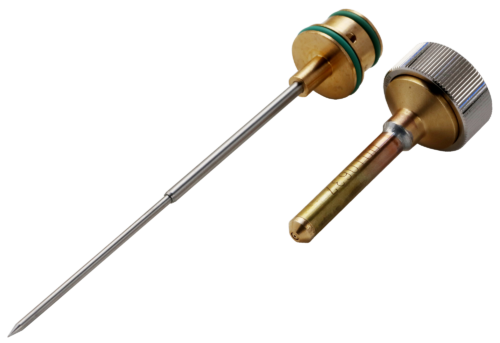

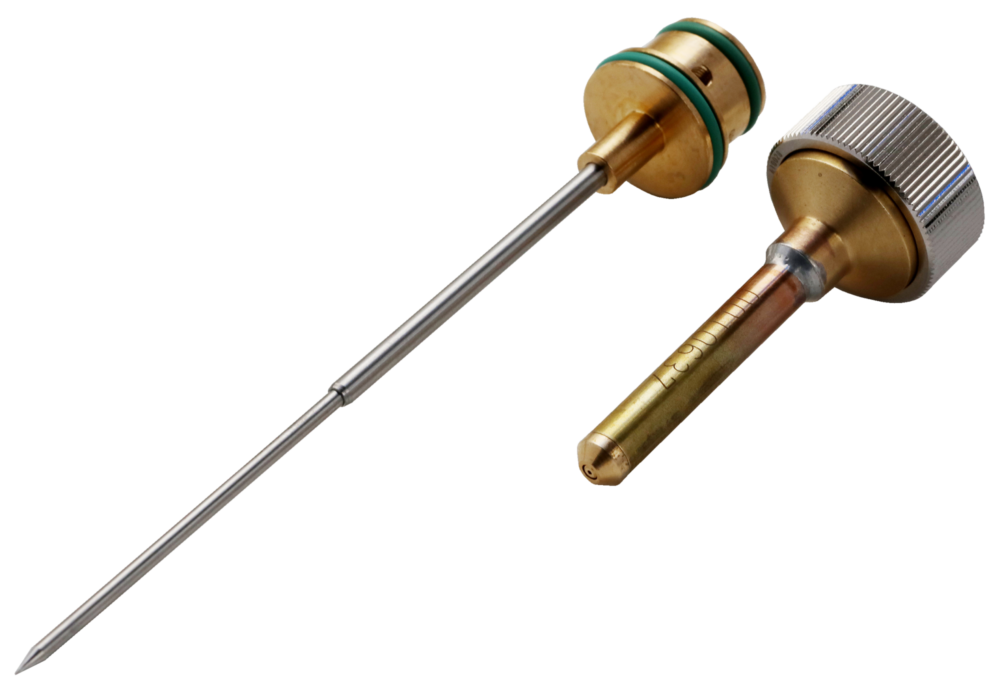

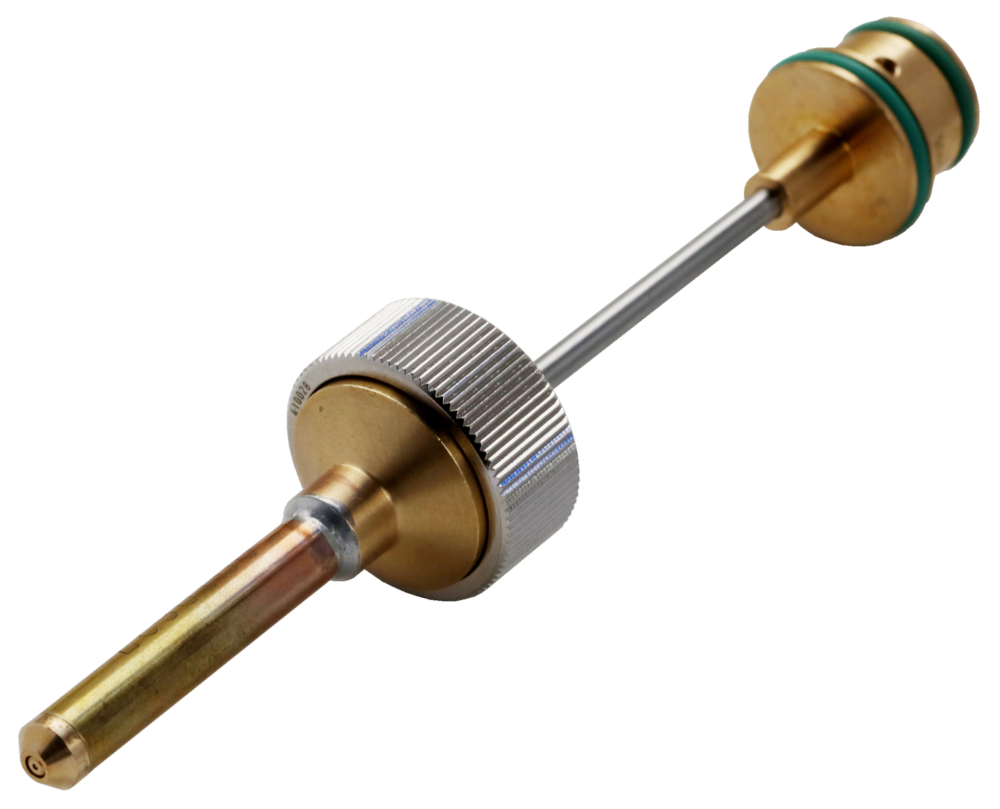

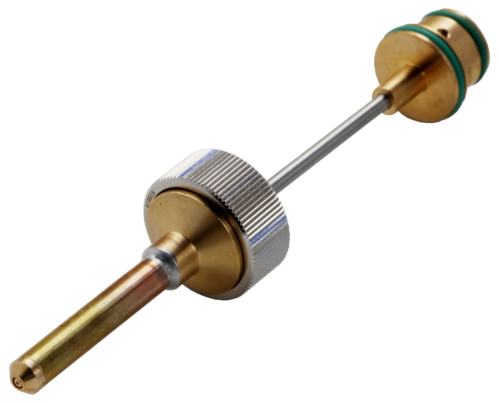

Nozzle Extension DVL, needle-sealing (ND0)
- Spray form: Round jet 15° (spraying straight ahead)
- No Nozzle holder required!
- Equipped with a KLS (adhesive) Nozzle
- Choice with or without Swirl Nozzle (S) 45°
The Nozzle Extension DVL, needle-sealing (ND0) have been specially developed for applications in which only very little space is available for installation in machines or robots, or where spraying must be carried out through or into very small openings.
The Needle-sealing Nozzle Extensions have very little dead space.
This means that even low-viscosity materials can be processed without the extensions running empty in the overhead position.
| Model | Nozzle outside diameter (D) | Nozzle length (L) | Outlet Nozzle bore (d) | Article No. |
|---|---|---|---|---|
DVL-ND0-D06-L050-KLS-RS015-B01x0.5-W000-A000-S00 | 6 mm | 50 mm | Ø 0.5 mm | 0010637 |
DVL-ND0-D06-L075-KLS-RS015-B01x0.5-W000-A000-S00 | 6 mm | 75 mm | Ø 0.5 mm | 0010638 |
DVL-ND0-D06-L100-KLS-RS015-B01x0.5-W000-A000-S00 | 6 mm | 100 mm | Ø 0.5 mm | 0010639 |
DVL-ND0-D08-L050-KLS-RS015-B01x0.5-W000-A000-S00 | 8 mm | 50 mm | Ø 0.5 mm | 0010644 |
DVL-ND0-D08-L075-KLS-RS015-B01x0.5-W000-A000-S00 | 8 mm | 75 mm | Ø 0.5 mm | 0010645 |
DVL-ND0-D08-L100-KLS-RS015-B01x0.5-W000-A000-S00 | 8 mm | 100 mm | Ø 0.5 mm | 0010646 |
| Model | Nozzle outside diameter (D) | Nozzle length (L) | Outlet Nozzle bore (d) | Article No. |
|---|---|---|---|---|
DVL-ND0-D06-L050-KLS-RS015-B01x0.5-W000-A000-S45 | 6 mm | 50 mm | Ø 0.5 mm | 0010640 |
DVL-ND0-D06-L075-KLS-RS015-B01x0.5-W000-A000-S45 | 6 mm | 75 mm | Ø 0.5 mm | 0010641 |
DVL-ND0-D06-L100-KLS-RS015-B01x0.5-W000-A000-S45 | 6 mm | 100 mm | Ø 0.5 mm | 0010642 |
DVL-ND0-D08-L050-KLS-RS015-B01x0.5-W000-A000-S45 | 8 mm | 50 mm | Ø 0.5 mm | 0010648 |
DVL-ND0-D08-L075-KLS-RS015-B01x0.5-W000-A000-S45 | 8 mm | 75 mm | Ø 0.5 mm | 0010649 |
DVL-ND0-D08-L100-KLS-RS015-B01x0.5-W000-A000-S45 | 8 mm | 100 mm | Ø 0.5 mm | 0010650 |
