Product information

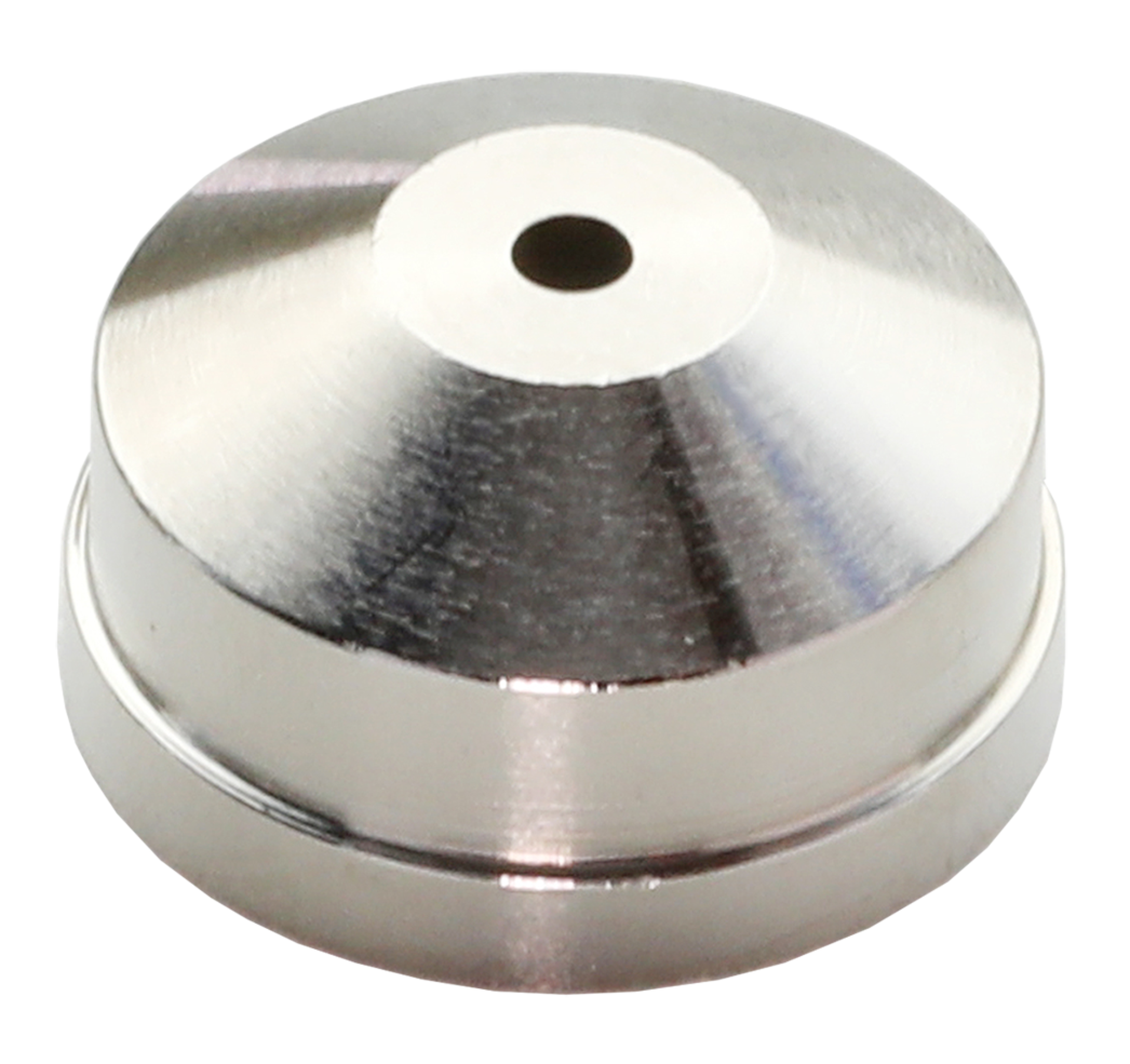

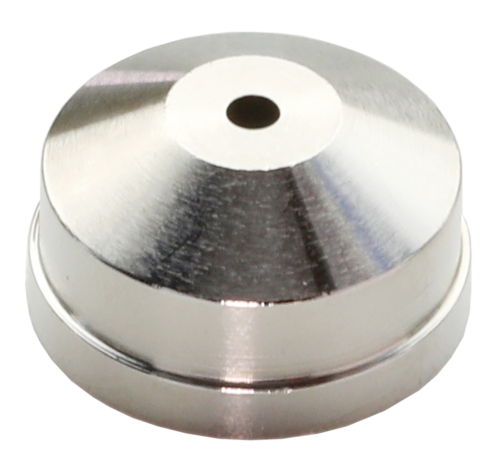

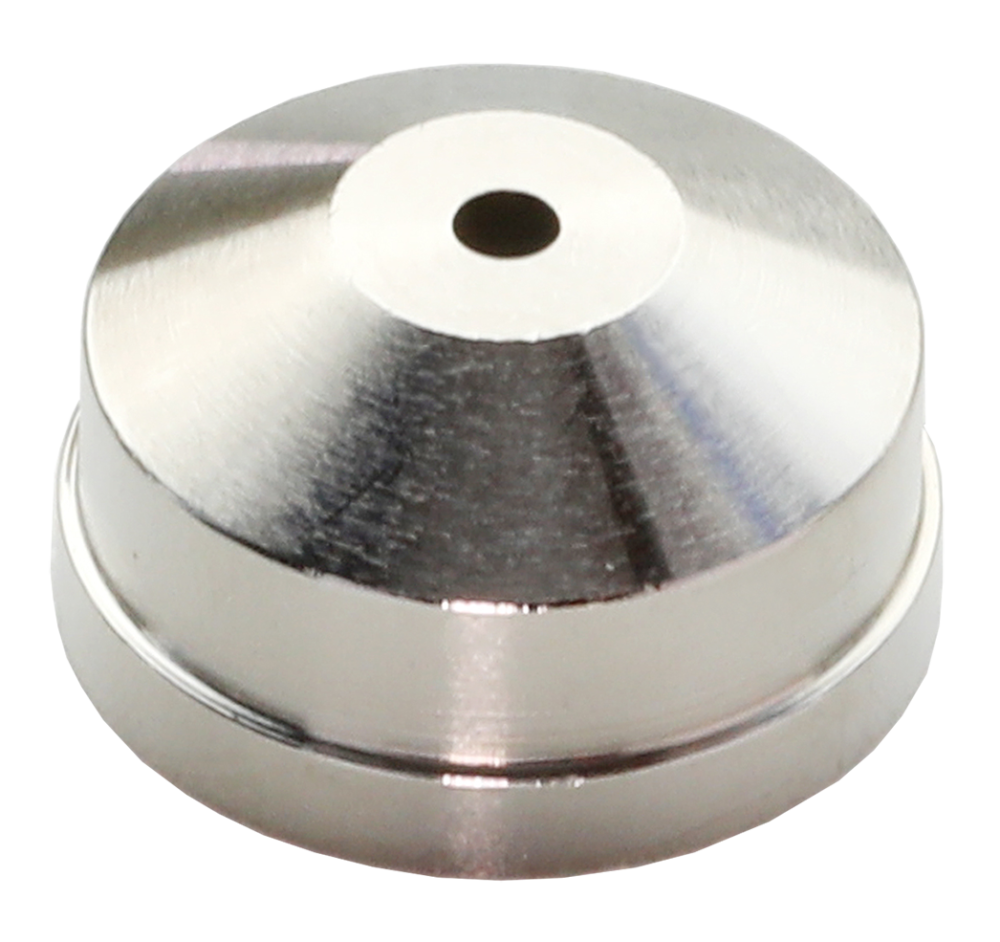

Air Caps KLS (adhesive) version is suitable for Volumetric Spray Valves AXDV-SPK and Spray Valves AXSPV.

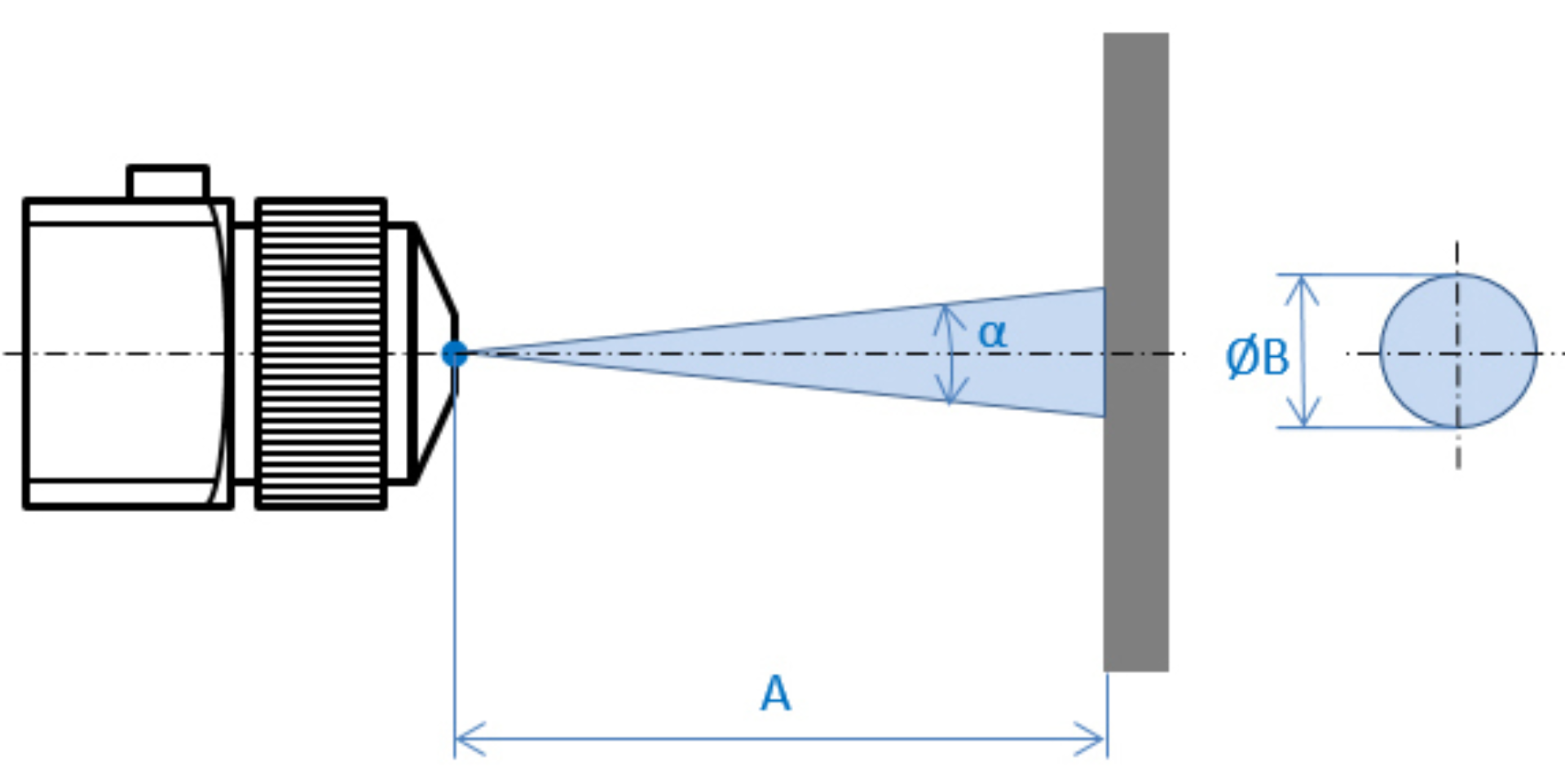

Spray form: Round jet
Spray angle α: 15°
Nozzle type: Spray Valve equipped with a KLS Nozzle
To attach the Air Cap to the Spray Valve, you need the Retaining Ring, Art.-no. 0004057.
This Retaining Ring is not included in the scope of delivery.
| Model | Spray form | Spray angle α | Spray diameter | Article No. |
|---|---|---|---|---|
LFK-RS015-KLS0.2-1.0 | Round jet | 15° | 0.2 - 1.0 mm | 0009521 |
LFK-RS015-KLS1.2-1.5 | Round jet | 15° | 1.2 - 1.5 mm | 0010526 |
LFK-RS015-KLS1.8-2.0 | Round jet | 15° | 1.8 - 2.0 mm | 0010527 |
LFK-RS015-KLS2.5 | Round jet | 15° | 2.5 mm | 0010528 |
