Product information

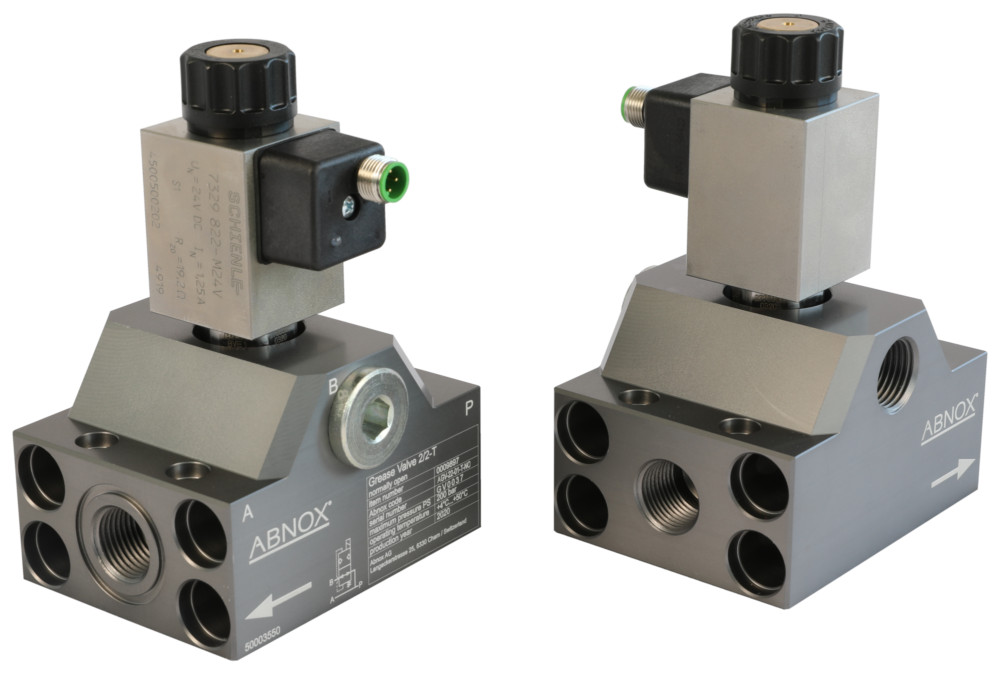

ABNOX Directional Control Valves are suitable for highly viscous media. These Directional Control Valves have a manual override.
The 2/2-way Valve models (Shut-off Valves and Outlet Valves) are normally spring-return open or closed, depending on the version. When 24 [VDC] is applied, the outlet is opened or closed. The basic body of the 2/2-way Valve model has a medium inlet (G 1/2") and a medium outlet (G 1/2").
In the normal state, the 3/2-way Valve model is spring-return open in the flow direction (through axis) and the side branches are closed. When 24 [VDC] is applied, the Valve switches the flow to the side outlets. The main body of the 3/2-way Valve model has one medium inlet (G 1/2") and three medium outlets (G 1/2").
All ABNOX Directional Control Valves are equipped with a 24 [VDC] / 1.17 [A] solenoid coil. The interface consists of a 4-pin M12 plug for the 24 [VDC] power supply.
2/2-Shut-off Valve AGV-2/2-01-NC (normally closed)
2/2-Shut-off Valve AGV-2/2-01-NO (normally open)
2/2-Outlet Valve AGV-2/2-01-T-NC (normally closed)
2/2-Outlet Valve AGV-2/2-01-T-NO (normally open)
3/2-Way Control Valve AGV-3/2-01
| Model | Construction type | Version | Article No. |
|---|---|---|---|
AGV-2/2-01-NC | 2/2 Shut-off Valve | Normal condition spring-reset closed (normally closed) | 0010100 |
AGV-2/2-01-NO | 2/2 Shut-off Valve | Normal condition spring-reset open (normally open) | On request |
AGV-2/2-01-T-NC | 2/2 Outlet Valve | Normal condition outlet spring-reset closed (normally closed) | On request |
AGV-2/2-01-T-NO | 2/2 Outlet Valve | Normal condition outlet spring-reset open (normally open) | 0009897 |
AGV-3/2-01 | 3/2-Way Control Valve | Normal condition spring-reset open in the flow direction | On request |
