Product information

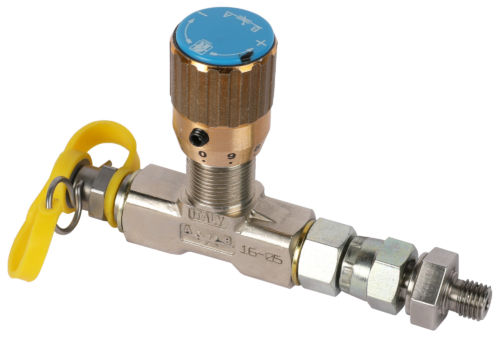

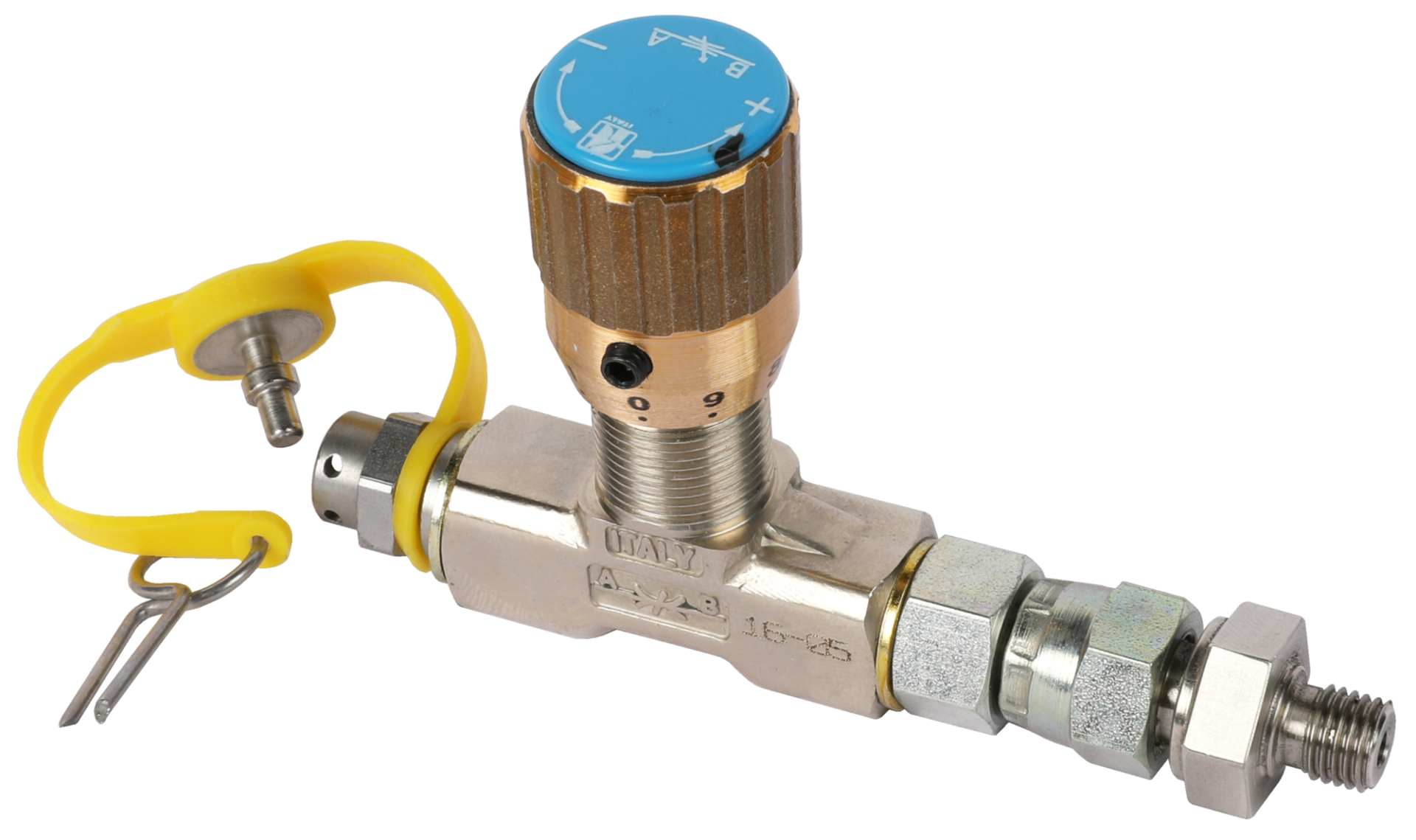

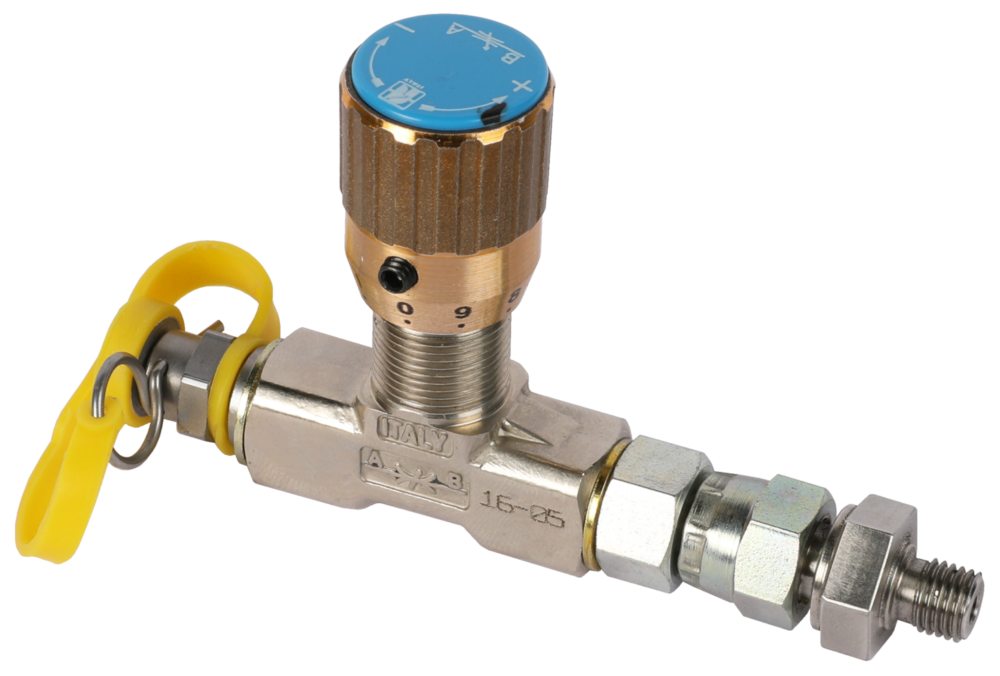

This Needle Throttle Valve influences the volume flow by means of an adjustable cross-sectional constriction.
This means that with this Needle Throttle Valve, which can be screwed directly onto an ABNOX Dosing Valve or Outlet Valve with PEN Handle, the throttle cross-section can be reduced or increased via an adjusting screw depending on the flow rate requirements.
Use on ABNOX Valve:
Metering Valve with Handgrip PEN, model AXDV-C1-PN and AXDV-C2-PN
Outlet Valve with Handgrip PEN, model AXDV-A1-PN
| Description | Quantity |
|---|---|
Needle Throttle Valve 210 bar DN 5,
connections female thread 1/8" BSP | 1 |
Screw seal | 2 |
Adapter with Minimess plug-in connection and
external thread 1/8" BSP AGR | 1 |
Adapter with union nut 1/8" BSP AGR - 1/8" BSP DKR | 1 |
Adapter with double nipple 1/8" BSP AGR - M8x1 AGR | 1 |
