Product information

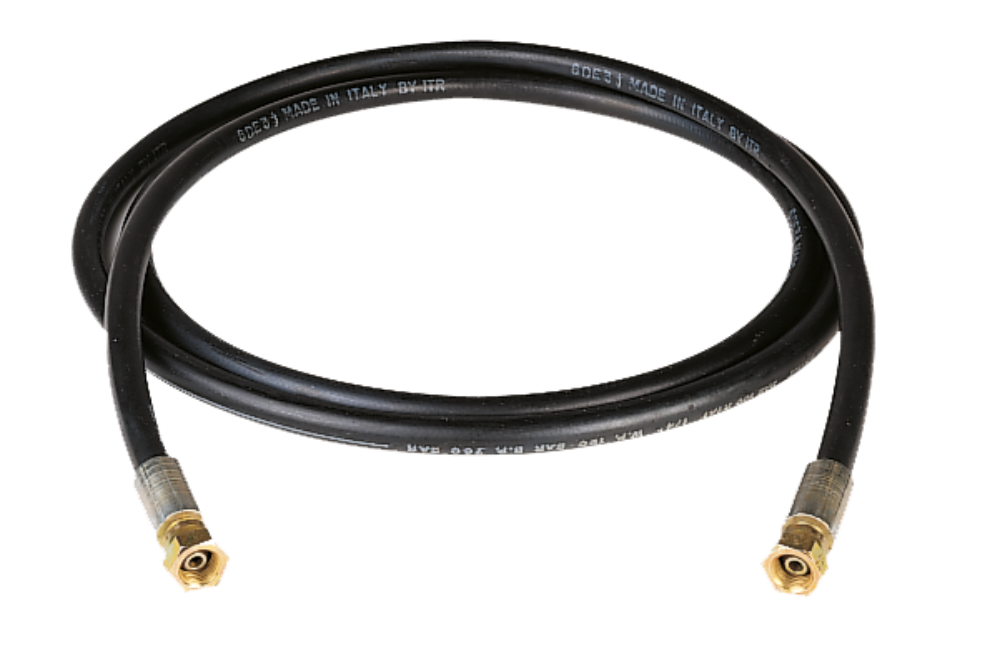

Hydraulic Hoses for Grease Supply Systems
With connection on both sides G 3/8" BSP (DKR): BSP union nut with 60° sealing taper (nipple with conical seal)
| Length (m) | Nominal size DN (mm) | Article No. |
|---|---|---|
1.5 | 10 | 4045100 |
2.0 | 6 | 4045101 |
2.5 | 10 | 4045200 |
4.0 | 6 | 4045400 |
10.0 | 6 | 4045500 |
Nominalsize DN
6 and 10 mm
Max. operatingpressure [bar]
400
Testpressure [bar]
800
Min. burstpressure [bar]
1600
