Product information

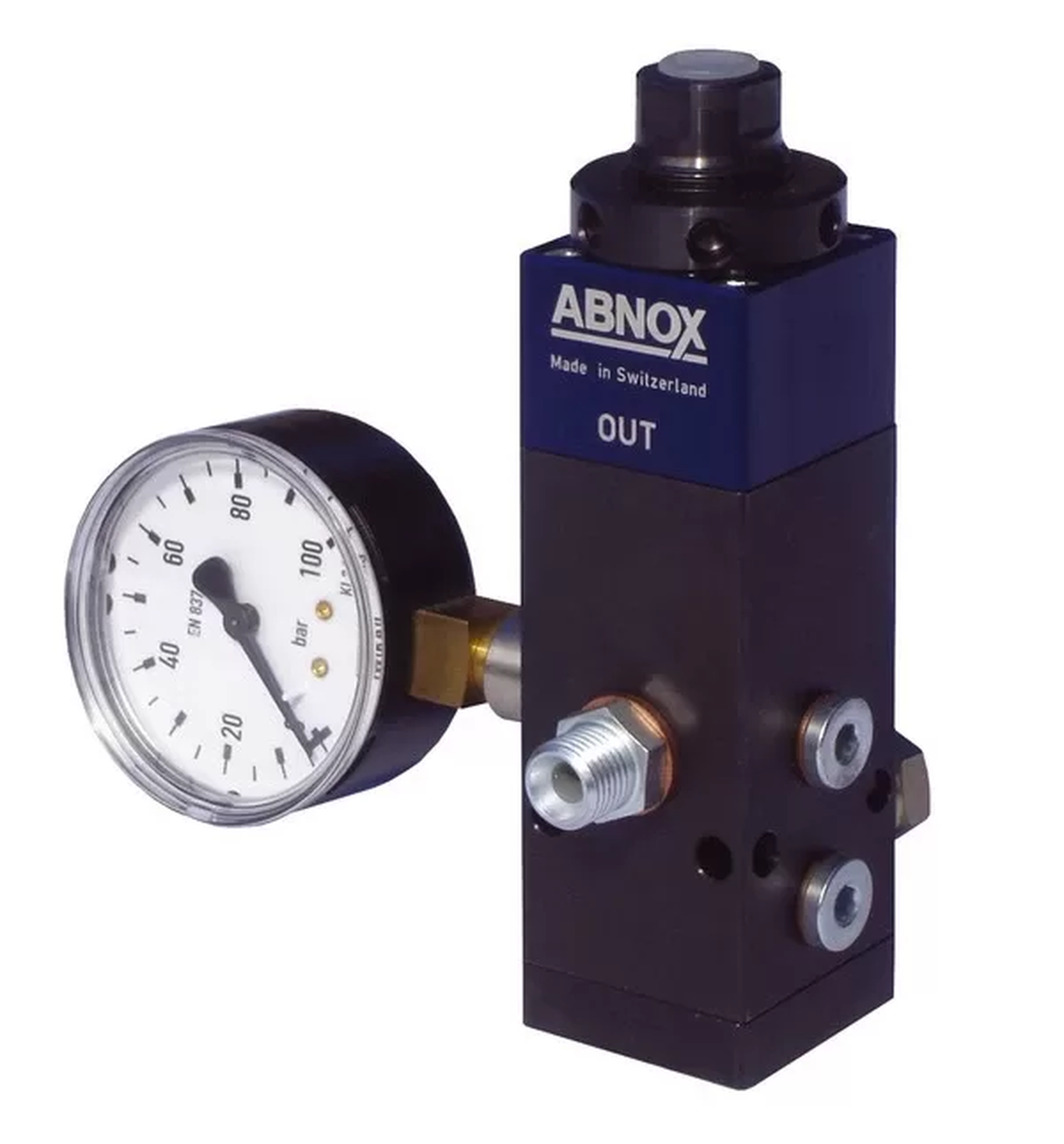

The material pressure regulator valve reduces and stabilizes material pressure.
The pressure regulator is designed for self lubricating mediums as grease and oil.
Plunger seals avoid penetration of the medium into the spring packing. The spring packing provides stepless output pressure regulation.
A strainer (60 Mesh) is fitted into the inlet to keep impurities in the material from entering the valve.
To select the right outlet pressure turn the pressure adjustment screw. With the lock nut the position of the pressure adjustment screw can be adjusted.
The material pressure regulator can optionally be ordered with or without the feed pressure gauge.
Container size [kg]
40x40x150mm (without pressure gauge)
"M" Material pressure [bar]
5 x outlet pressure, max. 250 bar
Connection external thread
1/4'' BSP
