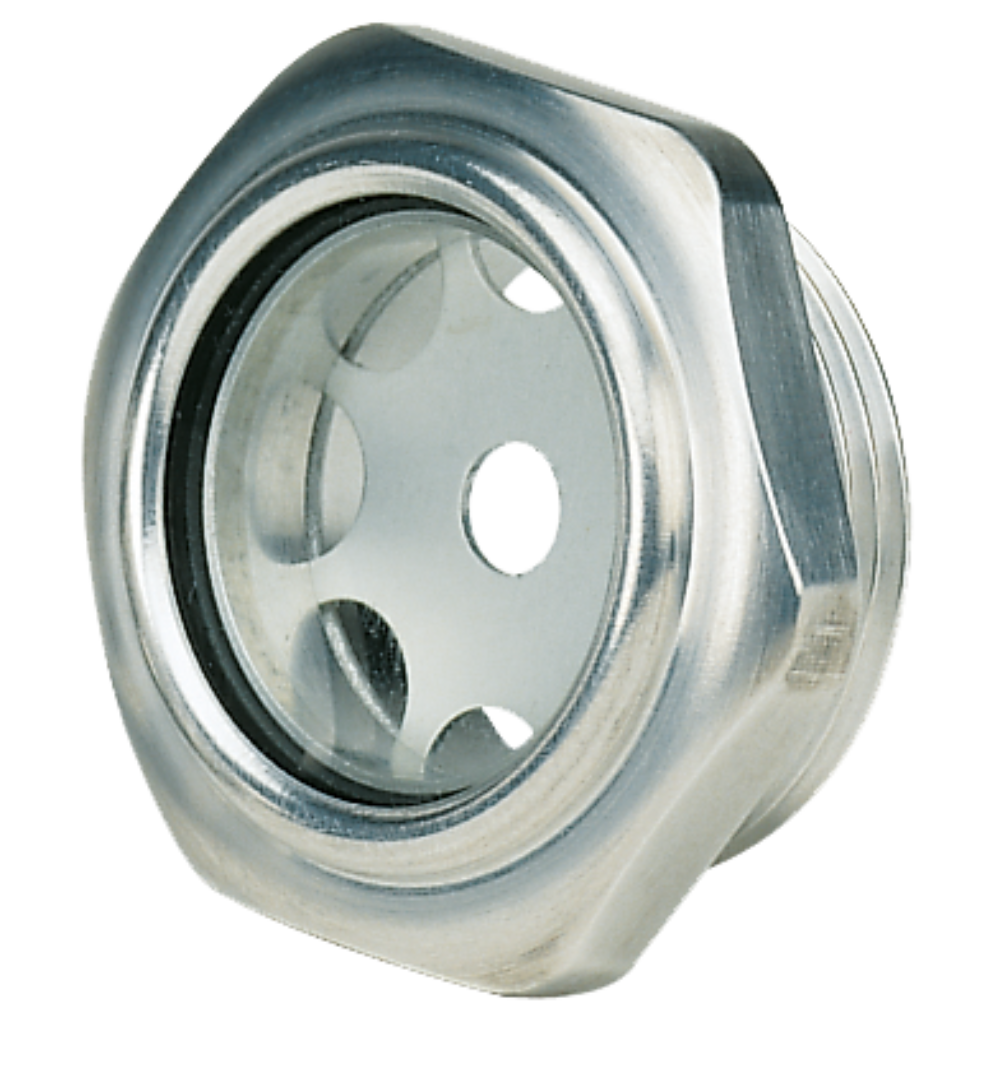

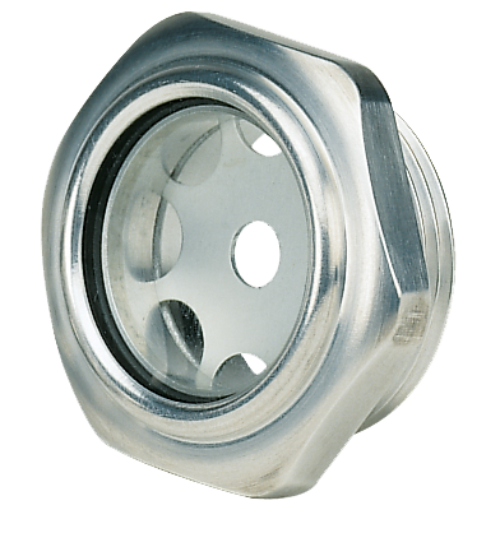

Product information
| Connection external thread | Reflector | Width across flats [mm] | Tightening torque [Nm] | "PU" Packaging unit | Article No. |
|---|---|---|---|---|---|
1/4" BSP | Without Sight Star | 17 | 8 +/-20% | 100 pieces | 2124500 |
1/4" BSP | With Sight Star | 17 | 8 +/-20% | 100 pieces | 2124502 |
3/8" BSP | With Sight Star | 22 | 20 +/-30% | 100 pieces | 2125000 |
1/2" BSP | With Sight Star | 27 | 40 +/-30% | 100 pieces | 2125500 |
3/4" BSP | With Sight Star | 32 | 50 +/-30% | 100 pieces | 2126000 |
1" BSP | With Sight Star | 41 | 90 +/-30% | 100 pieces | 2126500 |
1 1/4" BSP | With Sight Star | 50 | 200 +/-30% | 50 pieces | 2127000 |
1 1/2" BSP | With Sight Star | 55 | 220 +/-30% | 50 pieces | 2127500 |
2" BSP | With Sight Star | 70 | 500 +/-30% | 25 pieces | 2128000 |
| Description | Data |
|---|---|
Max. operating pressure [bar] | 4 |
Min. / max. operating temperature [°C] | -20 / +100 |
Application medium specification | Mineral oil |
Material Body (Housing) | Aluminium 6-kant |
Material Viewing window | Naturglas |
Seal Glass | O-Ring NBR |
Seal Thread | Tesnit® Ring BA50 |
Dimensioned Sketch 2124500
Dimensioned Sketch 2124502
Dimensioned Sketch 2125000
Dimensioned Sketch 2125500
Dimensioned Sketch 2126000
Dimensioned Sketch 2126500
Dimensioned Sketch 2127000
Dimensioned Sketch 2127500
Dimensioned Sketch 2128000
3D Data 2124500
stp
3D Data 2124502
stp
3D Data 2125000
stp
3D Data 2125500
stp
3D Data 2126000
stp
3D Data 2126500
stp
3D Data 2127000
stp
3D Data 2127500
stp
3D Data 2128000
stp
