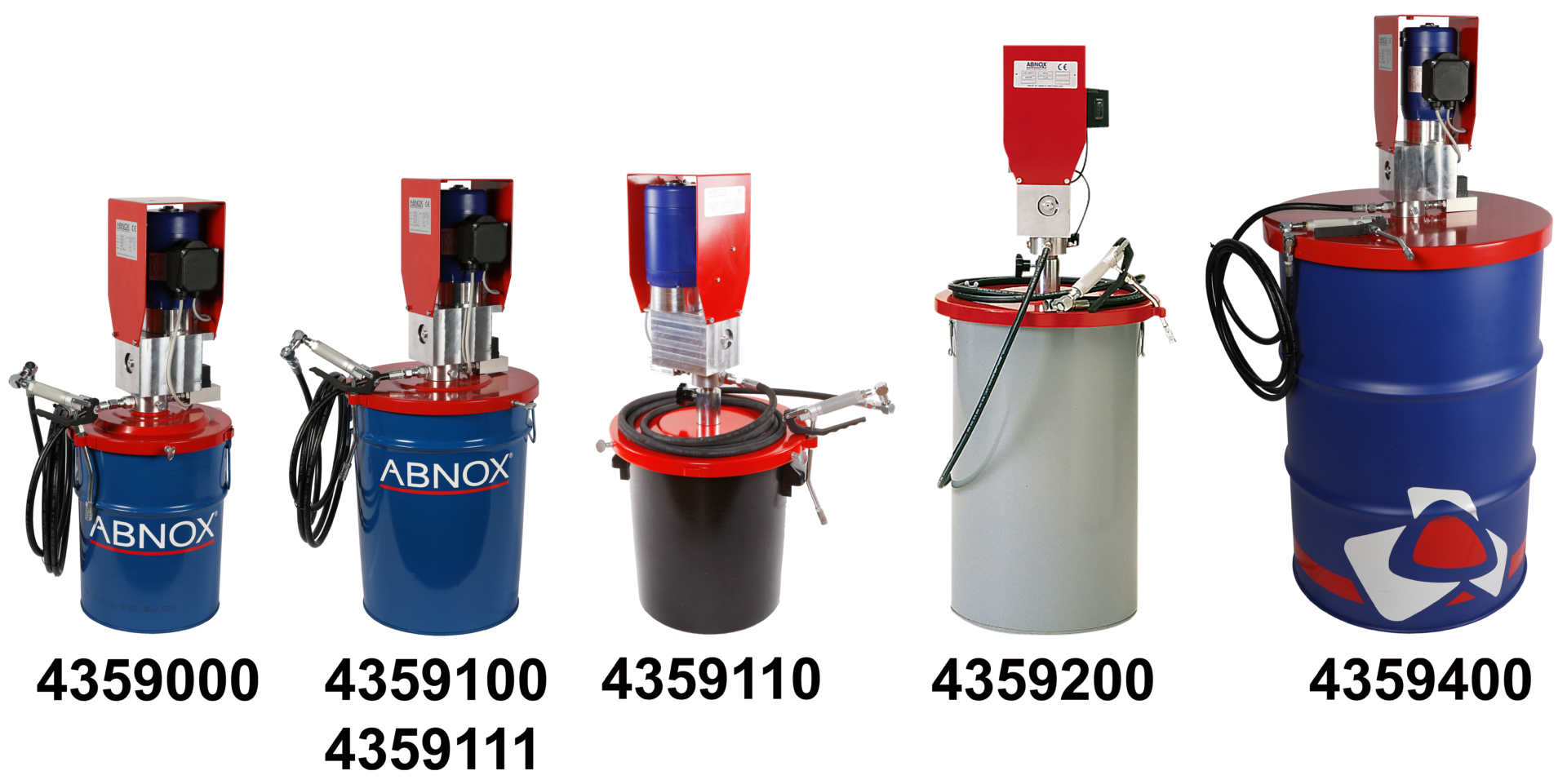

The ABNOX Electric Lubrication Unit AX-2000 permits perfect lubrication in places without a compressed air supply. This Electric Lubrication System works extremely quietly and enables convenient, fast and safe lubrication of lubrication points without noise protection.
This Lubrication Equipment is equipped with a High-pressure Hose including a Lubrication Gun with Z-Swivel, a Rigid Feed Tube and a Hydraulic Connector.
These Lubrication Systems are used for cylindrical and conical Containers.
Remark:
Please note the models without Protection Container (Art.-No.: 4359110, 4359200 and 4359400)
The figure, see selection, shows the original container of the lubricant manufacturer or supplier.
The pictured Container is not included in the scope of delivery.
This model is therefore supplied disassembled with the individual elements!
| Container size [kg] | Container design | Container internal dia. [mm] | Container height [mm] | Version | Article No. |
|---|---|---|---|---|---|
14 - 18 | Cylindrical | 255 - 280 | 370 | With conical Protection Container | 4359000 |
20 - 25 | Cylindrical | 290 - 330 | 470 | With conical Protection Container | 4359100 |
20 | Conical | 260 - 290 | 470 | With conical Protection Container | 4359111 |
25 | Conical | 306 - 335 | 470 | Without Protection Container | 4359110 |
50 | Cylindrical | 350 - 410 | 640 | Without Protection Container | 4359200 |
180 | Cylindrical | 560 -600 | 870 | Without Protection Container | 4359400 |
You will find the component parts to this Electric Lubrication Systems in accessories!
| Electric Lubrication System | AX-2000-1-M-4327000-S-060-P / 14 - 18 kg | AX-2000-2-M-4327100-S-060-P / 20 - 25 kg | AX-2000-2-M-4326002-S-060-P / conical 20 kg |
|---|---|---|---|
Article No. | 4359000 | 4359100 | 4359111 |
Container size [kg] | 14 - 18 | 20 - 25 | 20 |
Container internal dia. [mm] | 255 - 280 | 290 - 330 | 260 - 290 |
Container height [mm] | 370 | 470 | 470 |
Suction Tube dia. [mm] | 32 | 32 | 32 |
Suction Tube length [mm] | 374 | 477 | 477 |
Protection Container internal dia. [mm] | 285 - 300 (conical) | 337 - 375 (conical) | 337 - 375 (conical) |
Protection Container internal height [mm] | 380 | 480 | 480 |
Input medium specification | Lubricants up to NLGI 2 / 5‘000 mPa.s | Lubricants up to NLGI 2 / 5‘000 mPa.s | Lubricants up to NLGI 2 / 5‘000 mPa.s |
Delivery rate at pump outlet [cm3/min] | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) |
Max. workingpressure medium outlet [bar] | 200 | 200 | 200 |
Connection medium outlet external thread | 1/4'' BSP | 1/4'' BSP | 1/4'' BSP |
Starting Current [A] | 15 | 15 | 15 |
Nominalcurrent [A] | 5 | 5 | 5 |
Frequency [Hz] | 50 / 60 | 50 / 60 | 50 / 60 |
Power [kW] | 0.40 | 0.40 | 0.40 |
Voltage [V DC] | 230 | 230 | 230 |
Duty Cycle [%] | 100 | 100 | 100 |
Protectionclass | IP 55 / DIN 40050 | IP 55 / DIN 40050 | IP 55 / DIN 40050 |
Min. / max. operating temperature [°C] | 10 / 40 | 10 / 40 | 10 / 40 |
| Electric Lubrication System | AX-2000-2-M-4326000-0-060-P / conical 25 kg | AX-2000-3-M-4327200-0-060-P / 50 kg | AX-2000-4-M-4327300-0-060-P / 180 kg |
|---|---|---|---|
Article No. | 4359110 | 4359200 | 4359400 |
Container size [kg] | 25 | 50 | 180 |
Container internal dia. [mm] | 306 - 335 | 350 - 410 | 560 - 600 |
Container height [mm] | 470 | 640 | 870 |
Suction Tube dia. [mm] | 32 | 32 | 32 |
Suction Tube length [mm] | 477 | 724 | 849 |
Input medium specification | Lubricants up to NLGI 2 / 5‘000 mPa.s | Lubricants up to NLGI 2 / 5‘000 mPa.s | Lubricants up to NLGI 2 / 5‘000 mPa.s |
Delivery rate at pump outlet [cm3/min] | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) | 280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature) |
Max. workingpressure medium outlet [bar] | 200 | 200 | 200 |
Connection medium outlet external thread | G 1/4'' | G 1/4'' | G 1/4'' |
Starting Current [A] | 15 | 15 | 15 |
Nominalcurrent [A] | 5 | 5 | 5 |
Frequency [Hz] | 50 / 60 | 50 / 60 | 50 / 60 |
Power [kW] | 0.40 | 0.40 | 0.40 |
Voltage [V DC] | 230 | 230 | 230 |
Duty Cycle [%] | 100 | 100 | 100 |
Protectionclass | IP 55 / DIN 40050 | IP 55 / DIN 40050 | IP 55 / DIN 40050 |
Min. / max. operating temperature [°C] | 10 / 40 | 10 / 40 | 10 / 40 |
Dimensioned Sketch 4359000
Dimensioned Sketch 4359100
Dimensioned Sketch 4359111
Dimensioned Sketch 4359110
Dimensioned Sketch 4359200
Dimensioned Sketch 4359400
Spare Parts List Equipment 4359000
Spare Parts List Equipment 4359100
Spare Parts List Equipment 4359111
Spare Parts List Equipment 4359110
Spare Parts List Equipment 4359200
Spare Parts List Equipment 4359400
Spare Parts kit Drive/Motor
Spare Parts Kit Suction System
Operating Manual
