Product information

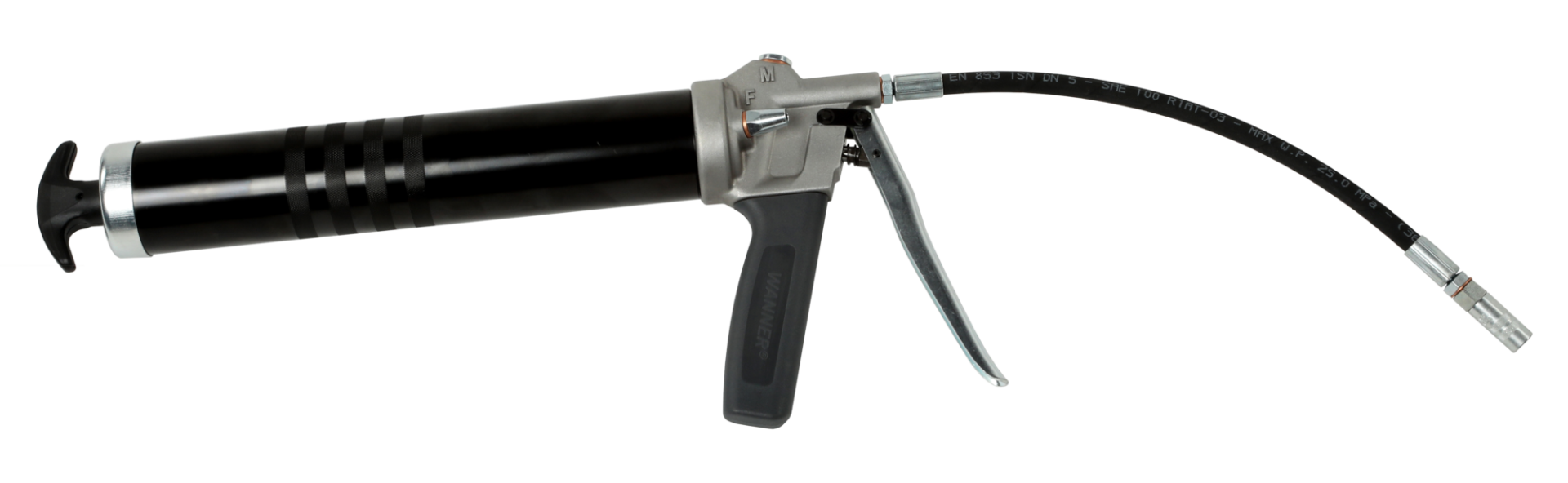

The One-hand Pump, Art. no. 3065101, is equipped with a replaceable conical Filler Cap with integrated Non-return Valve.
The One-hand Pump, Art. no. 3065201, on the other hand, is equipped with a cylindrical Filler Cap in accordance with DIN 1283, also with an integrated Non-return Valve.
Both models are ideal for separate filling with manual or Air-operated Filler Pump.
| Capacity Cylinder [cm3] | Design | Filler Cap | Connection Medium Outlet | SET Version | Article No. |
|---|---|---|---|---|---|
400 / 500 | Piston rod | Conical | 1/8'' BSP internal thread | Hose with Connector | 3065101 |
400 / 500 | Piston rod | Cylindrical
DIN 1283 | 1/8'' BSP internal thread | Hose with Connector | 3065201 |
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article-No. |
|---|---|
Pump Head complete with Filler Cap conical | 0005619 |
Pump Head complete with Filler Cap cylindrical DIN 1283 | 0005620 |
Piston Rod complete | 3819504 |
Cylinder complete | 3819500 |
Seal Kit Cylinder | 3083200 |
Capacity cylinder [cm3]
400 / 500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling by hand or with filling machine
YES / 500 g
Input medium specification
Lubricants up to NLGI 2 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.5
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium outlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.857
Dimensioned Sketch One-hand Pump 3065101
Dimensioned Sketch One-hand Pump 3065201
Spare Parts List One-hand Pump 3065101
Spare Parts List One-hand Pump 3065201
Spare Parts List Pump Head 0005619
Spare Parts List Pump Head 0005620
Spare Parts List Piston rod complete 3819504
Spare Parts List Cylinder complete 3819500
Seal Kit Cylinder 3083200
Instruction Manual ABNOX WANNER® 400/500 cm3
