Product information

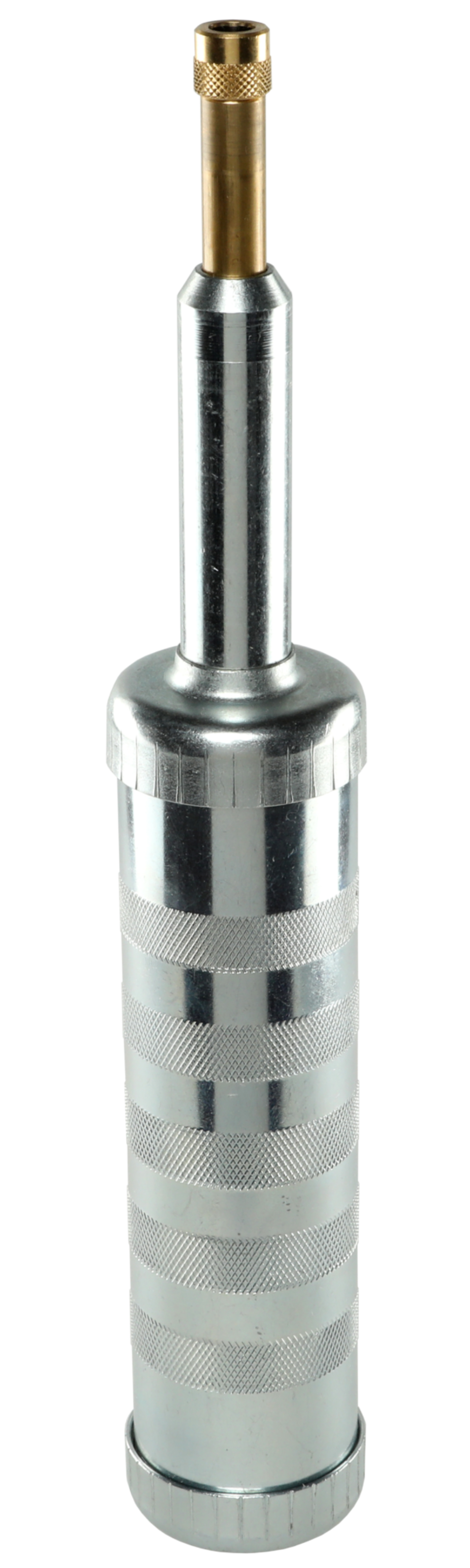

Mineral Oil Hand Push Pump 120 cm3 with Concave Nozzle
Connection medium outlet: 1/8" BSP internal thread.
This Hand Push Pump is delivered with a Concave Nozzle (Article-No. 3841000)
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article-No. |
|---|---|
Seal Kit | 3084200 |
Capacity cylinder [cm3]
120
Cylinder external dia. [mm]
40
Cylinder length [mm]
150
Total height [mm]
270
Area of application for greasenipples type
H
Filling by hand or with filling machine
Only hand filling
Input medium specification
Mineral oil
Delivery rate per stroke [cm3]
0.6
Max. pressure [bar]
150
Connection medium outlet external thread
1/8'' BSP
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
0.364
