Product information

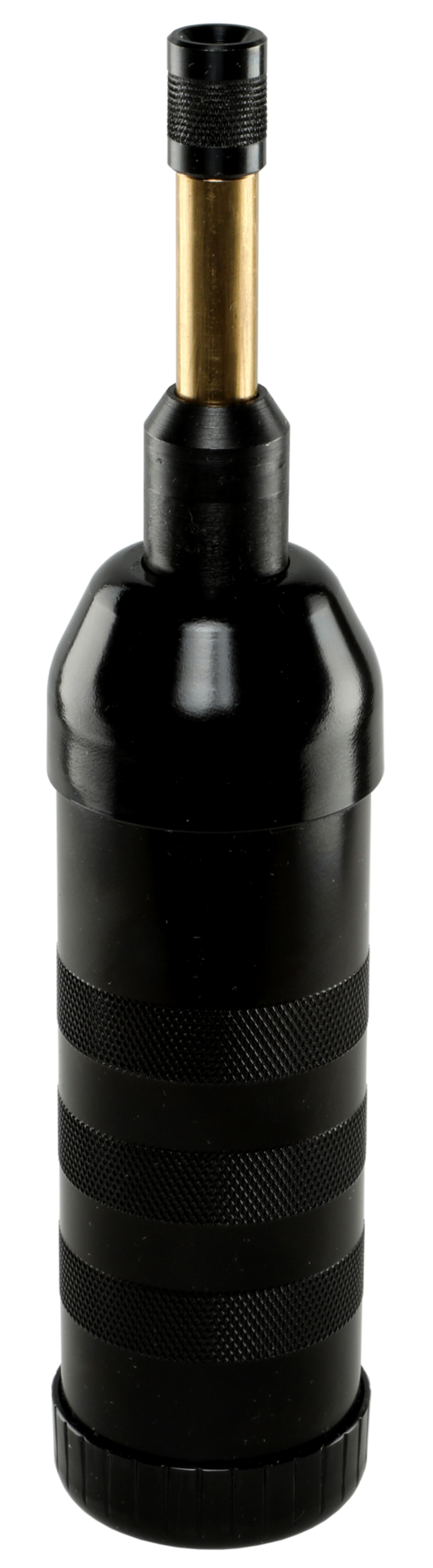

Grease Hand Push Pump 120 cm3 with Universal Nozzle
Connection medium outlet: 1/8" BSP internal thread.
This Hand Push Pump is delivered with a Universal Nozzle (Article-No. 3845500)
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article-No. |
|---|---|
Seal Kit | 3083600 |
Capacity cylinder [cm3]
120
Cylinder external dia. [mm]
40
Cylinder length [mm]
110
Total height [mm]
295
Area of application for greasenipples type
H
Filling by hand or with filling machine
YES***
Description
*** = Bulk filling is possible by using an ABNOX filler pump with a ABNOX filling plate, Article-No. 4936600
Input medium specification
Lubricants up to NLGI 2 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.6
Max. pressure [bar]
150
Connection medium outlet external thread
1/8'' BSP
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
0.395
