Product information

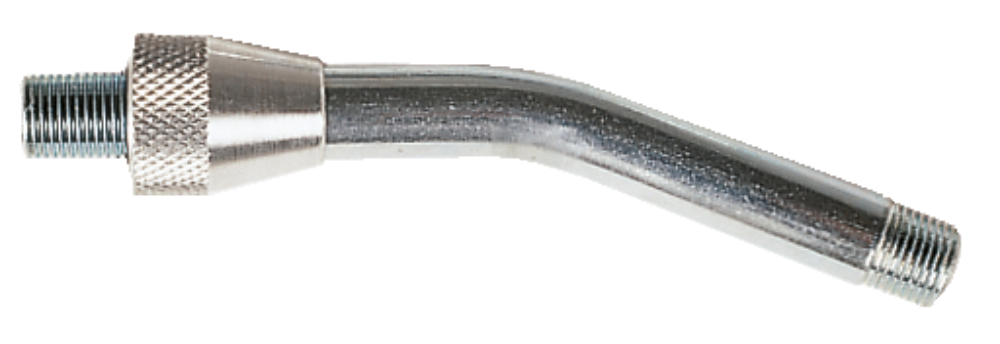

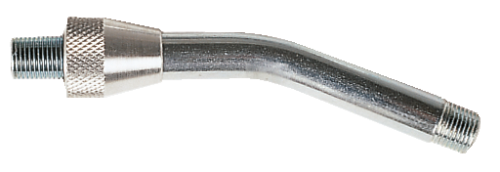

Angled Rigid Feed Tube with knurled nut for Lubrication Equipments:
- ABNOX Lubrication Equipments
- ABNOX Grease Pumps MURALT / ABNOX WANNER® / mINI WANNER®
Suitable for no tools required for mounting, the knurled nut allows tightening or loosening by hand, about to adjust the tube with version angled in any desired direction.
Optimal sealing provided by an O-Ring inside the nut.
| Connection external thread | Length [mm] | Knurled Nut external dia. [mm] | Operating pressure [bar] | Max. Pressure [bar] | Article No. |
|---|---|---|---|---|---|
1/8" BSP | 180 | 17 | 400 | 600 | 3549300 |
M10 x 1 | 180 | 17 | 400 | 600 | 3549900 |
1/8" BSP | 450 | 17 | 400 | 600 | 3548600 |
