Product information

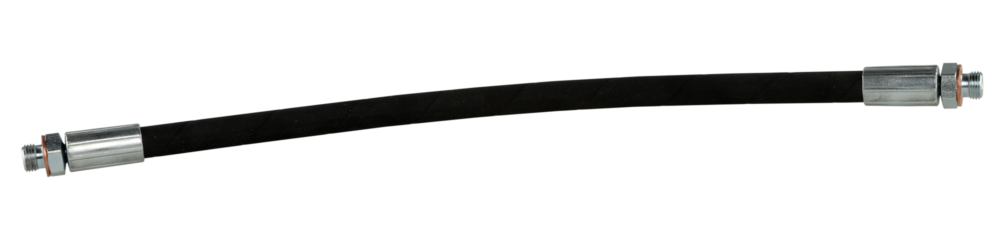

Flexible High Pressure Hose DN 5 mm / 400 bar, with 2 Connecting Nipples (cylindrical pipe thread) for Lubrication Equipments:
- ABNOX Lubrication Equipments
- ABNOX Grease Pumps MURALT / ABNOX WANNER® / mINI WANNER®
| Connection external thread | Width across flats [mm] | Length [mm] | Operating pressure [bar] | Max. Pressure [bar] | Article No. |
|---|---|---|---|---|---|
1/8" BSP | 14 | 210 | 400 | 600 | 3519400 |
1/8" BSP | 14 | 250 | 400 | 600 | 3519000 |
1/8" BSP | 14 | 325 | 400 | 600 | 3519100 |
1/8" BSP | 14 | 400 | 400 | 600 | 3519200 |
1/8" BSP | 14 | 500 | 400 | 600 | 3519300 |
1/8" BSP | 14 | 700 | 400 | 600 | 3519500 |
1/8" BSP | 14 | 1000 | 400 | 600 | 3519600 |
