Product information
| Standard Lubricating Gun without Elements | With Rigid Angled Feed Tube and Four-piece Hydraulic Connector | With Z-Swivel | With Grease Meter | Article No. |
|---|---|---|---|---|
YES | NO | NO | NO | 4850000 |
YES | YES | NO | NO | 4850500 |

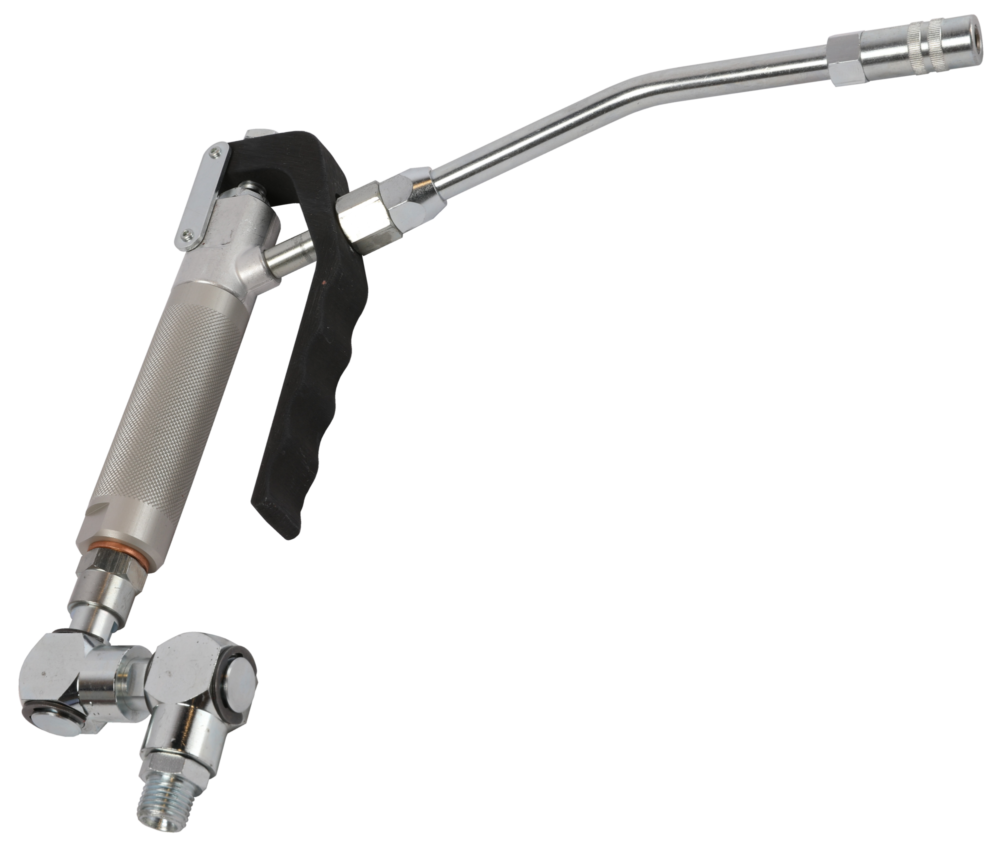

YES | YES | YES | NO | 4851000 |
YES | YES | YES | YES | 4851200 |
The Grease Meter (Article-No. 2404300) can be mounted on the Drum Hand-operated Pump or a Lubrication Equipment 60:1, respectively a Lubricating Gun fed by an external Device.
A simple push on a button will set the Meter at zero and the metering can be started. The result is shown in large (9 mm) and clear digits. The result can by expressed in ccm, g, oz or fl oz (Fluid ounce). Regardless of which units are used, the Grease Meter can be calibrated to shown a precise reading.
| Elements | Article No. |
|---|---|
Rigid Angled Feed Tube, length = 180 mm, Connector 1/8'' BSP, with Four-piece Hydraulic Connector EXCELLENT, external dia. 14 mm, length = 40 mm | 3549800 |
| Z-Swivel, both side connection 1/4'' BSP | 4824300 |
| Grease Meter, connection 1/8'' BSP | 2404300 |
Input medium specification
Schmierstoffe bis NLGI 3 / 5'000 mPa s.
Connection medium inlet internal thread
G 1/4'' (AGR - mit Dichtkegel 60°, gerade)
Connection medium outlet internal thread
G 1/8"
Dimensioned Sketch 4850000
Dimensioned Sketch 4850500
Dimensioned Sketch 4851000
Dimensioned Sketch 4851200
Spare Parts List 4850000
Spare Parts List 4850500
Spare Parts List 4851000
Spare Parts List 4851200
Seal Kit 4822510 for all Lubricating Guns
