Product information

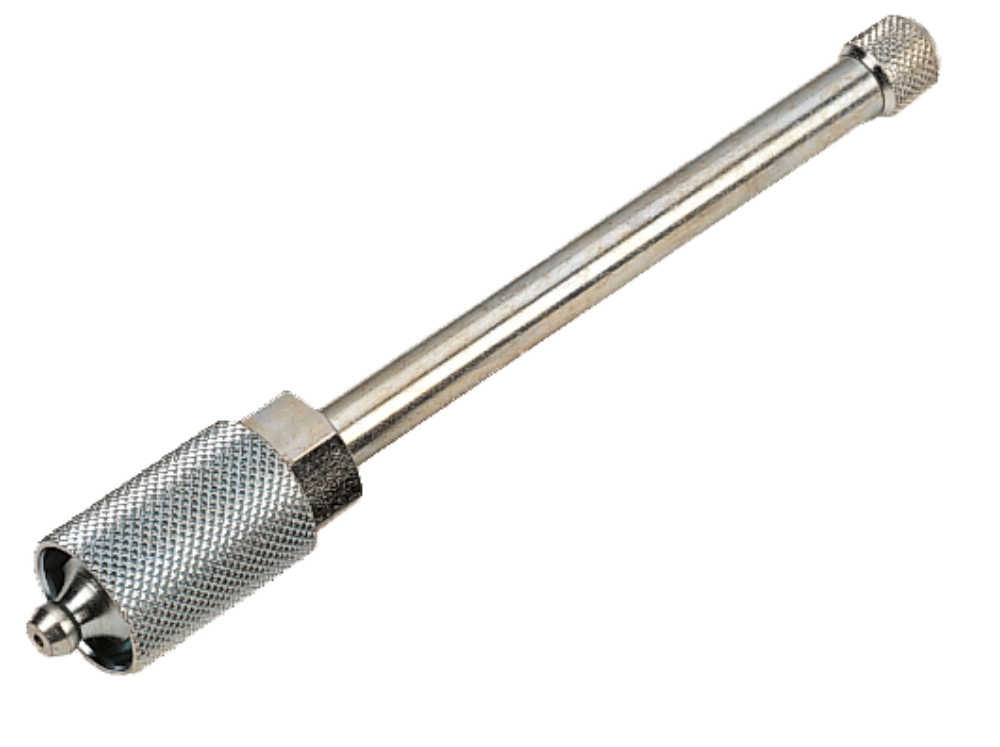

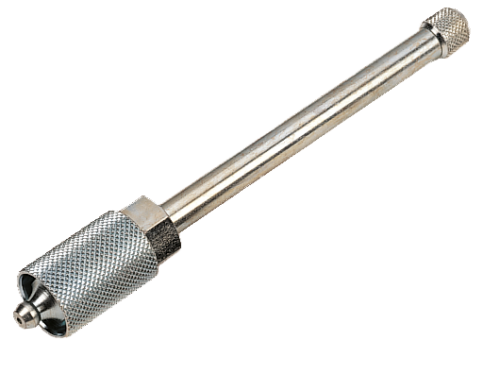

Quick Coupling with Extension Tube and Concave Nozzle for attachment of Four-piece Hydraulic Connector.
This version with Concave Nozzle is suitable for cardan shafts.
Plug-type connection: Lubrication Nipple of type H1 according to DIN 71412.
| Plug-connection | Attachable to Hydraulic Connector | Extension Tube with Concave Nozzle | Article No. |
|---|---|---|---|
Lubrication Nipple H1
Conical head DIN 71412 | External dia. 14 mm | External dia. 10 mm | 3589500 |
Lubrication Nipple H1
Conical head DIN 71412 | External dia. 15/16 mm | External dia. 10 mm | 3589000 |
Operating pressure [bar]
400
External diameter [mm]
18 (Sleeve)
Width across flats [mm]
15
