Product information

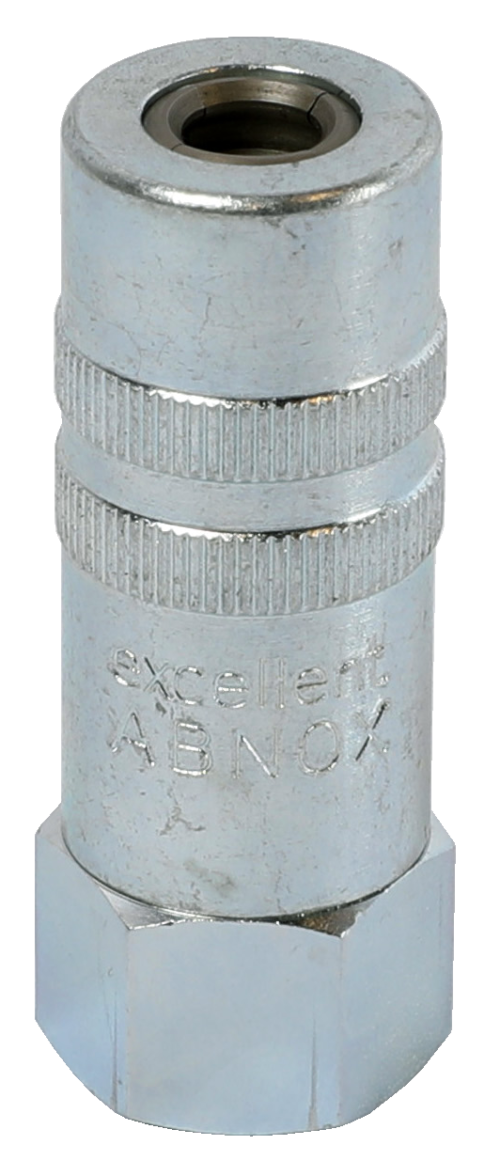

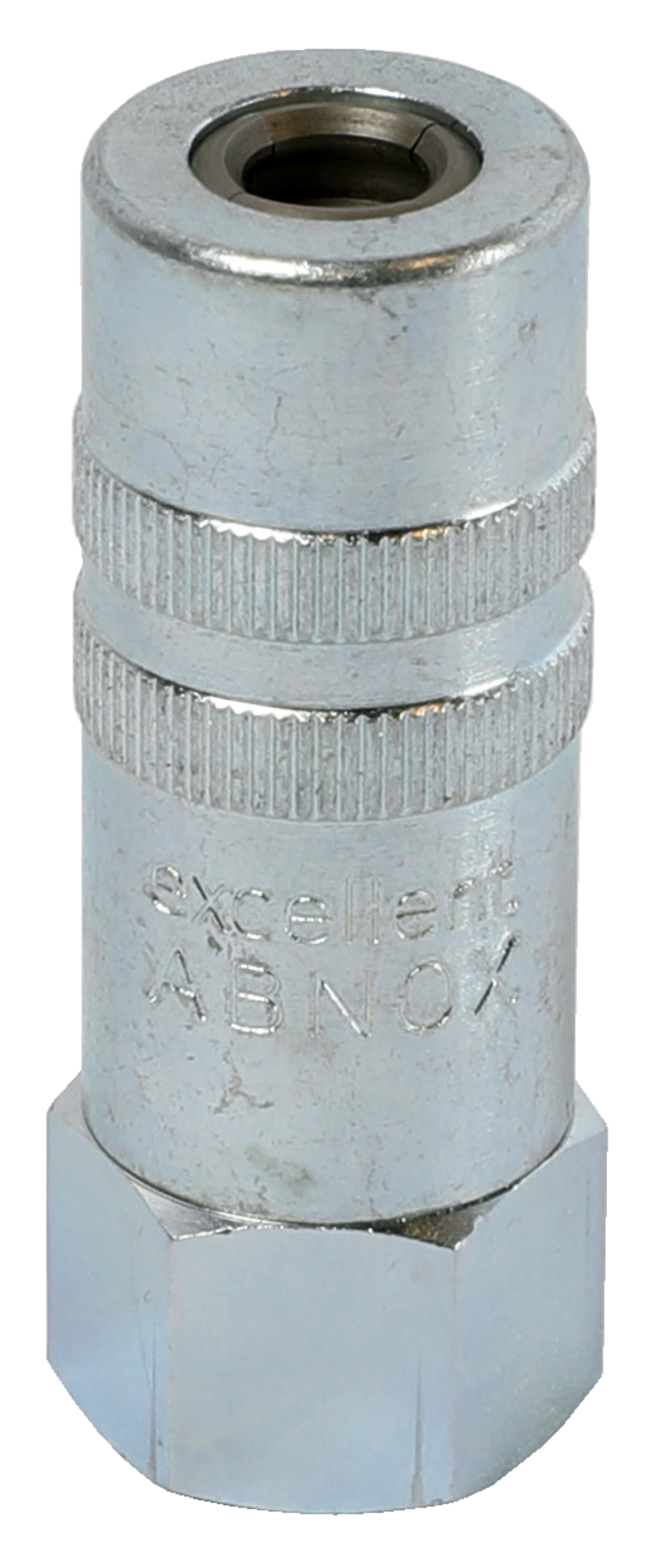

Four-piece Hydraulic Connector EXCELLENT, Heavy-duty version. For professional use, reliable lubricating action. Suitable for Lubrication Nipples.
This Four-part Gripper Connector allows easy coupling and uncoupling without damaging the Lubrication Nipple.
The hard-wearing sealing ring assure high durability of Connector and of use.
Absolute tightness at tilt angles as much as 12 degrees.
Recommendation from ABNOX:
For optimal protection of your Lubrication Nipple, ABNOX recommend this: To disconnect the Connector from the Lubrication Nipple, slightly tilt connector, rotate clockwise and gently pull.
| Connection internal thread | External dia. / Width across flats [mm] | Length [mm] | Operating pressure / Max. Pressure [bar] | Application area for Grease Nipples | Article No. |
|---|---|---|---|---|---|
1/8" BSP | 14 / 14 | 39.5 | 400 / 600 | Type H according
to DIN 71412 | 3659000 |
M10 x 1 | 14 / 14 | 39.5 | 400 / 600 | Type H according
to DIN 71412 | 3659200 |
