Product information
Attention: This model replace the old article - no. 3668000

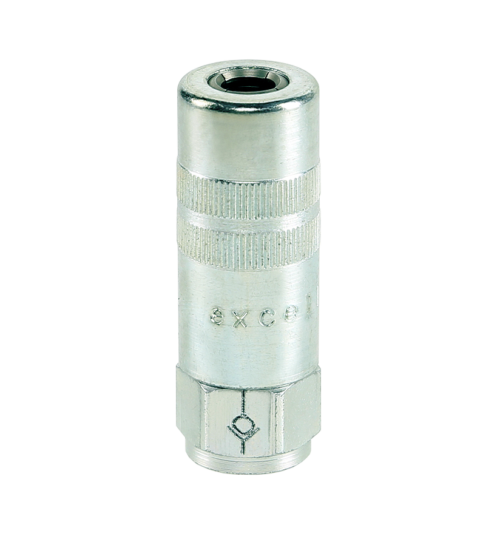

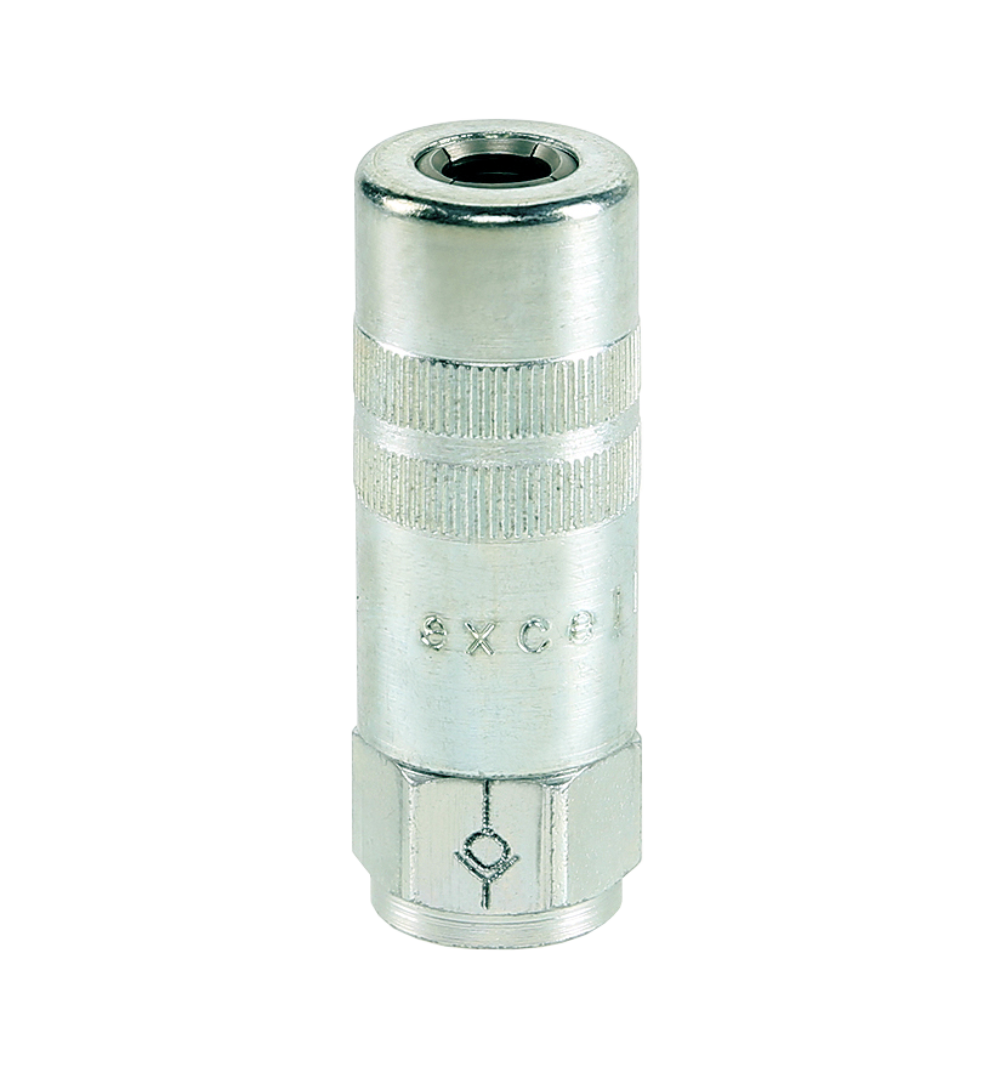

Four-piece Hydraulic Connector EXCELLENT, Heavy-duty version, suitable for mineral oils. For professional use, reliable lubricating action. Suitable for Lubrication Nipples.
This Four-part Gripper Connector allows easy coupling and uncoupling without damaging the Lubrication Nipple.
The hard-wearing sealing ring assure high durability of Connector and of use.
Absolute tightness at tilt angles as much as 12 degrees.
Recommendation from ABNOX:
For optimal protection of your Lubrication Nipple, ABNOX recommend this: To disconnect the Connector from the Lubrication Nipple, slightly tilt connector, rotate clockwise and gently pull.
Area of application for greasenipples type
H (DIN 71412)
Operating pressure [bar]
400
Max. pressure [bar]
600
External diameter [mm]
14
Width across flats [mm]
14
Length [mm]
39.5
