Product information

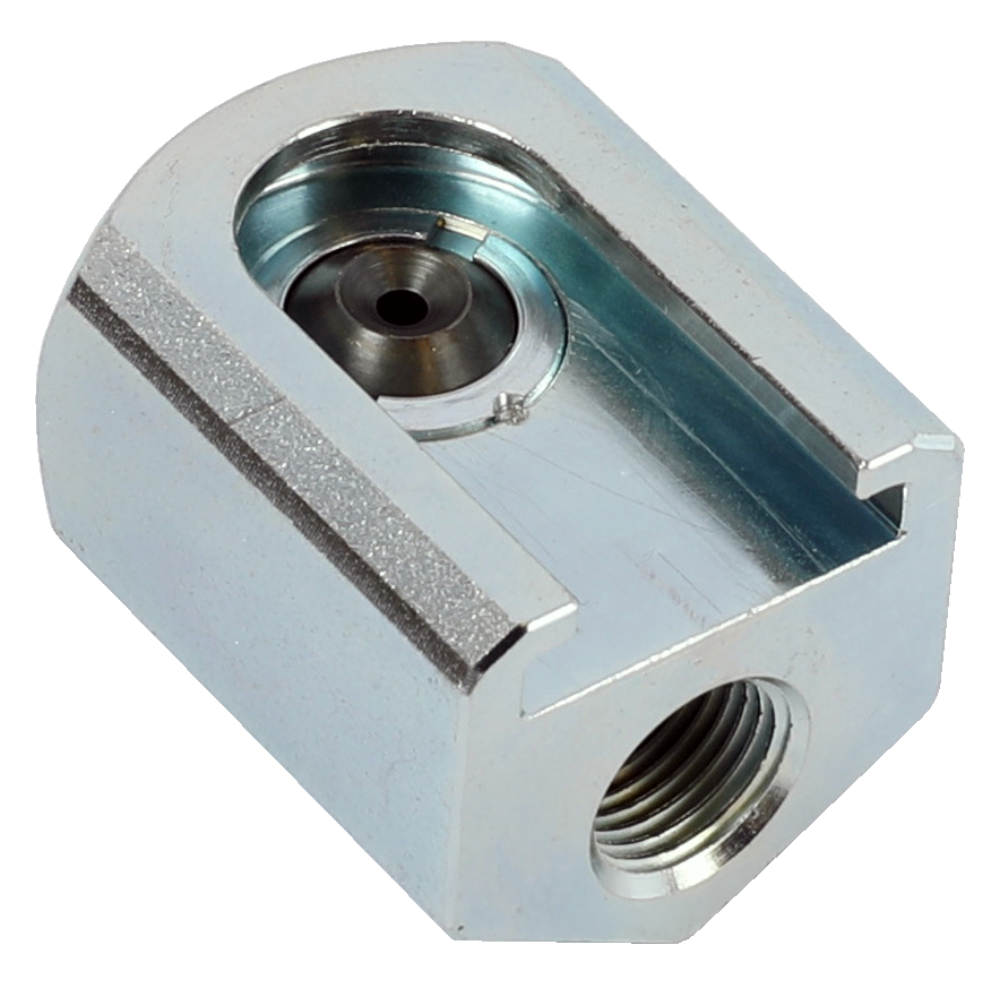

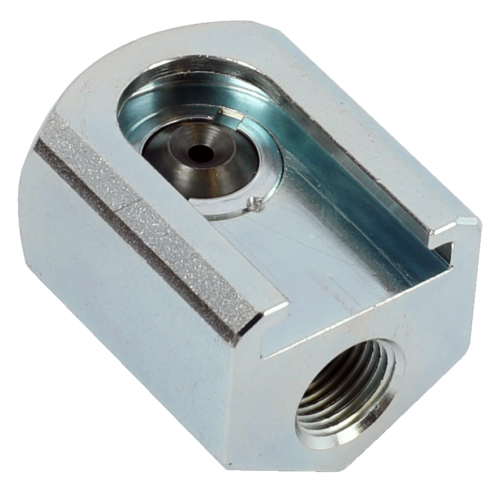

Connector MONOGLISSO, with steel membrane, for professional use
Guide track (width 18 mm) and locking mechanism for Nipple at connector provide reliable lubricating action. Suitable for Button Head Nipples.
Connect the Connector MONOGLISSO by pulling.
Uncouple the Connector MONOGLISSO by pushing.
Point of application:
Button Head Nipple of type A2 according to DIN 3404 with head diameter 16 mm.
| Connection internal thread | Width across flats [mm] | Length [mm] | Operating pressure / Max. Pressure [bar] | Application area for Grease Nipples | Article No. |
|---|---|---|---|---|---|
1/8" BSP | 24 | 32 | 200 / 400 | Type A2 dia. 16 mm
according to DIN 3404 | 3619000 |
M10 x 1 | 24 | 32 | 200 / 400 | Type A2 dia. 16 mm
according to DIN 3404 | 3619200 |
