Product information

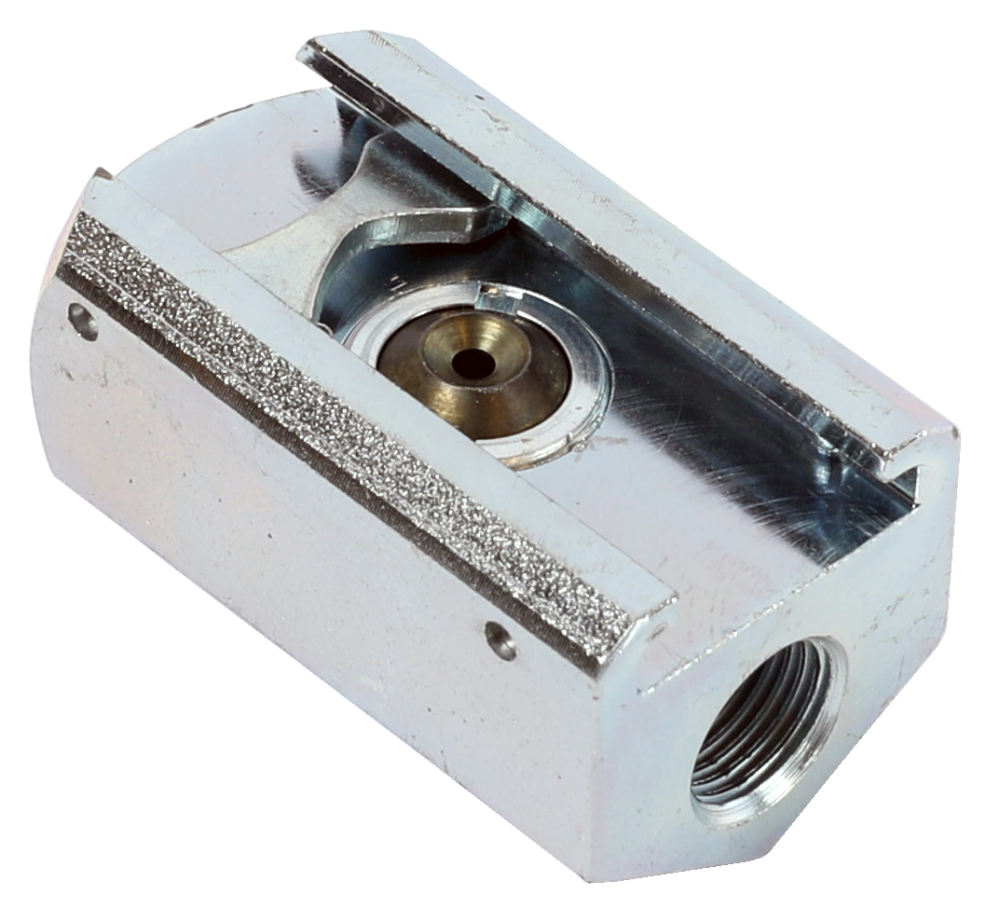

Connector DUOGLISSO, with steel membrane, for use with limited space, for professional use
Guide track (width 18 mm) and locking mechanism for Nipple at connector provide reliable lubricating action. Suitable for Button Head Nipples.
Coupling and uncoupling the Connector DUOGLISSO by pulling or pushing.
Point of application:
Button Head Nipple of type A2 according to DIN 3404 with head diameter 16 mm.
| Connection internal thread | Width across flats [mm] | Length [mm] | Operating pressure / Max. Pressure [bar] | Application area for Grease Nipples | Article No. |
|---|---|---|---|---|---|
1/8" BSP | 24 | 42 | 200 / 400 | Type A2 dia. 16 mm
according to DIN 3404 | 3629000 |
M10 x 1 | 24 | 42 | 200 / 400 | Type A2 dia. 16 mm
according to DIN 3404 | 3629200 |
