Product information

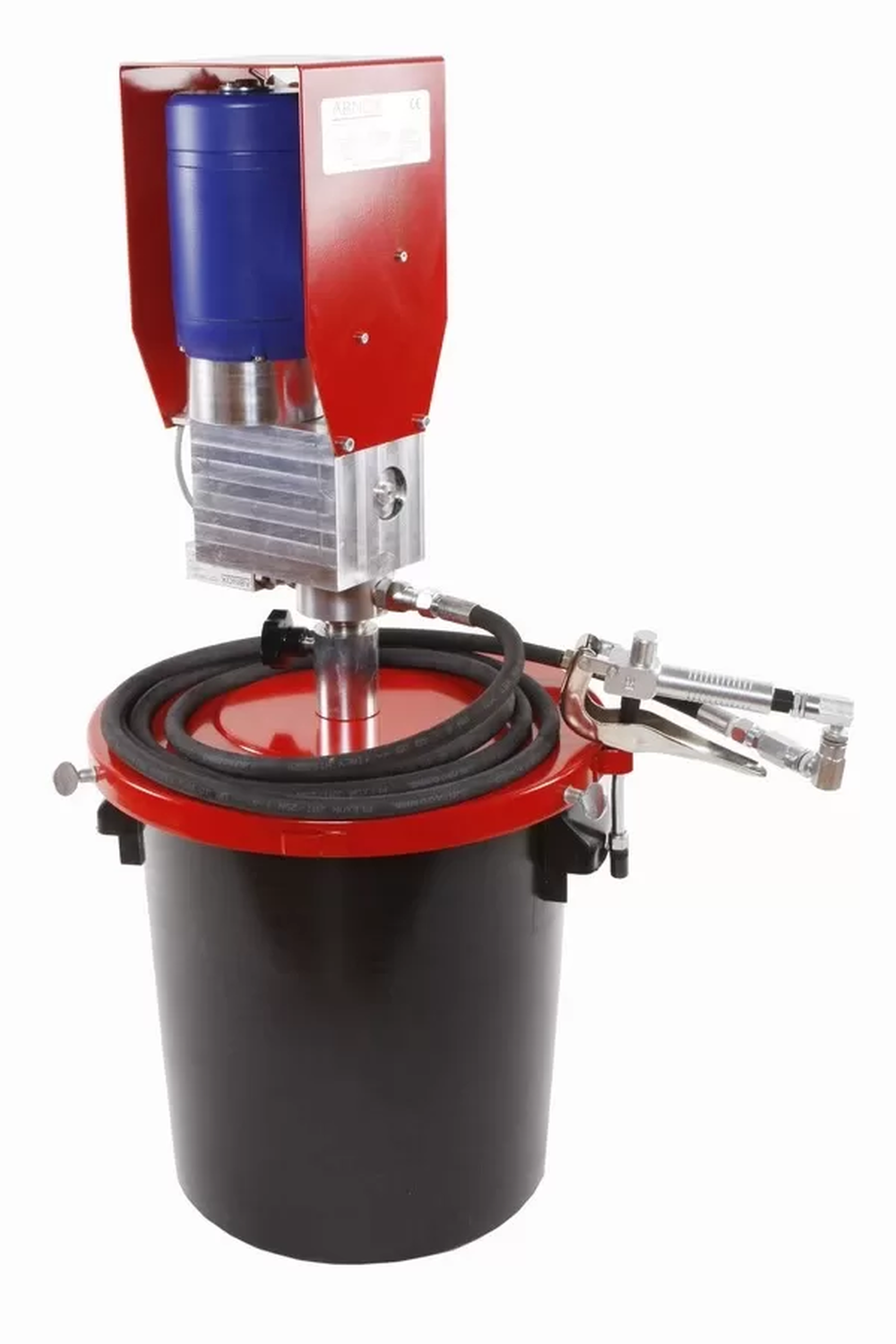

The Electric-operated Grease Supply System for conical container with internal dia. 306 - 335 mm, design without protecion container.
This Electric-operated Grease Supply System AX-2000 permit reliable and trouble free lubrication when ever no compressed air is available (Maintenance escalators, paper industries, wind energy industries etc.).
The AX-2000 as well suitable as optimal feed pump for the replenishing of centralised lubrication systems.
This Grease Supply System AX-2000 is based on many years of experience in the technic of powering and gearing with the existing electric-operated lubricating unit as well as the technology of the approved pump systems.
The conditions of the pumping system have been improved essentially by a higher dimensioned diameter of the piston as well as an ideal speed of the stroke.
The optimal adjustment between motor, gear box and pump system guarantees a smooth pumping and avery low noise level.
• Independent from compressed air
• Operator convenience
• Economic efficiency
• High quality standard
• Balanced price/performance ratio
• High reliability
• Low-noise
A short time pressure up to 400 bar max. is achieved with the design high pressure booster gun HDP. Applicable e.g. used for cleaning of closed grease nipples. |
You will find the component parts to this electric-operated grease supply system AX-2000 in accessories
Container size [kg]
25
Container internal dia. [mm]
306 - 335
Container height [mm]
470
Suction tube dia. [mm]
32
Suction tube length [mm]
477
Highpressurehose length(m)
4
Description
ABNOX Grease Supply System AX-2000 have a pressure independent output up to 200 bar working pressure. ** = Delivery rate metered at pump outlet (Medium NLGI 2) by 200 bar counterpressure and by 20°C ambient temperature
Input medium specification
Lubricants up to NLGI 3 / 5000 m Pa.s
Delivery rate at pump outlet [cm3/min]
280**
Working pressure medium outlet [bar]
200
Max. workingpressure medium outlet [bar]
200
Connection medium outlet external thread
1/4'' BSP
Starting Current [A]
15
Nominalcurrent [A]
5
Frequency [Hz]
50/60
Power [kW]
0.40
Voltage [V DC]
230
Duty Cycle [%]
100
Protectionclass
IP 55
Min. / max. operatingtemperature [°C]
10/40
