Product information

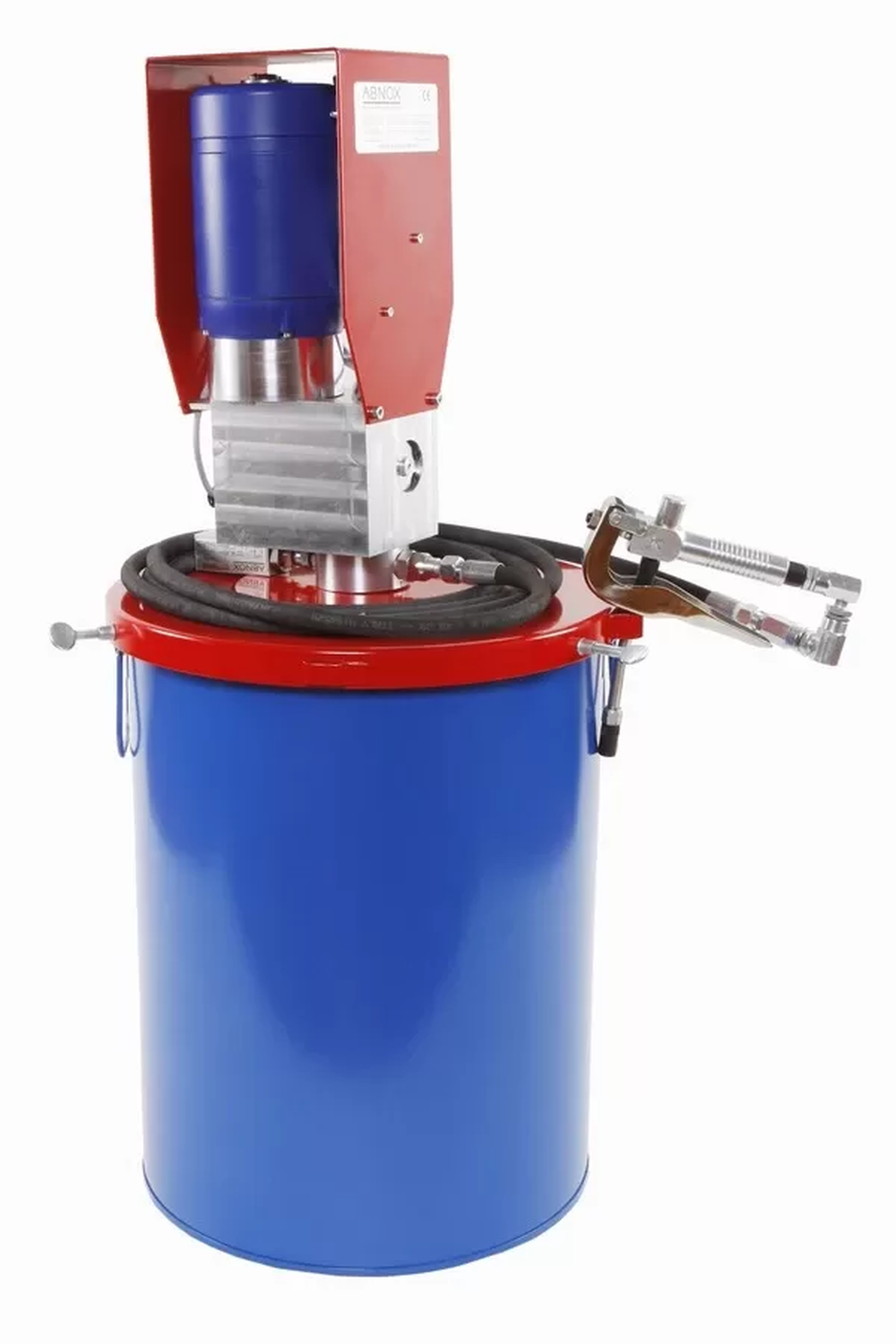

The Electric-operated Grease Supply System for conical container with internal dia. 260 - 290 mm, design with protecion container.
The protection container to prevent damage to the container and to guarantee a perfect function of the follower plate.
The Electric-operated Grease Supply System AX-2000 permit reliable and trouble free lubrication when ever no compressed air is available (Maintenance escalators, paper industries, wind energy industries etc.).
The AX-2000 as well suitable as optimal feed pump for the replenishing of centralised lubrication systems.
This Grease Supply System AX-2000 is based on many years of experience in the technic of powering and gearing with the existing electric-operated lubricating unit as well as the technology of the approved pump systems.
The conditions of the pumping system have been improved essentially by a higher dimensioned diameter of the piston as well as an ideal speed of the stroke.
The optimal adjustment between motor, gear box and pump system guarantees a smooth pumping and avery low noise level.
• Independent from compressed air
• Operator convenience
• Economic efficiency
• High quality standard
• Balanced price/performance ratio
• High reliability
• With protective container
• Low-noise
A short time pressure up to 400 bar max. is achieved with the design high pressure booster gun HDP. Applicable e.g. used for cleaning of closed grease nipples.
You will find the component parts to this electric-operated grease supply system AX-2000 in accessories
Container size [kg]
20
Container internal dia. [mm]
260 - 290
Container height [mm]
470
Suction tube dia. [mm]
32
Suction tube length [mm]
477
Highpressurehose length(m)
4
Description
ABNOX Grease Supply System AX-2000 have a pressure independent output up to 200 bar working pressure. ** = Delivery rate metered at pump outlet (Medium NLGI 2) by 200 bar counterpressure and by 20°C ambient temperature
Input medium specification
Lubricants up to NLGI 3 / 5000 m Pa.s
Connection medium outlet external thread
1/4'' BSP
Frequency [Hz]
50/60
Power [kW]
0.40
Voltage [V DC]
230
Duty Cycle [%]
100
Protectionclass
IP 55
Min. / max. operatingtemperature [°C]
10/40
