Product information

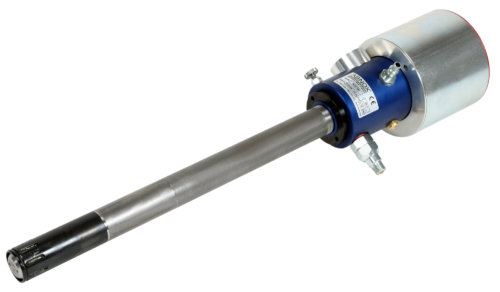

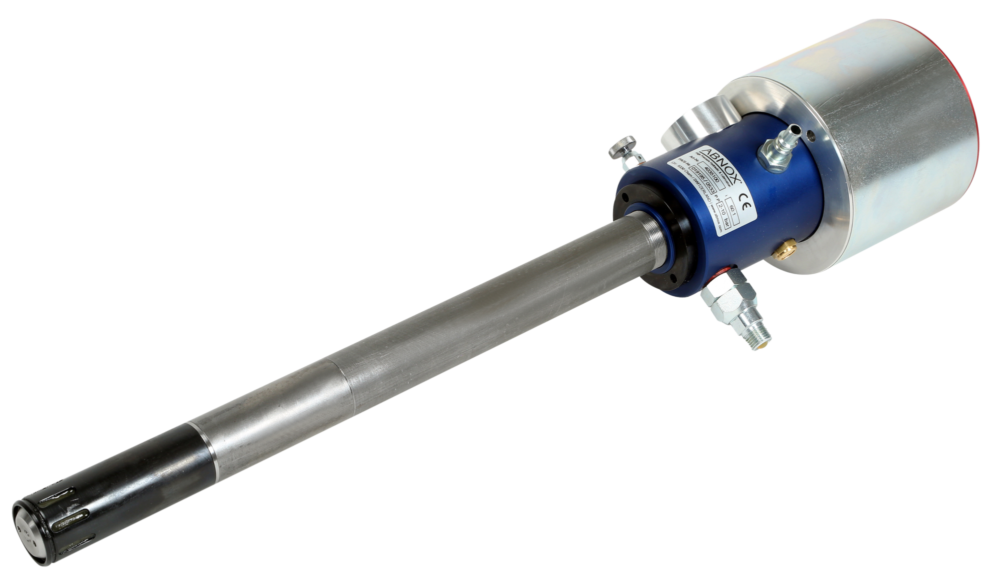

The Air-operated Grease Pump with pressure ratio from 60:1 is designed to lubricate machinery and all mechanical equipment.
You will find more information in the downloads section under "Seal Kit" and "Spare Parts List"
| Description | Article-No. |
|---|---|
Seal Kit Air Motor | 4879600 |
Seal Kit Suction System | 4039500 |
Conversion Kit | 4039800 |
Repair Kit | 4039400 |
Adapter cpl. | 4021401 |
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate at pump outlet [cm3/min]
500
Delivery rate per double stroke [cm3]
7.5
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
335
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
555
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
