Product information

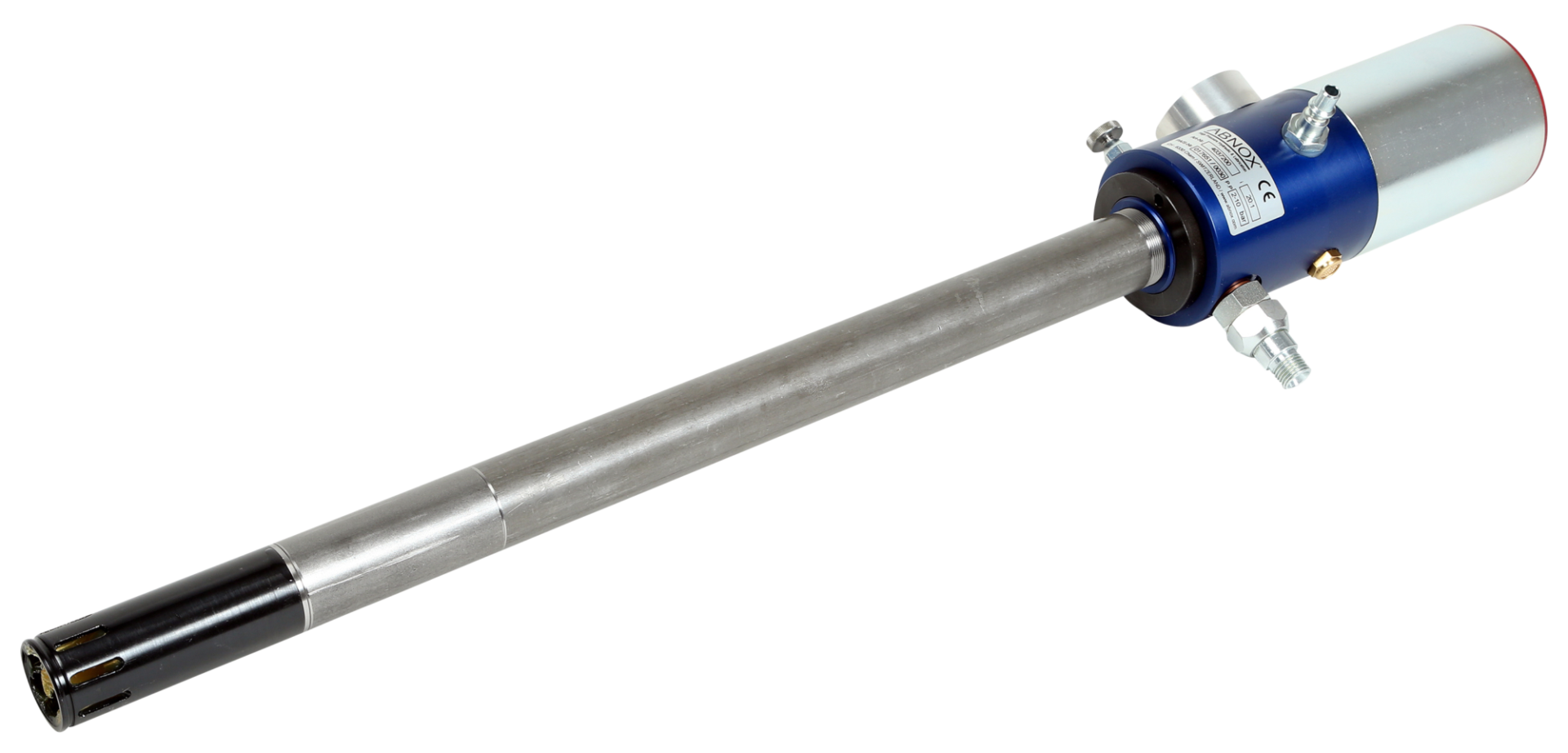

The Air-operated Grease Pump with pressure ratio from 20:1 is ideal applicable as Feeding Pump for ABNOX Metering Valves or as Filling System.
| Container size | Max. Container height (mm) | Suction Tube length (mm) | Article No. |
|---|---|---|---|
1 up to 5 kg | 280 | 288 | 4060810 |
14 up to 18 kg | 365 | 370 | 4037100 |
20 up to 25 kg | 470 | 473 | 4037200 |
50 kg | 715 | 720 | 4037300 |
180 kg | 840 | 845 | 4037400 |
You will find more information in the downloads section under ''Seal Kit'' and ''Spare Parts List''
| Description | Article-No. |
|---|---|
Seal Kit Air Motor | 4879500 |
Seal Kit Suction System | 4039500 |
Conversion Kit | 4039800 |
Repair Kit | 4039400 |
Adapter cpl. | 4021401 |
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 5'000 mPa.s
Delivery rate at pump outlet [cm3/min]
890
Delivery rate per double stroke [cm3]
7.5
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
115
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
