Product information

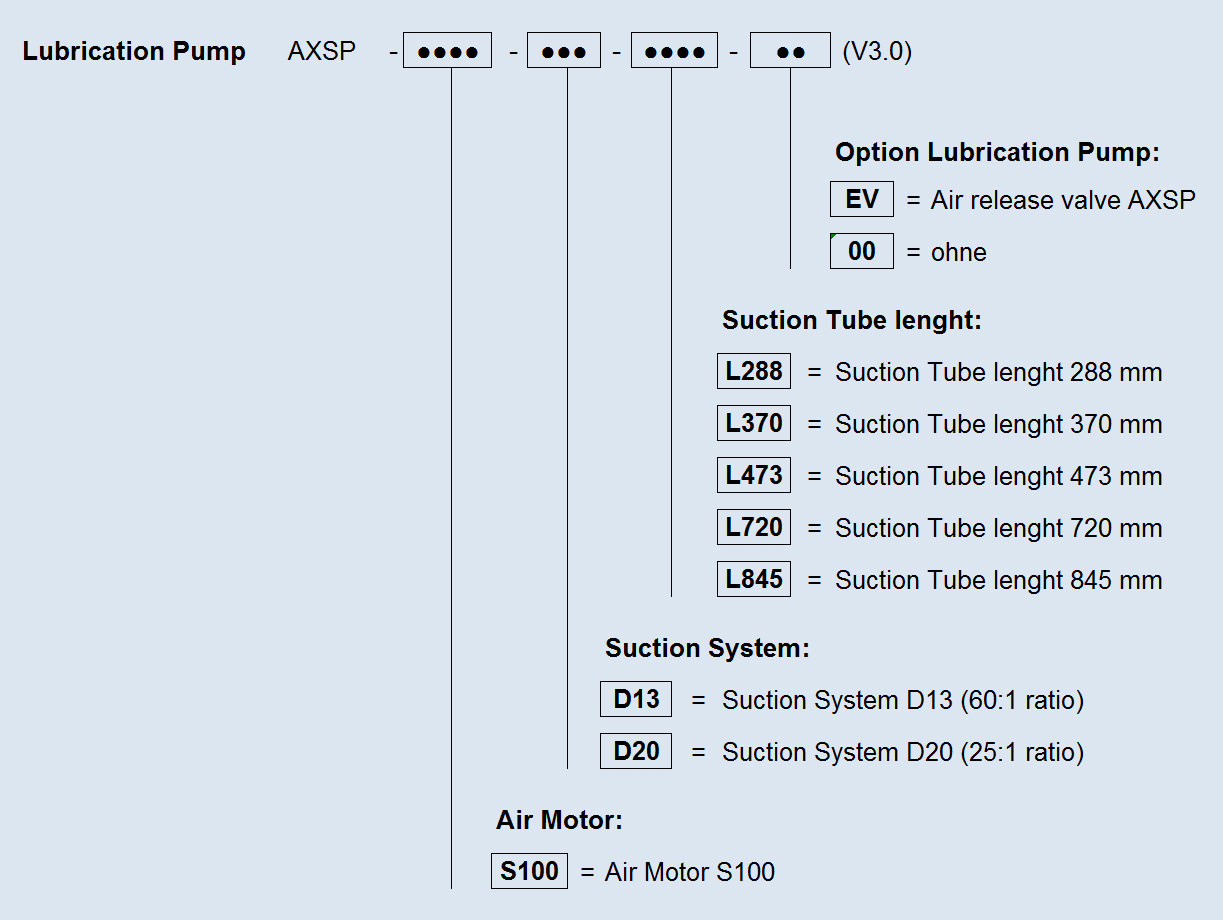

Lubricant Pump with a pressure ratio of 25:1 (S100-D20).
The noise level of the Lubricant Pump AXSP (Air Motor AXSP-S100) is 78 dB.
| Container size | Max. Container height (mm) | Suction Tube length (mm) | Article No. |
|---|---|---|---|
1 up to 5 kg | 285 | 288 | 0007422 |
up to 18 kg | 365 | 370 | 0007423 |
up to 25 kg | 470 | 475 | 0007424 |
up to 50 kg | 715 | 720 | 0007425 |
up to 180 kg | 840 | 845 | 0007426 |
Check Downloads for more information.
Recommendation:
Keep the Lubrication Pump always clean to avoid damage to the Pump.
| Description | Article-No. |
|---|---|
Seal Kit Suction System | 0007787 |
| Description | Article-No. |
|---|---|
| Complete Suction System | 000745X |
| Complete Air Motor | 0009161 |
| Air Release Valve EV | 0006207 |
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
1500
Delivery rate per double stroke [cm3]
31
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
150
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
200
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10 / 40
