Product information

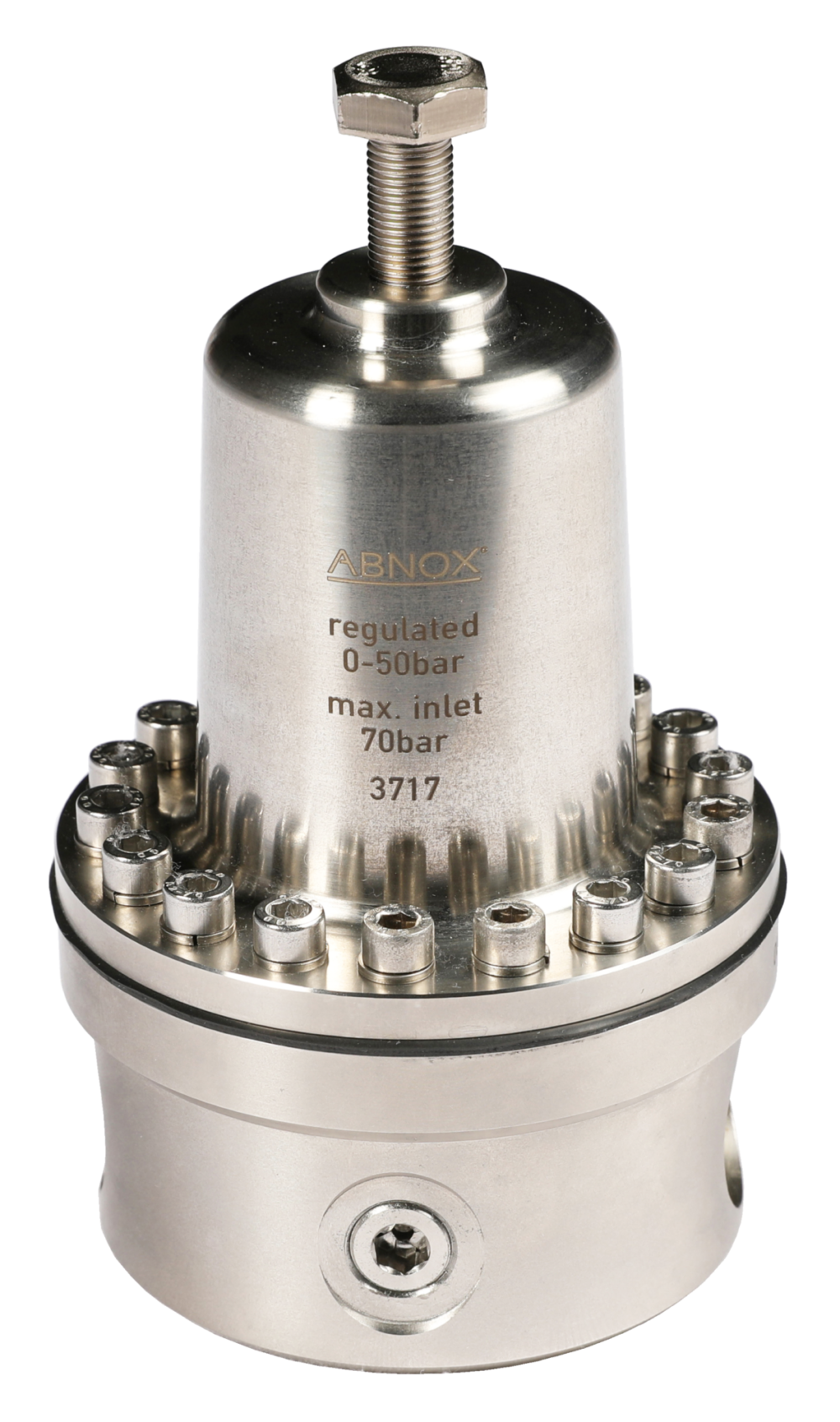

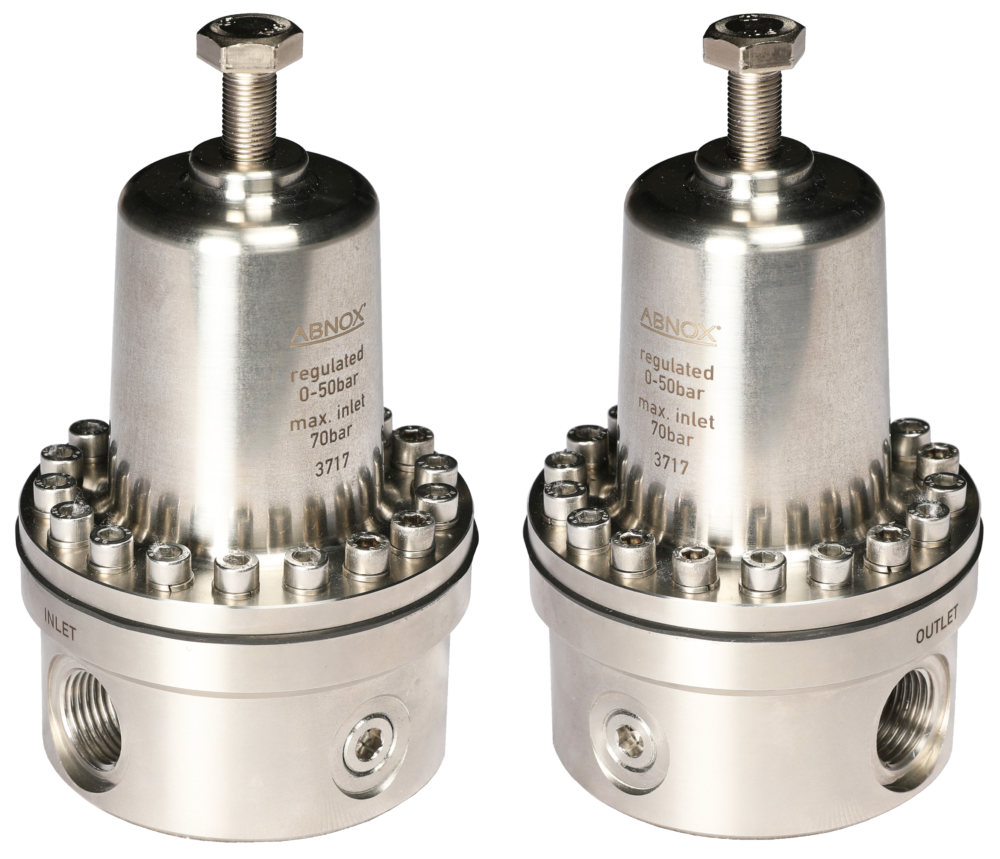

This Precision Pressure Regulator with Diaphragm is ideal for constant material pressure regulation in line systems.
Possible pressure peaks in the material supply are optimally smoothed and thus enable perfect application patterns with our Spray and Pulse Valves.
Ideally, one Material Pressure Regulator is used per Valve.
This Diaphragm Pressure Regulator MMDR is not equipped with an Outlet Pressure Gauge and without a Handwheel/Star Handle.
Seal Kit made of stainless steel.
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Max. pressure [bar]
200
Connection medium inlet internal thread
1/2" BSP (INLET)
Connection medium outlet internal thread
1/2" BSP (OUTLET)
Seal material
Viton®/PTFE
Weight [kg]
3.00
