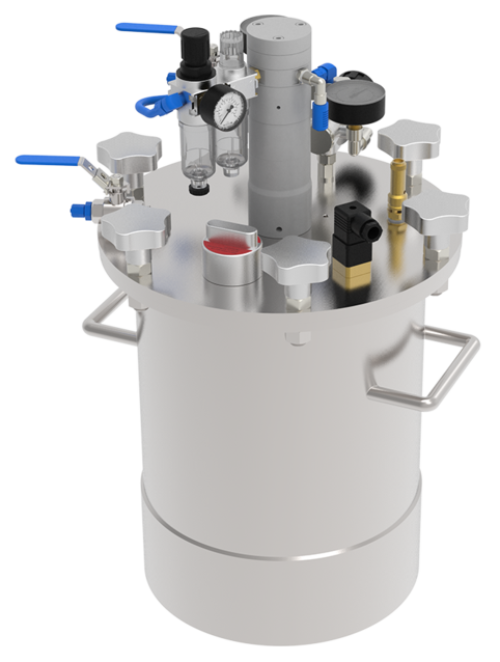

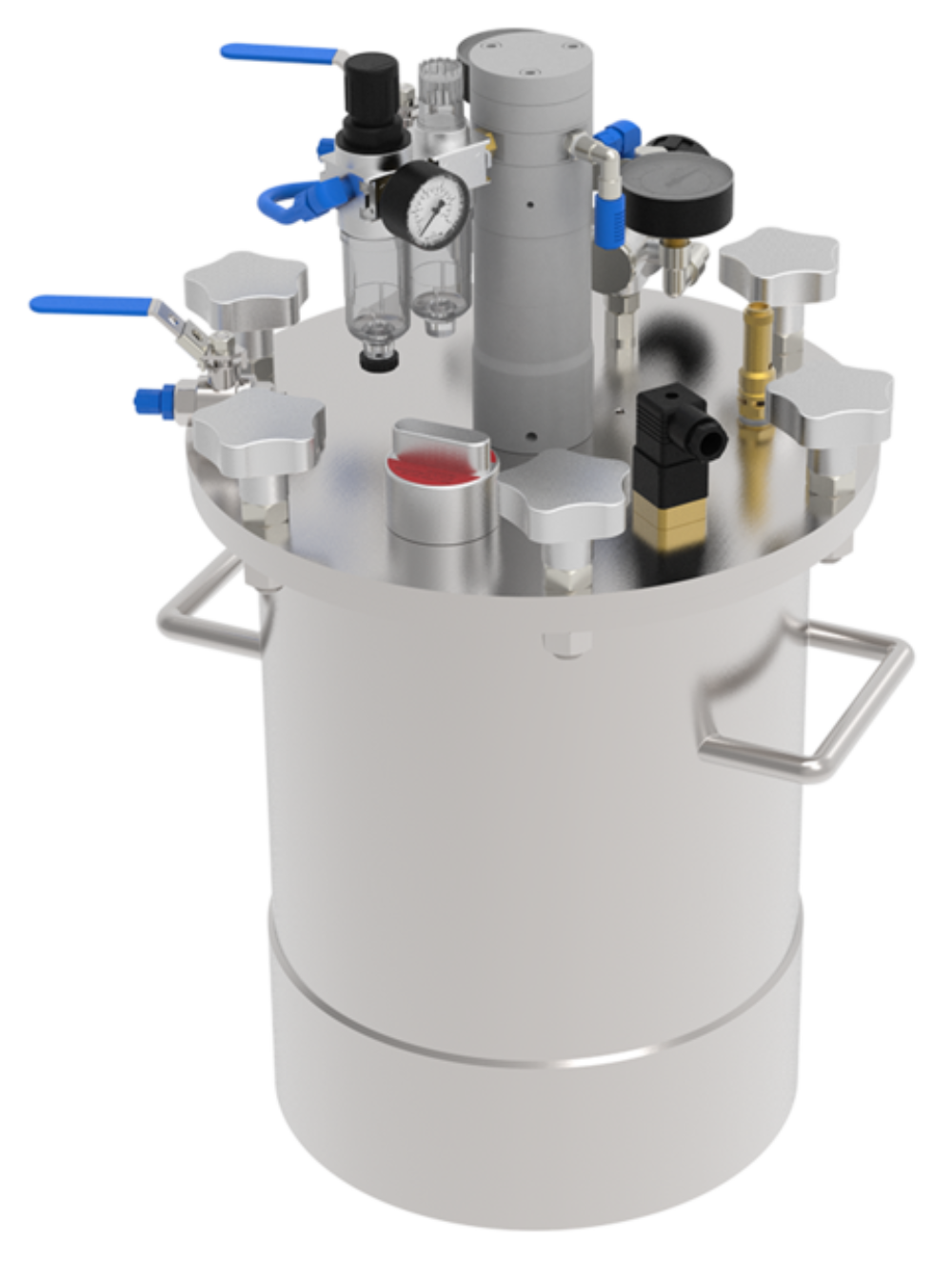

Product information
| Model | Compressed-air Fitting | Material outflow | Article No. |
|---|---|---|---|
AXMB-V20-DA1P-000-00-MAO-000-00 | With 1 precision Regulator "DA1P" | Position Top "MAO" | 0014760 |
AXMB-V20-DA2P-000-00-MAO-000-00 | With 2 precision Regulators "DA2P" | Position Top "MAO" | 0014761 |
AXMB-V20-DA1P-000-00-MAU-000-00 | With 1 precision Regulator "DA1P" | Position Below "MAU" | 0014762 |
AXMB-V20-DA2P-000-00-MAU-000-00 | With 2 precision Regulators "DA2P" | Position Below "MAU" | 0014763 |
| Option | Description | Article No. |
|---|---|---|
DA1P | Compressed-air Armature with 1 precision Pressure Regulator and Control Air Shut-off | 0014690 |
DA2P | Compressed-air Armature with 2 precision Pressure Regulator and Control Air Shut-off | 0014691 |
DRW-BR | Assembly DRW-BR complete:
Compressed-air Stirrer and Stirrer Cup cone, stirring dia. 120 mm | 0014695 |
DRW-BF | Assembly DRW-BF complete:
Compressed-air Stirrer and Stirrer Wing WP 88, stirring dia. 125 mm | 0014696 |
ERW-BR | Assembly ERW-BR complete:
Electric Stirrer and Stirrer Cup cone, stirring dia. 120 mm | 0014700 |
ERW-BF | Assembly ERW-BF complete:
Electric Stirrer and Stirrer Wing WP 88, stirring dia. 125 mm | 0014701 |
GWS | Level Probe with sliding tube dia. 8 mm, 3 switching points (min. / before min. / max.)
incl. PVC cable potted L= 1 m, max. 230VAC/0,5A/10VA | 0014721 |
BO | Filler Pipe | 0015531 |
Model
Tank capacity 20 litres
Input medium specification
Fluid Group 1
Max. operatingpressure [bar]
6
Connection medium outlet internal thread
1/4" BSP (Position top "MAO" and below "MAU")
Material
Stainless steel
Min. / max. operatingtemperature [°C]
5 / 50
Weight [kg]
30
Dimensioned Sketch 0014760
3D Data 0014760
stp
Dimensioned Sketch 0014761
3D Data 0014761
Dimensioned Sketch 0014762
3D Data 0014762
stp
Dimensioned Sketch 0014763
3D Data 0014763
stp
Dimensioned Sketch Level Probe (GWS) 0014721
