Product information

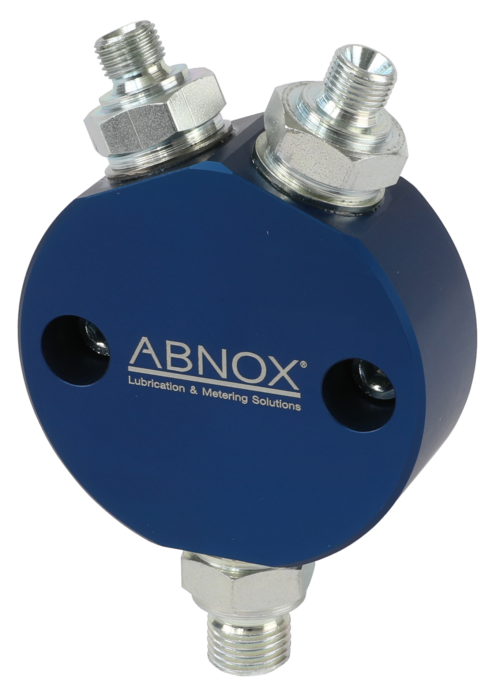

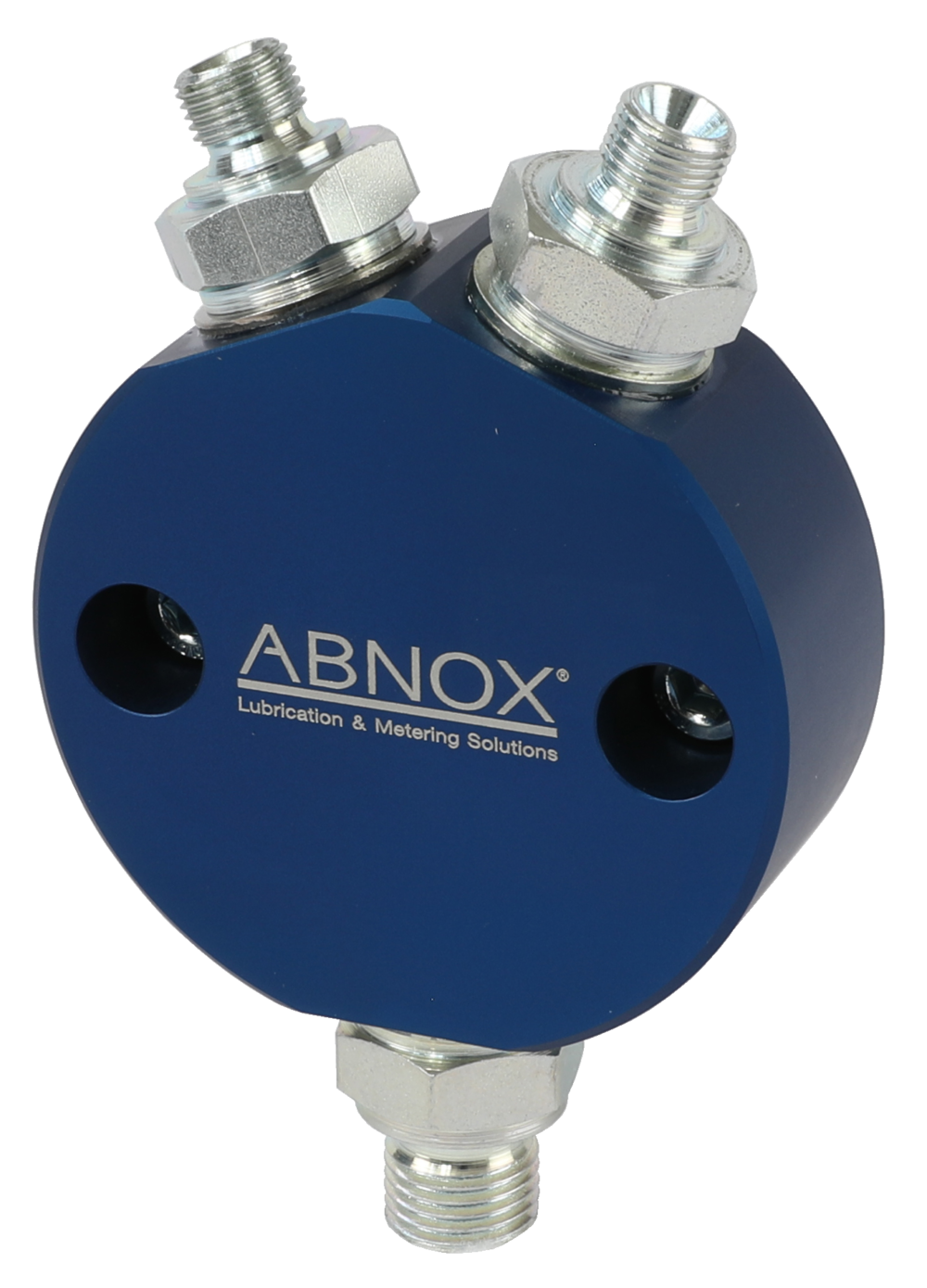

The 2-fold Distributor is designed for optimum distribution of the material feed, e.g. for 2 ABNOX Dosing Valves.

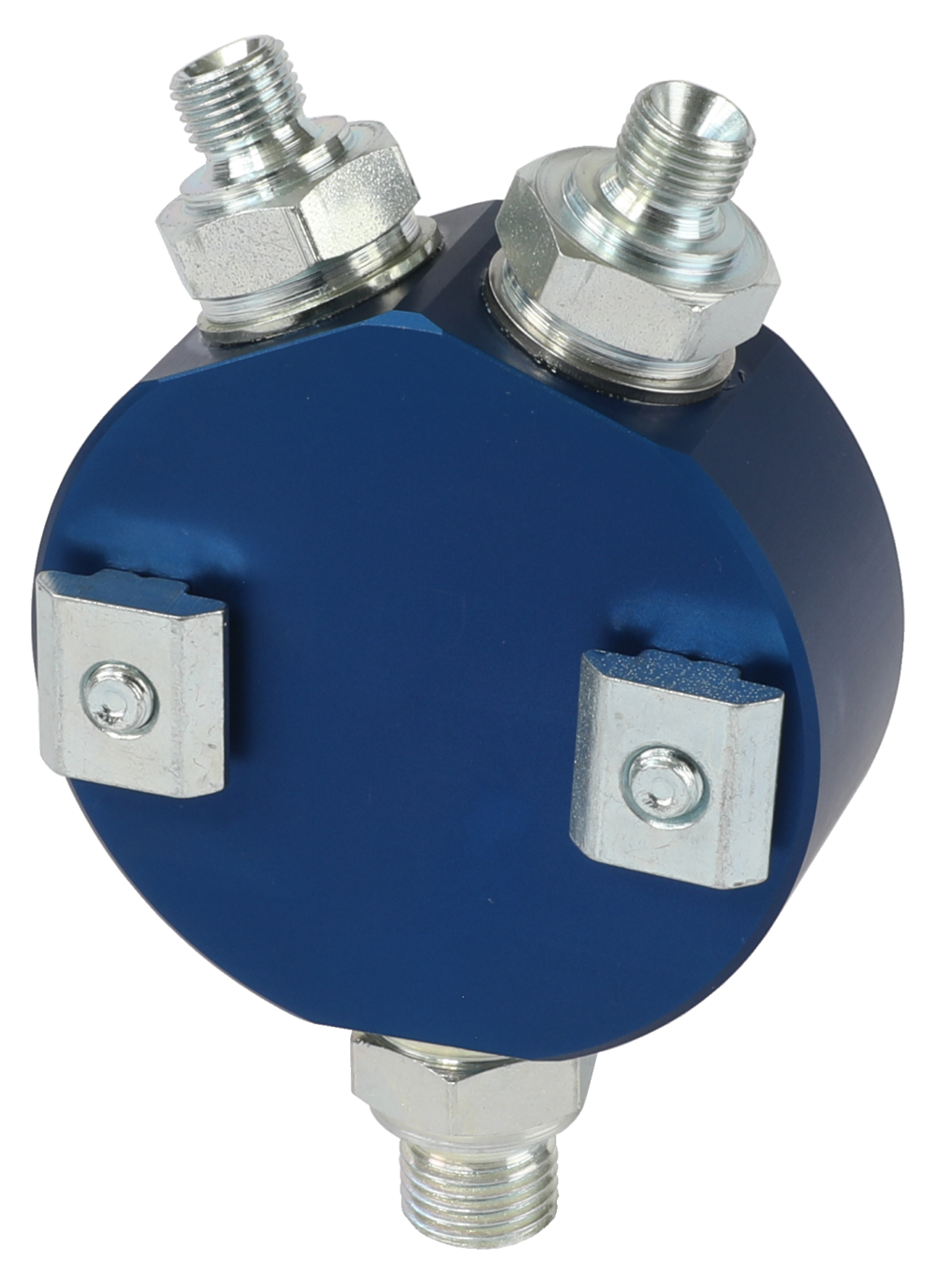

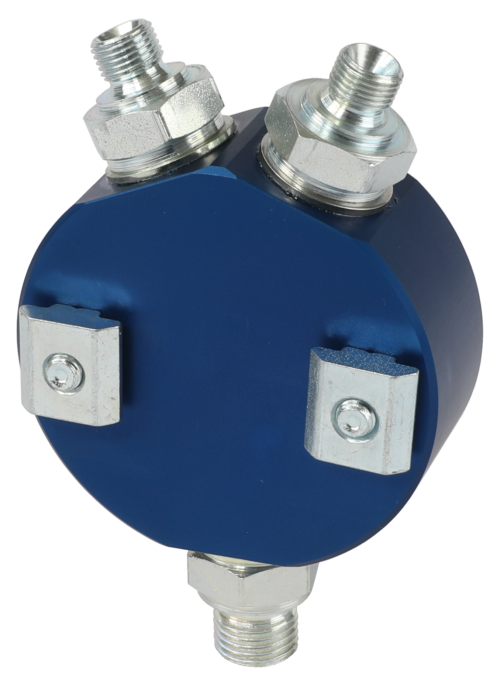

The M6x16 fastening Screws incl. Sliding Block (hole spacing 45 mm) included in the scope of delivery are suitable for fastening the Distributor to ABNOX Drum Feed Pumps.
| Connection medium inlet male thread | Connection medium outlet male thread | Max. Pressure [bar] | Article No. |
|---|---|---|---|
1/4" BSP | 2 x 1/8" BSP | 400 | 4080503 |
1/4" BSP | 2 x 1/4" BSP | 400 | 0011764 |
Optionally, unused outlets can be closed pressure-tight with the following ABNOX Lock Screw.
Connection A: internal thread (cylindrical), union nut, 60° external cone
Material: 1.4571
| Connection A | AF (SW) | Operating pressure | Article No. |
|---|---|---|---|
| 1/8" BSP internal thread | 14 | 400 bar | 0011864 |
| 1/4" BSP internal thread | 17 | 400 bar | 8574300 |
