Product information

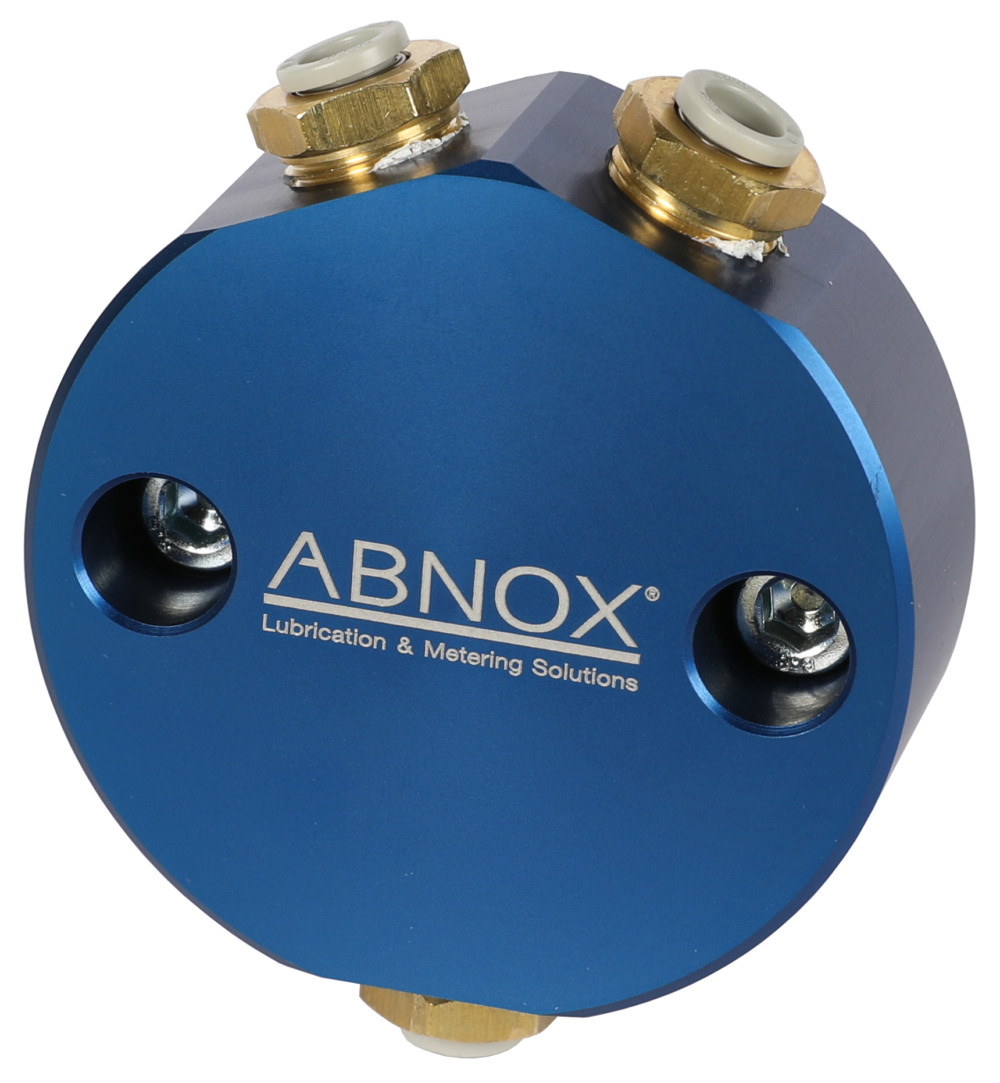

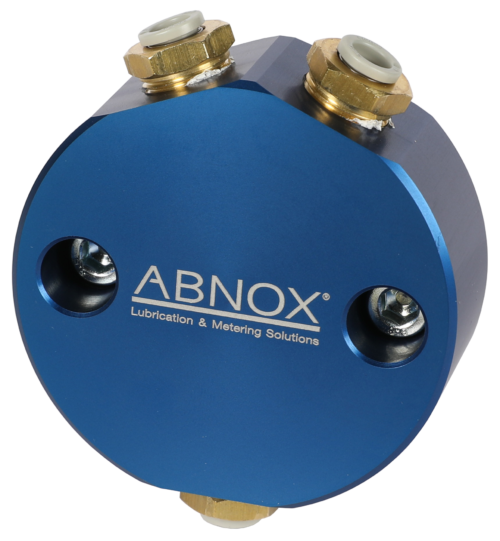

The 2-fold Pneumatic Distributor is designed for optimum distribution of the compressed air supply, e.g. for 2 ABNOX Dosing Valves.
Unused outlets can be sealed pressure-tight with Pneumatic Blind Plugs (Art.-No. 0002405).
Two Pneumatic Blind Plugs are included with this 2-way Manifold.

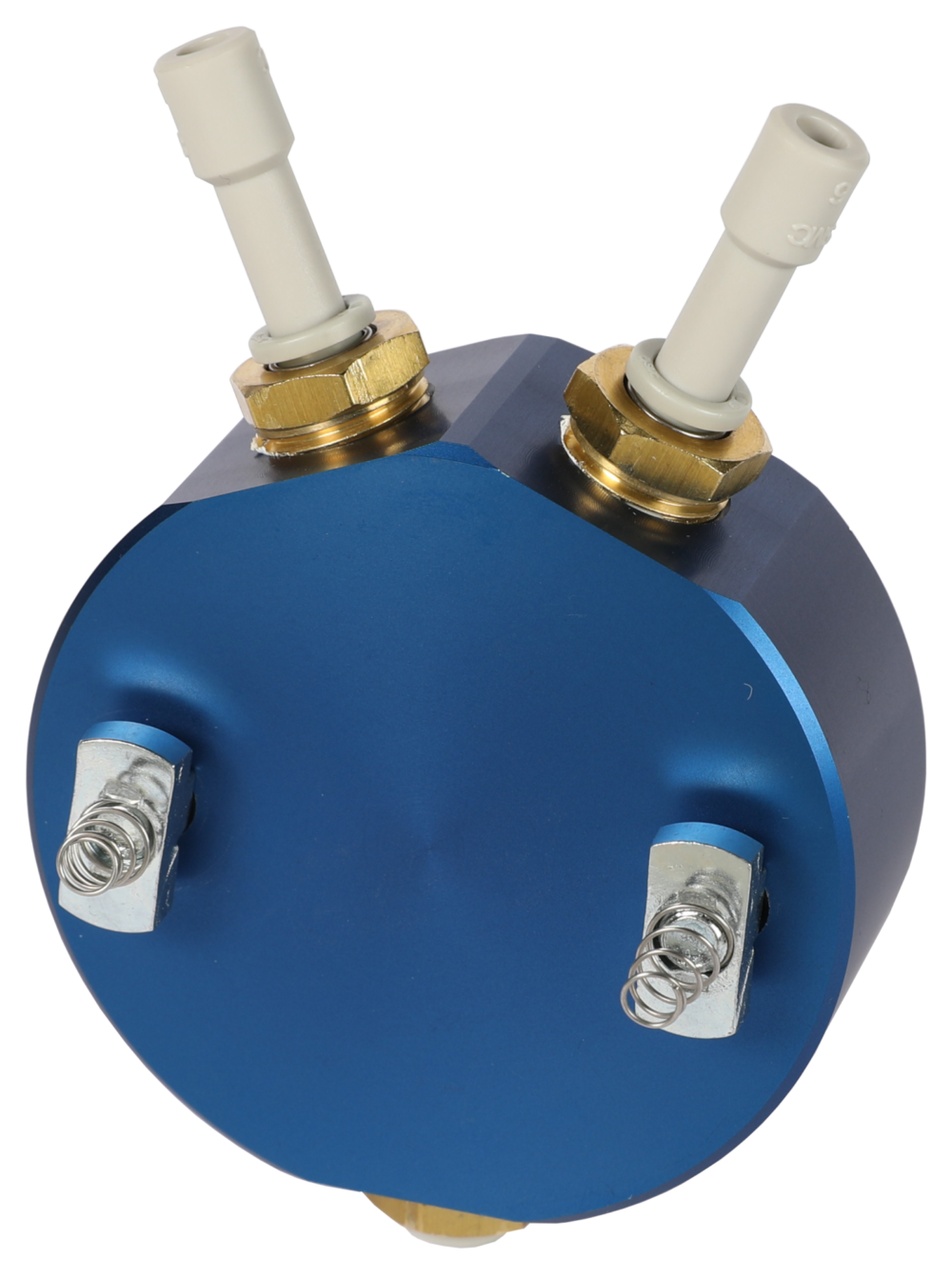

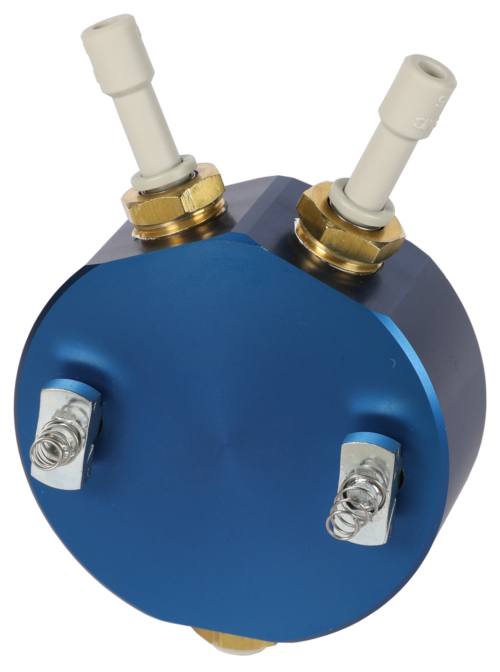

The M6x16 fastening Screws incl. Sliding Block with Spring (hole spacing 45 mm) included in the scope of delivery are suitable for fastening the Distributor.
| Connection compressed-air input for Pneumatic Hose | Connections compressed-air output for Pneumatic Hoses | Max. Pressure [bar] |
|---|---|---|
1x External dia. 6.0 mm | 2x External dia. 6.0 mm | 10 |
