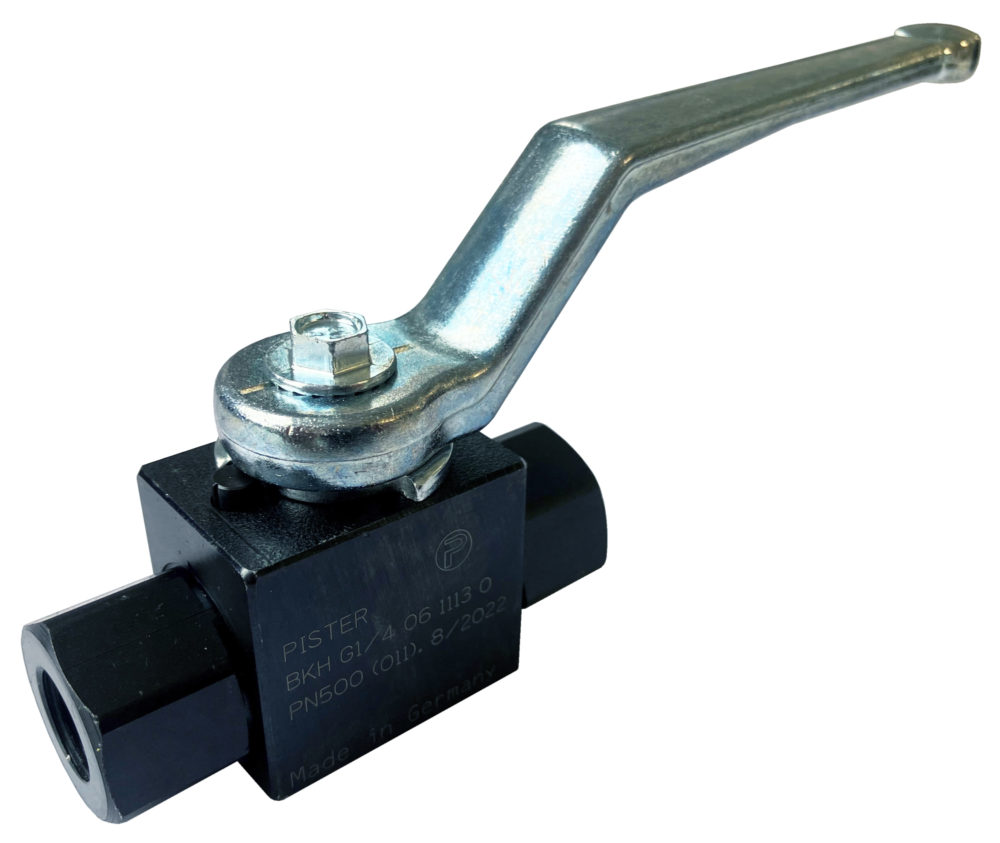

Kugelhahn

Ball valve

Article-No.8588001 / 4089281 / 8588101 / 8588201
ModellBall valve
Design2-way
Versionwith two internal threads

Enquire about product

Product information

Ball Valve

Type of construction: 2-way
Material body: steel
Material ball: Steel, chrome plated
Material seat: PA (nylon)
Min. continuous temperature (medium): -30° C
Max. Continuous temperature (medium): 100° C

Note:
Ball Valve version with Adapter, Art. No. 4089281, consisting of:

  • Ball Valve, connections G 1/4", Art. No. 8588001
  • Adapter with Double Nipple G 1/4" (AGR) - G 1/4" (AGR), Art. No. 0004850
  • Adapter with Union Nut G 1/4" (AGR) - G 1/4" (DKR), Art. No. 8573100
  • Sealing Ring Copper, Art. No. 8036500
Nominal widthConnections Internal thread (thread standard DIN 259)Max. Operating pressureArticle No.
8
1/4" BSP - 1/4" BSP
500
8588001
8
1/4" BSP with screw connections/adapter (see note)
500
4089281
10
3/8" BSP - 3/8" BSP
500
8588101
15
1/2" BSP - 1/2" BSP
500
8588201

Dimensioned Sketch 4089281
