Product information

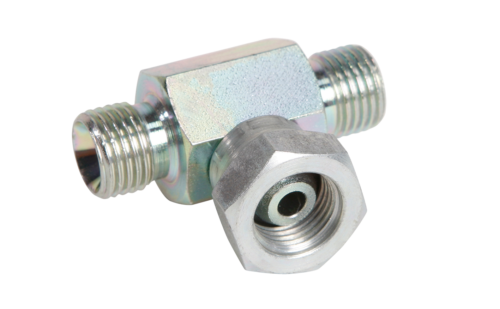

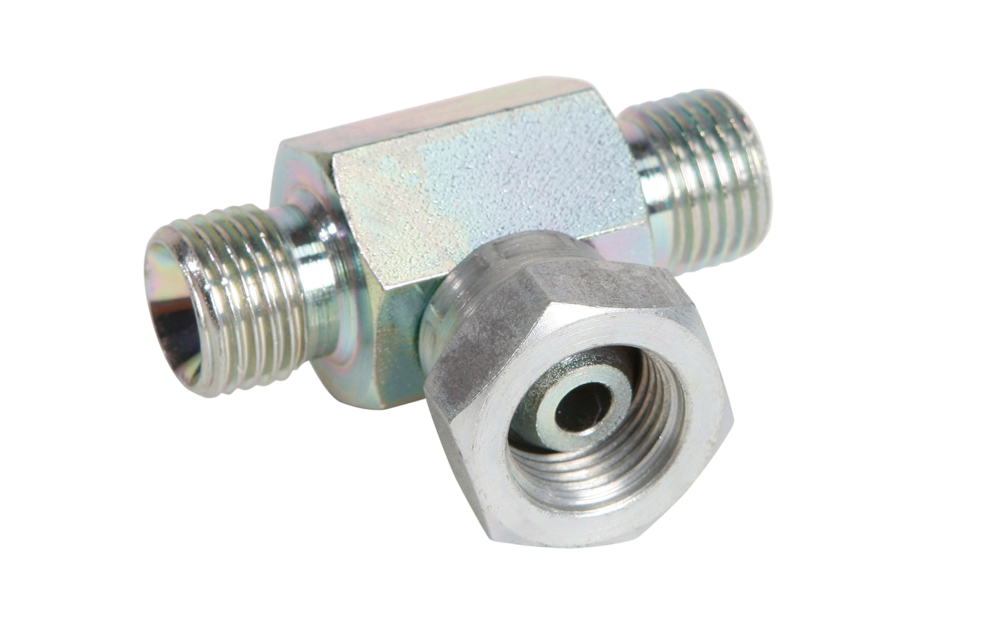

Adapter Tee Connector with Double Nipple and Union Nut, steel zinc plated
Connection AGR with sealing taper 60°, straight external thread
Union Nut connection DKR with sealing taper 60°, without o-ring, straight

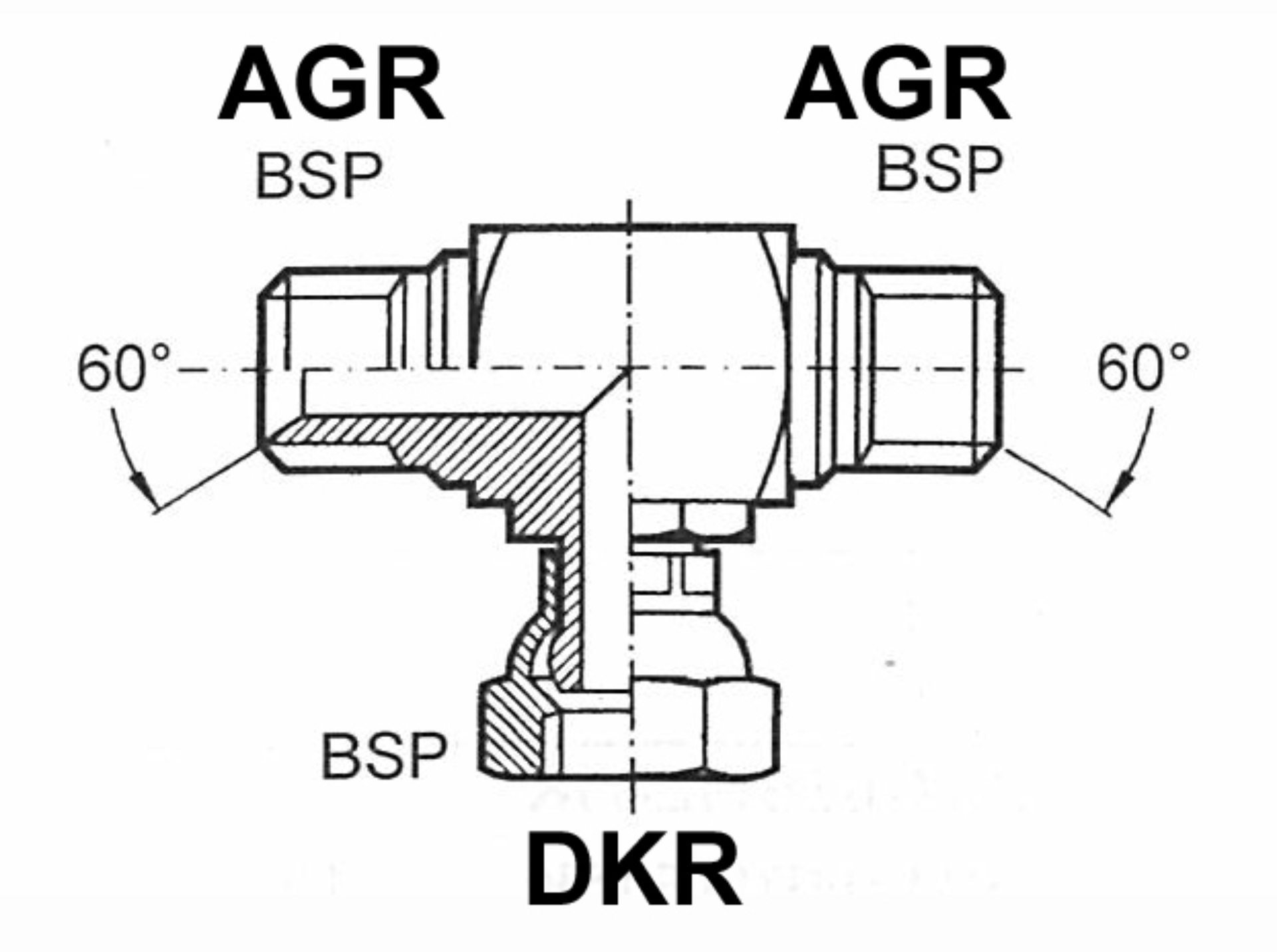

| AGR - AGR | DKR | Target operating pressure | Article No. |
|---|---|---|---|
1/8" BSP - 1/8" BSP | 1/8" BSP | 400 bar | 8573315 |
1/4" BSP - 1/4" BSP | 1/4" BSP | 400 bar | 8573301 |
3/8" BSP - 3/8" BSP | 3/8" BSP | 400 bar | 8573304 |
1/2" BSP - 1/2" BSP | 1/2" BSP | 400 bar | 0007289 |

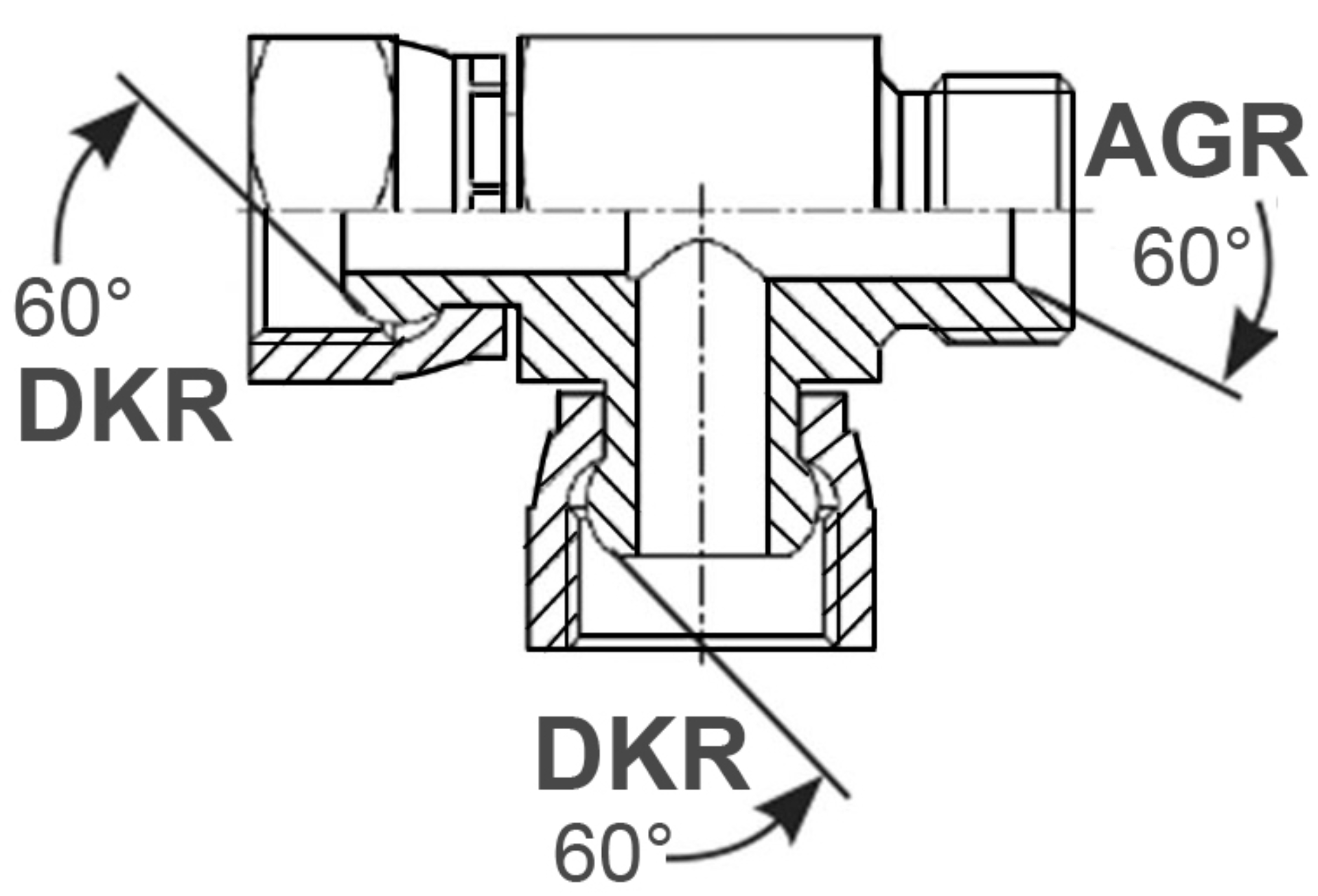

| AGR | DKR - DKR | Target operating pressure | Article No. |
|---|---|---|---|
1/4" BSP | 1/4" BSP - 1/4" BSP | 400 bar | 0000868 |
