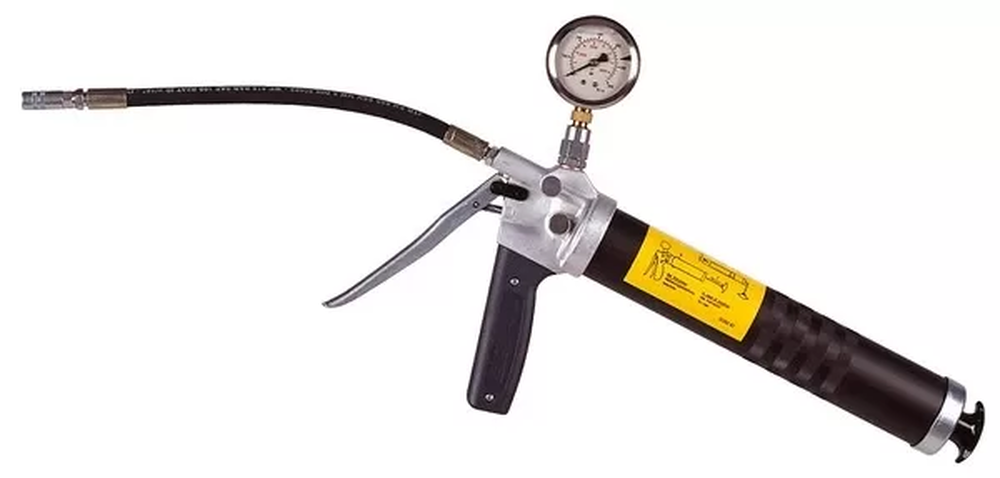

High Pressure One-hand Pump with Gauge is used for clamping tools and face milling gutters
More and more face milling cutters and declamping tools are hydraulically clamped.
An implemented pressroom in the tool is put under pressure through grease or oil, so that the tool as example is pressed onto the shaft of the machine.
This kind of tension enables transferring high torque and therefore reaches an exact centrical tension.
Important information:
The temperature has a high inflünce on setting the pressure to the clamping unit and on the choice of the high pressure one-hand pump.If the temperature falls, pressure also drops, and vice versa.
Differences in temperature of more than 30°C will most probably require a further setting of the pressure to the clamping unit. Regular controls have to be done.
Character features of High Pressure One-hand Pump:
- Ergonomic plastic handle for comfortable and simple handling
- Controlled and accurate application, due to check valve, air bleed valve and pressure release valve
- Generates high clamping force without ancillary power
- Easy and clean disconnection of nipple due to pressure release valve and lubricant return flow to the cylinder
- The pressure gauge serves as control tool for clamping or precise controlled pressure build-up for tool chucks
You will find more information in the downloads section under ''Spare Parts List''
| Description | Article-No. |
|---|---|
| Pump head cpl. | 3373200 |
| Cylinder cpl. | 3828000 |
| Spare Parts Kit cpl. | 3379600 |
Capacity cylinder [cm3]
400
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling with a filling device
NO
Description
400 g Cartridge DIN 1284 For the ABNOX hand-operated lubrication equipments (MURALT AX-III, ABNOX WANNER and AX-400) and High Pressure One-hand Pumps designed for 400 cm3 cylinder (lubricant reservoir) can only use DIN standard 1284, 400 g cartridges with the follwoing dimensions:
Input medium specification
Lubricants up to NLGI 3 / 5000 m Pa.s
Delivery rate per stroke [cm3]
0.3
Operating pressure [bar]
450
Max. pressure [bar]
600
Version pressure gauge scale [bar]
0 - 600
Connection medium outlet internal thread
1/8'' BSP
Connection gauge "M" internal thread
1/4'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.960
