Product information
High pressure technology on smallest room with best tightness.

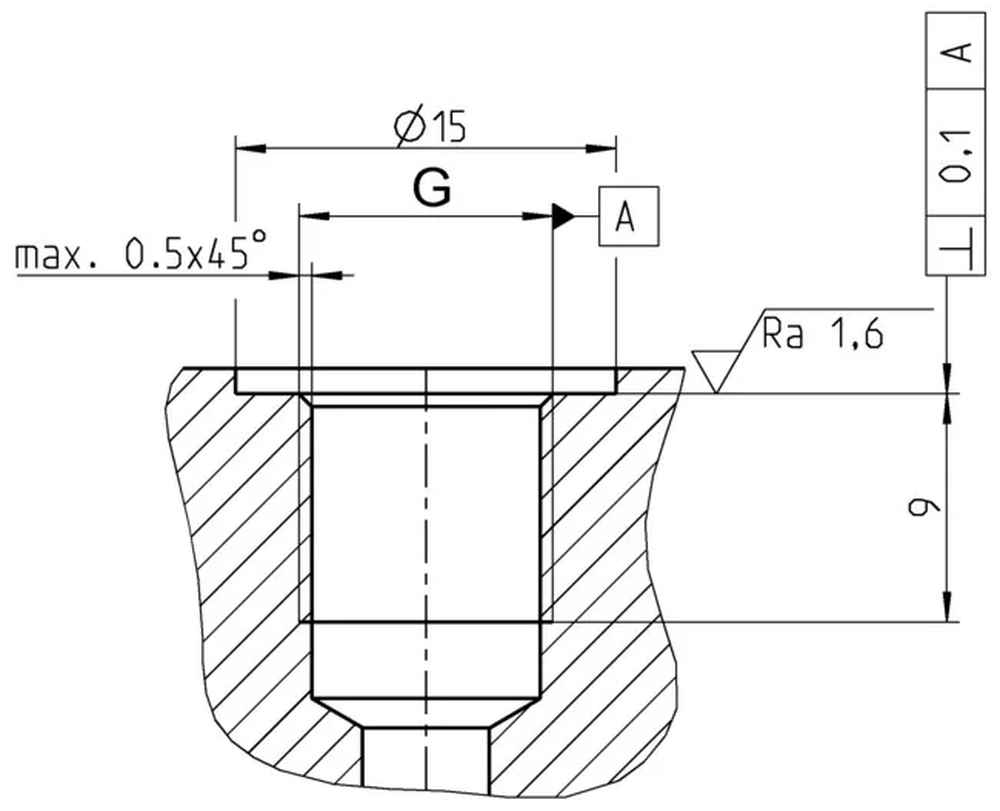

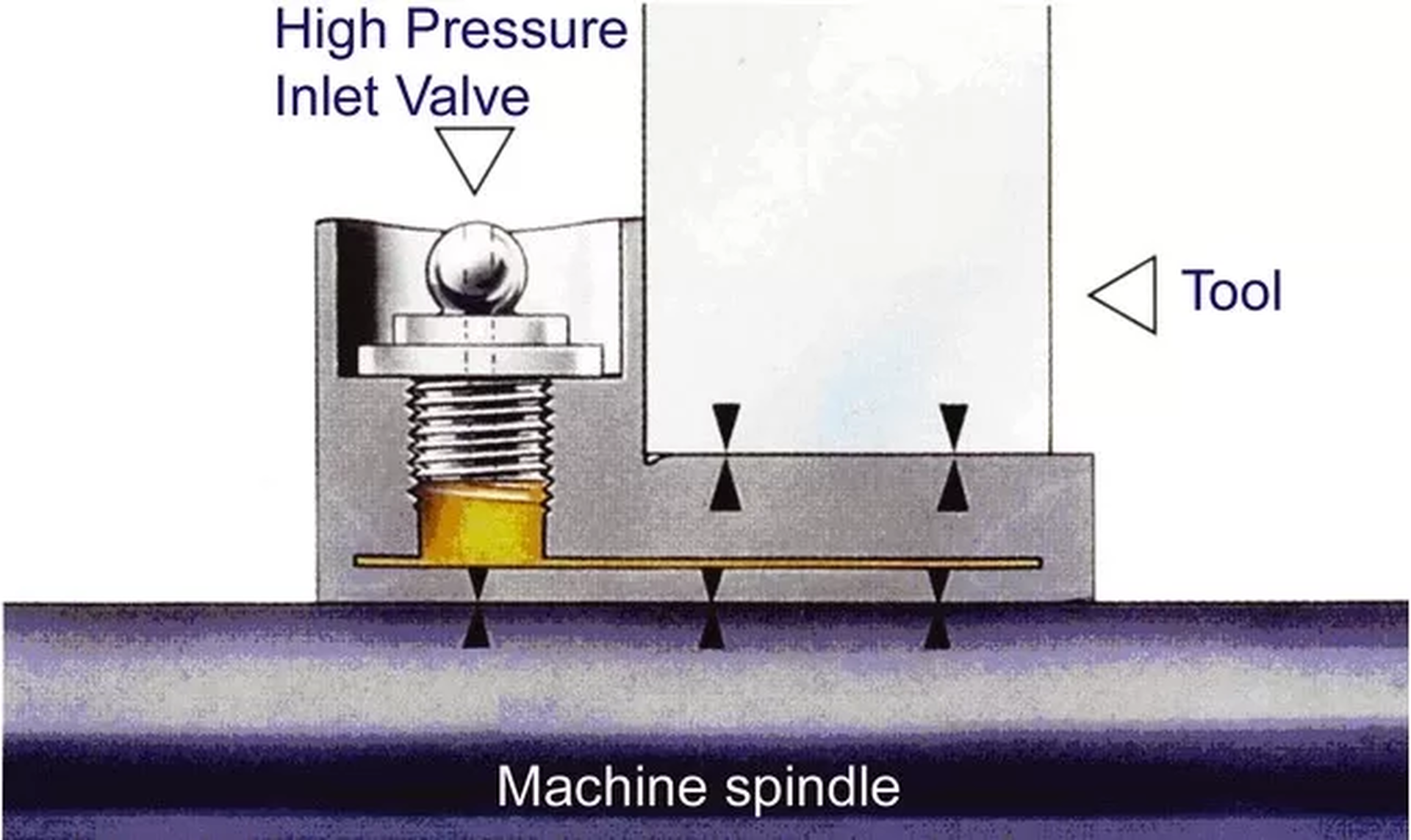

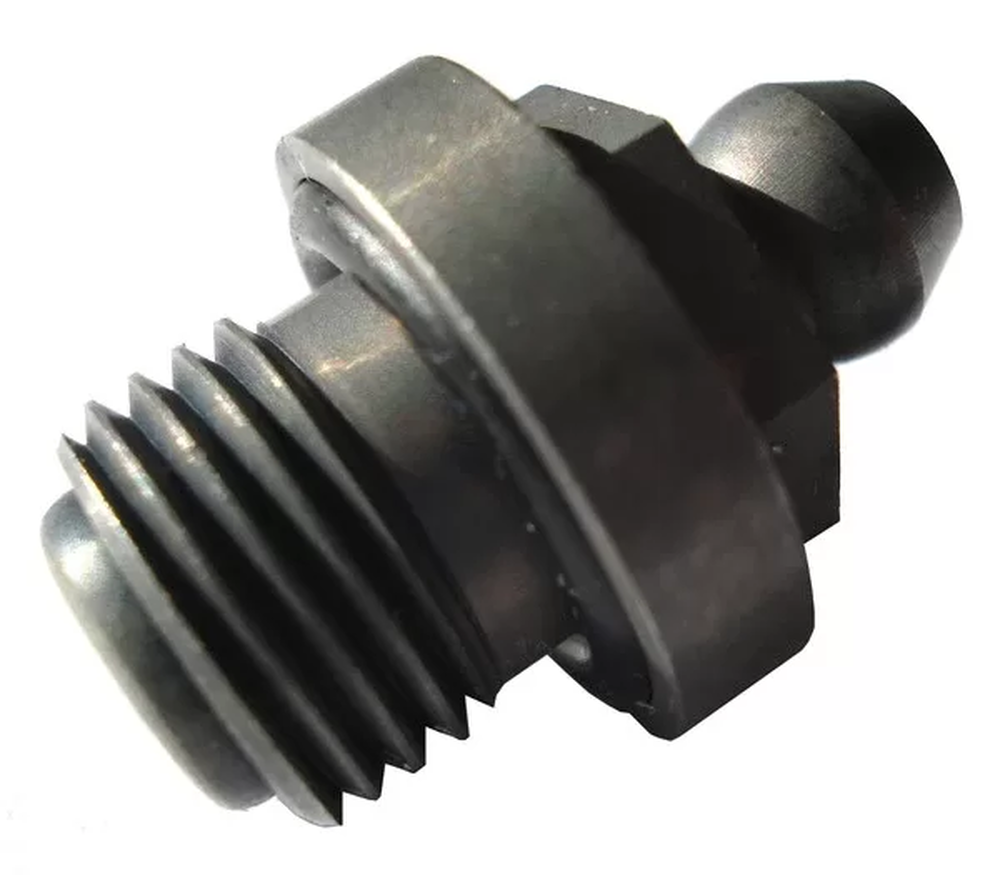

ABNOX high pressure inlet valve with perfectly aligned hermetic sealing, thanks to intergrated O-ring (cut-in) in the frame and head according to DIN 71412 for the installation in clamp systems and cutting tools.
Operating pressure [bar]
700
Max. pressure [bar]
1000
Connection external thread
M10 x 1
With O-ring seal
YES
Stainless V4A
Yes
Tightening torque [Nm]
10
