Product information
High pressure technology on smallest room with best tightness.

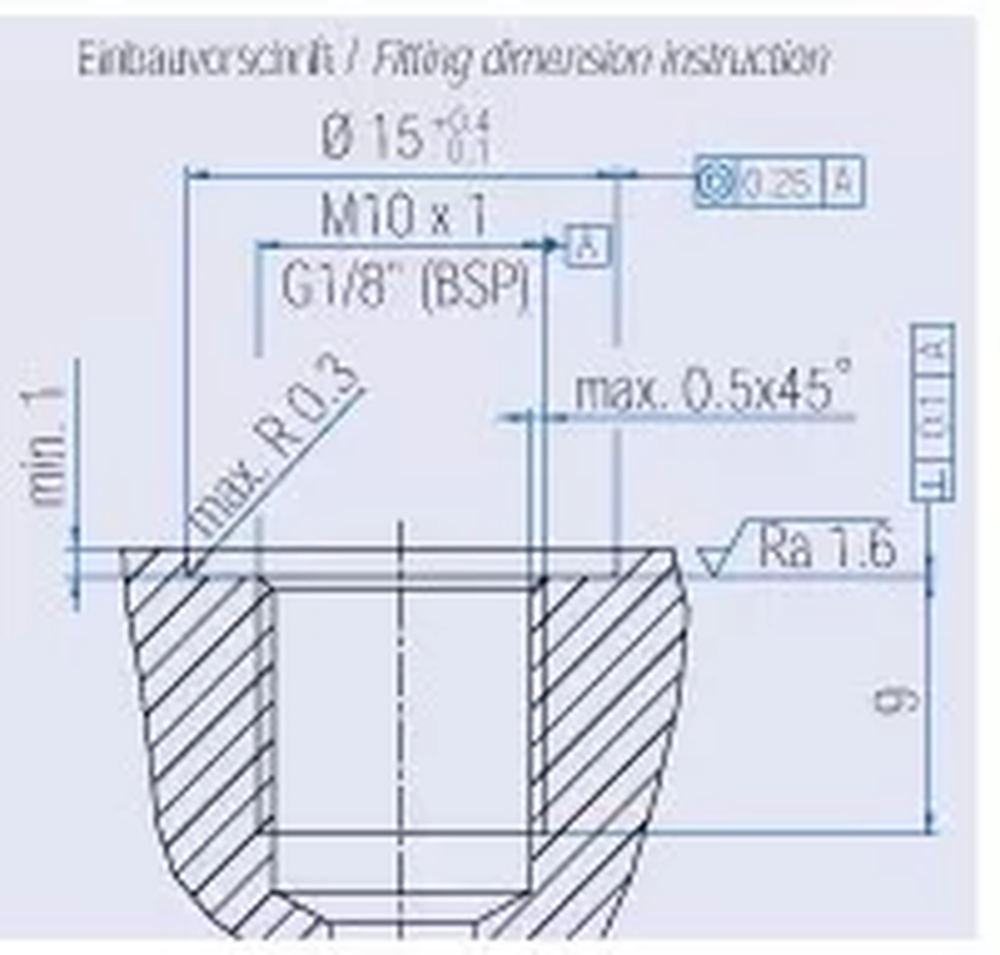

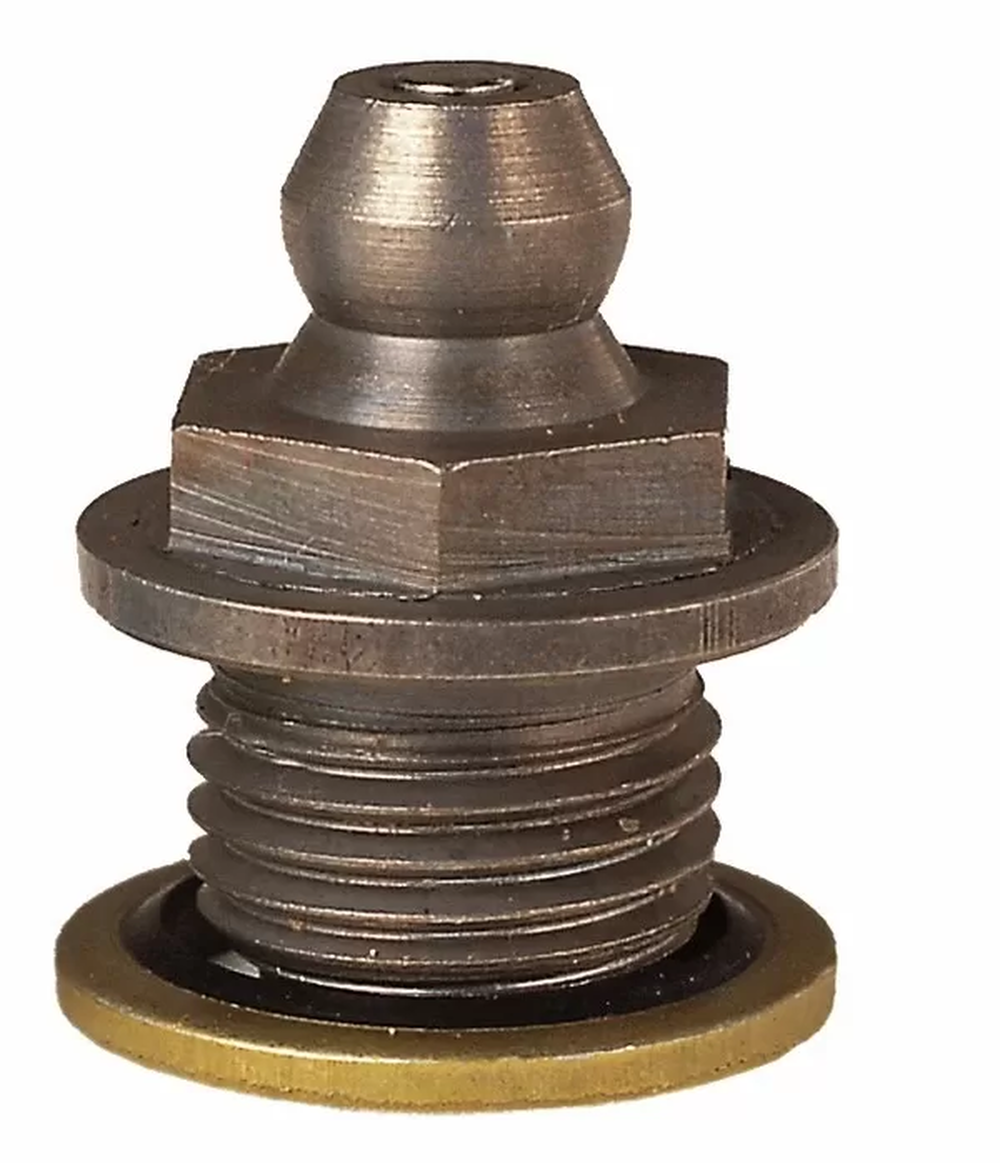

ABNOX high pressure inlet valve with gasket ring and head according to DIN 71412 for the installation in clamp systems and cutting tools.
Operating pressure [bar]
0 - 700
Connection external thread
1/8'' BSP
With flat sealring
YES
Width across flats [mm]
10
Tightening torque [Nm]
10
Diameter [mm]
15
