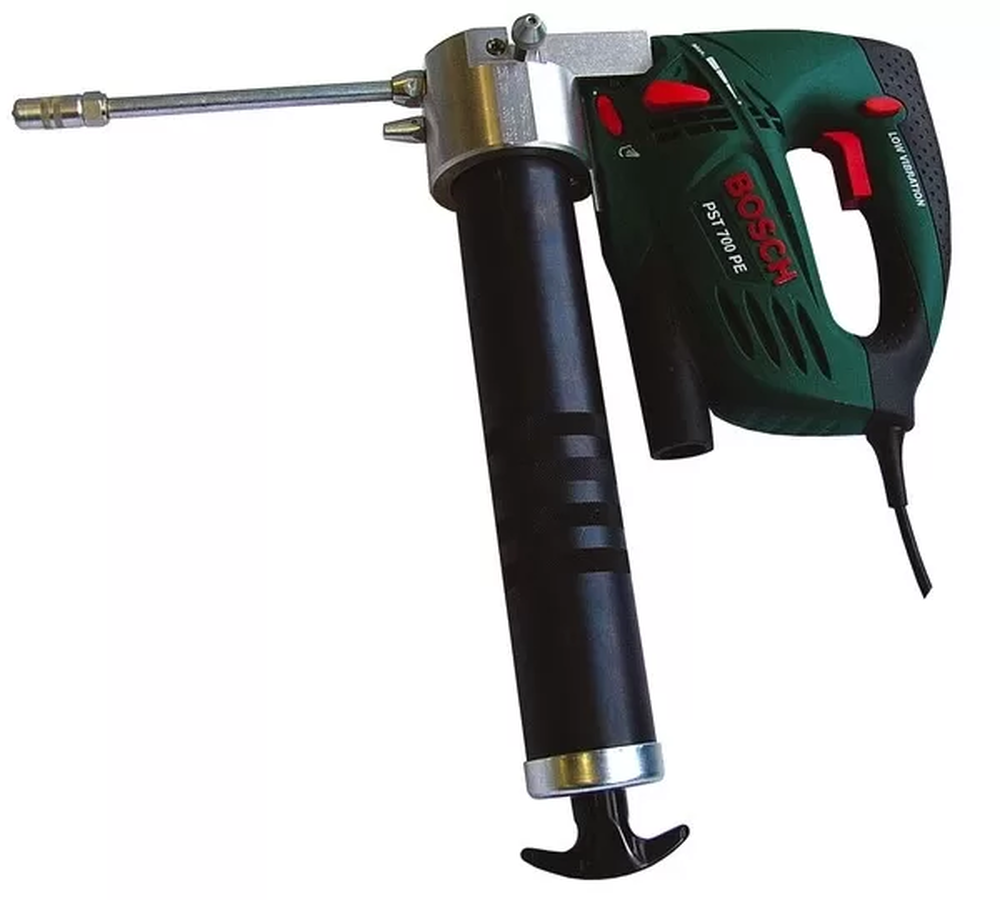

Product information
- Suitable for lubricants(Grease)
- Pump head made of high quality pressure-cast aluminium
- High precision fit of piston to pump head ensures full prevention of leaks and lubricating failures (missed shots)
- With adjustable pressure relief valve for the protection of the electric hand pump in front of overload
- Thanks to the adjustable pressure relief valve and lubricant return flow to the cylinder allows pressure-less disconnection of the connector, and therefore optimal durability of greasing nipples
- Smoothed greasing ensured due to controlled pressure build-up
- Cylinder design optimised for trouble-free application of cartridge
- No reversal of the cylinder piston seal (lip seal) for filling required
- Designed to be utilised under rough conditions. Rugged design of cylinder with knurled surface - sure grip handling
- Fast and convenient due to simple handling and built-in comfort - for universal use
- Connection output medium with check valve - prevent the medium in the pump head from feeding back
- Equipped with interchangeable conical filler cap with ball valve for separate filling with manual or air-operated filler pump
- High-speed ventilation, by half a rotation of the button on the air bleed valve
- Complete disassembly possible allowing easy cleaning and maintenance
- Comprehensive spare parts service
- Packing: Rugged cardboard
| Specification | Article N0. | Quantity |
|---|---|---|
Straight rigid feed tube, length = 180 mm, connector 1/8'' BSP | 3548701 | 1 piece |
4-piece hydraulic connector EXCELLENT, external dia. 15 mm, length = 40 mm (Art.-No. 3655000) | 3569000 | 1 piece |
Conical filler cap with ball valve | 3826101 | 1 piece |
Capacity cylinder [cm3]
400 / 500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling by hand or with filling machine
YES / 500 g
Description
400 g Cartridge DIN 1284 For the ABNOX hand-operated lubrication equipments (MURALT AX-II, ABNOX WANNER and AX-400) designed for 400/500 cm3 cylinder (lubricant reservoir) can only use DIN standard 1284, 400 g cartridges with the follwoing dimensions:
Input medium specification
Lubricants up to NLGI 2 / 5'000 m Pa.s
Delivery rate per stroke [cm3]
1.4
Max. pressure [bar]
500
Connection medium inlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Nominalcurrent [A]
2.40
Frequency [Hz]
50
Output power [kW]
0.29
Voltage [V DC]
230
Min. / max. operatingtemperature [°C]
10 / 40
Weight [kg]
3.400
