Product information

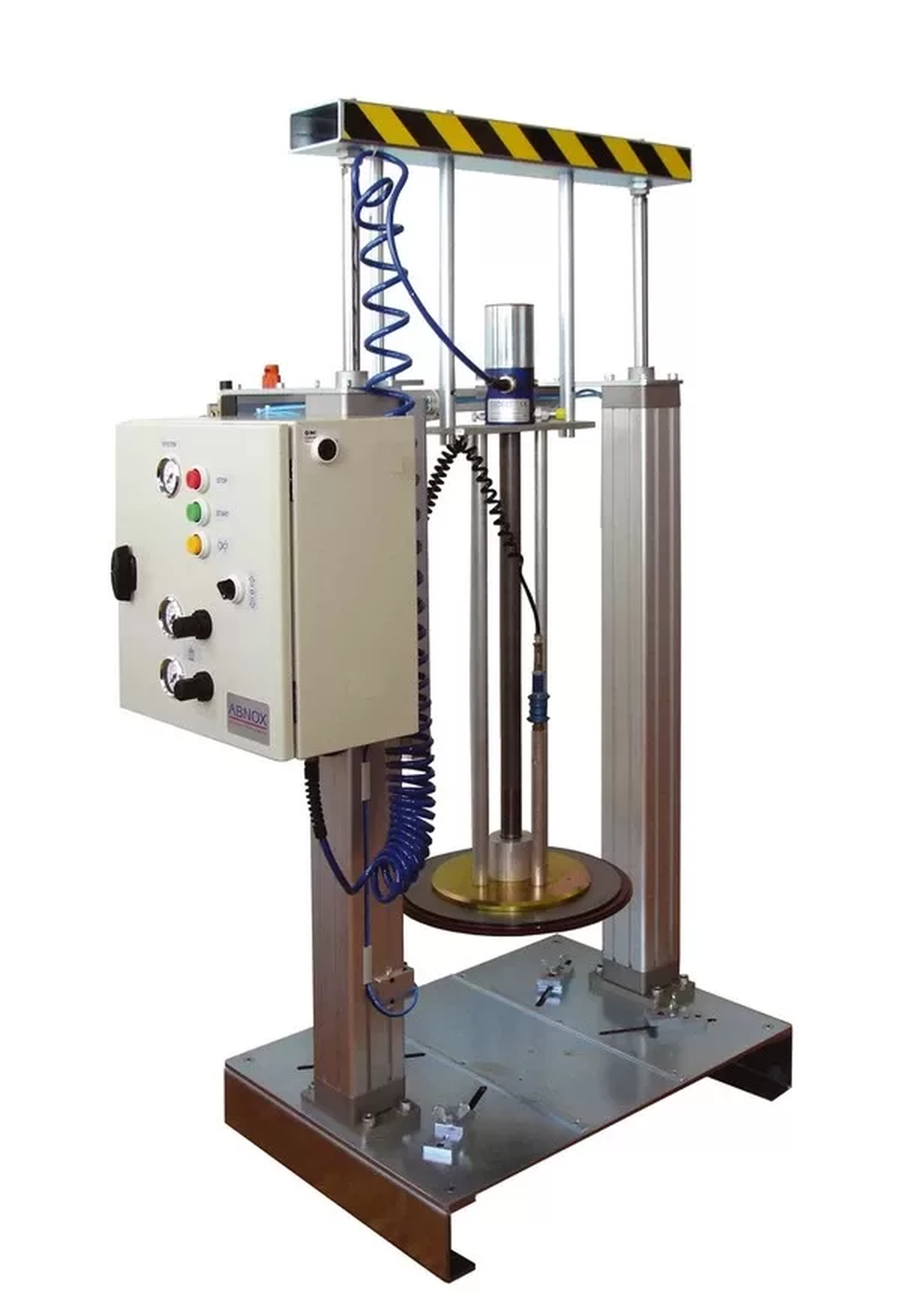

ABNOX Drum Pump is suitable for transferring lubricants of medium to high viscosity levels. Thanks to the constant contact pressure of the follower plate onto the medium the follower plate is brought always to uptate the current fill level.
An empty state detector "container empty" serves to switch off the pump when the low fill level has been reached, thus preventing the aspiration of air.
Replacement of the empty container is quick, clean and convenient, and done with little manual effort. Thanks to complete drainage of the container, a minimum amount of lubricant is wasted.
The Drum pump mAXI with pressure ratio 20:1 is available with different upgrading options and suitable for all containers 180 kg available on the market.
• High delivery rate
• Modular design
• Long life time product
• Components harmonised perfectly with each other
• For large flow rates. Suitable for centralized supply pump
• Usable also for low temperatures
• No electric connector
• Exchangeable follower plate
• Adjustable pressure at the follower plate
• Automatic shutoff: stop the pump action by low fill level
• Reliability two-hand operation for the UP and DOWN from double cylinder pump lift
* only available in combination with upgrading set acoustic warn signal „container empty“ (L), Article No. 4630010
We are happy to calculate the follower plate for you.
To come up with the right size we need the following:
- internal top-diameter
- internal bottom-diameter
- container height
Container internal dia. [mm]
550 - 580
Container height [mm]
870
Suction tube dia. [mm]
50
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
6490
Delivery rate per double stroke [cm3]
152
Min. / max. workingpressure medium inlet [bar]
4.10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
105
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
3/8'' BSP
Connection medium outlet external thread
1/2'' BSP
Max. air consumption [l/min.]
1250
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4.10
Pneumatic connection internal thread
3/8'' BSP
Min. / max. operatingtemperature [°C]
10/40
