Product information
The pumping of medium to high viscosity lubricants requires a correspondingly adapted technology. The pneumatic lifting device enables optimum suction behaviour and complete emptying of the grease reservoir. An empty signal switches off the pump when the fill level is low, thus preventing air from being sucked in.
The optimal solution for your lubrication applications! The pump unit 60:1 is available for all commercially available containers from 1-5 kg.
This grease supply system mINI with a pressure ratio of 60:1 is used for lubricating equipment and machines.
The mINI grease supply system consists of a compressed air grease pump and a pump jack incl. control unit with 2-hand control.
Separate to the grease supply system, the follower plate is selected according to container size (see accessories).
Remark:
When ordering, please indicate internal diameter (from top and down) and the height of the container and the type of lubricant.Caution: Attention to circumferential flanging at the container!
Attention:
Note the circumferential flanging on the container!

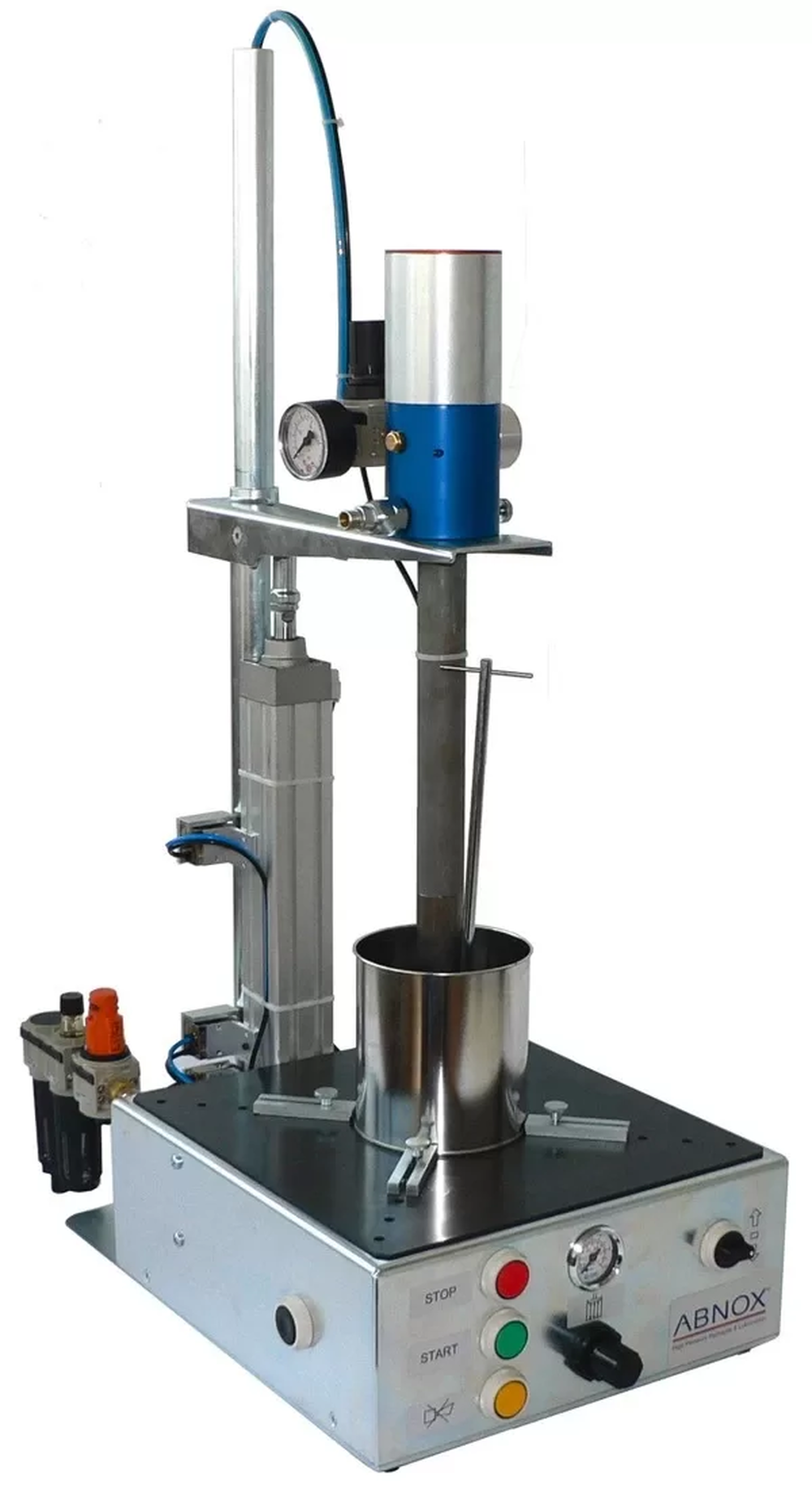

Frontal view with press button to START- and STOP the supply pump, pressure regulating valve with pressure gauge for follower plate pressure and mode switch UP, HOLD and DOWN for the pneumatic lifting device
Container internal dia. [mm]
80 - 300
Container height [mm]
300
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 500'000 m Pa s
Delivery rate at pump outlet [cm3/min]
500
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
335
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
555
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
