Product information
The pumping of medium to high viscosity lubricants requires a correspondingly adapted technology. The pneumatic lifting device enables optimum suction behaviour and complete emptying of the grease reservoir. An empty signal switches off the pump when the fill level is low, thus preventing air from being sucked in.
The optimal solution for your lubrication applications! The 20:1 pump unit is available for all commercially available containers from 1-5 kg.
This grease supply system mINI with a pressure ratio of 20:1 is ideal for use as a feed pump for ABNOX dosing valves or as a transfer and filling system.
This pump system mINI consists of a compressed air grease pump and a pump jack incl. control with 2-hand control.
Separate to the grease supply system, the follower plate is selected according to container size (see accessories).
Remark:
When ordering, please indicate internal diameter (from top and down) and the height of the container and the type of lubricant.Caution: Attention to circumferential flanging at the container!
Attention:
Note the circumferential flanging on the container!

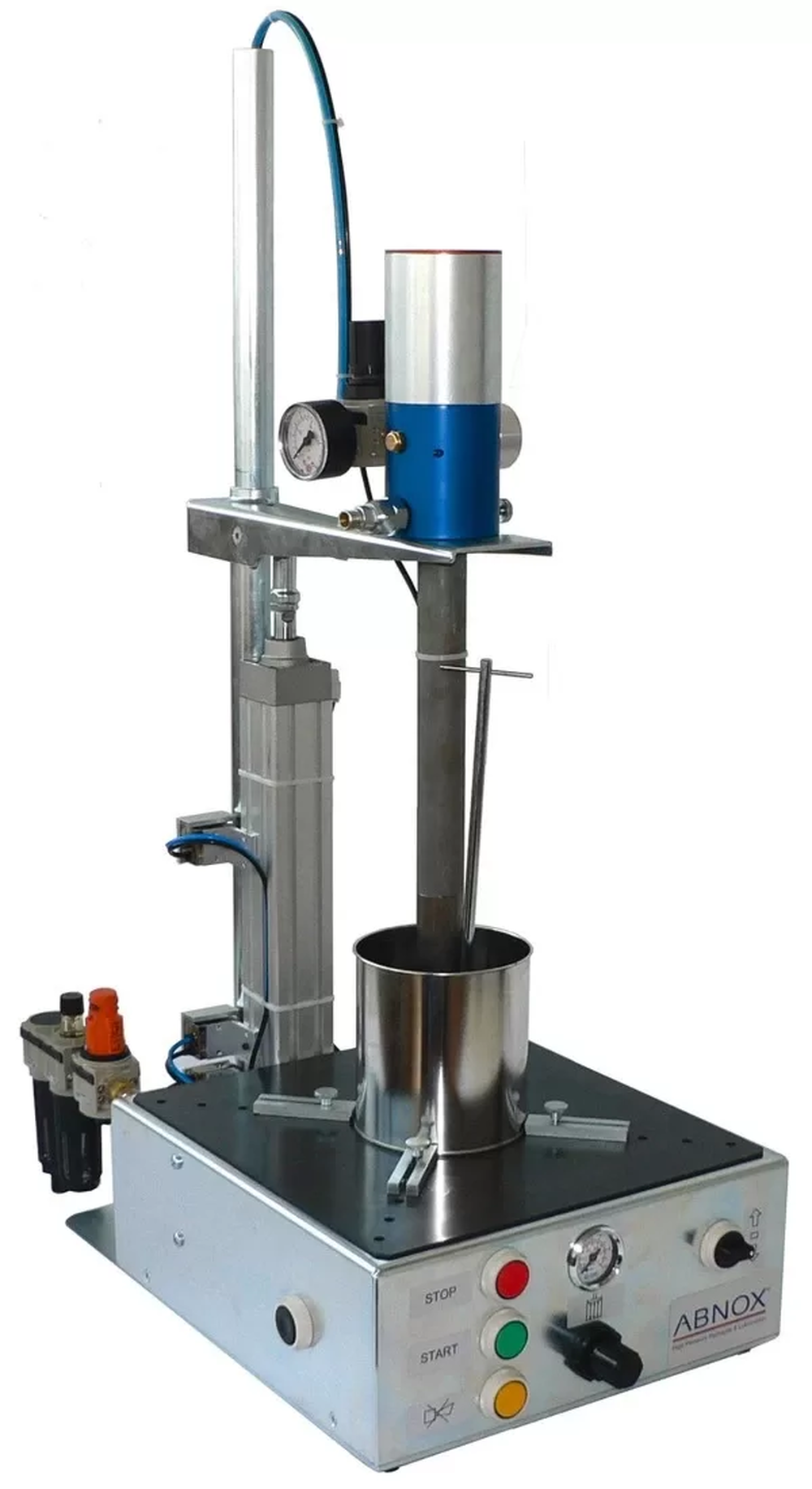

Frontal view with press button to START- and STOP the supply pump, pressure regulating valve with pressure gauge for follower plate pressure and mode switch UP, HOLD and DOWN for the pneumatic lifting device
| Upgrading options | Article No. | Quantity |
|---|---|---|
Set container centering | 4633800 | 1 piece |
Acoustic warn signal ?container empty? | 4638200 | 1 piece |
Electric low lewer indicator ?container empty? | 4630030 | 1 piece |
Connection piece 1/4'' BSP with gauge 400 bar and ball valve for air vent | 4082001 | 1 piece |
5-Multiplier with fittings 1/4'' BSP | 4080501 | 1 piece |
Container internal dia. [mm]
80 - 300
Container height [mm]
300
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 3 / 500'000 m Pa s
Delivery rate at pump outlet [cm3/min]
890
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
115
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
