Product information

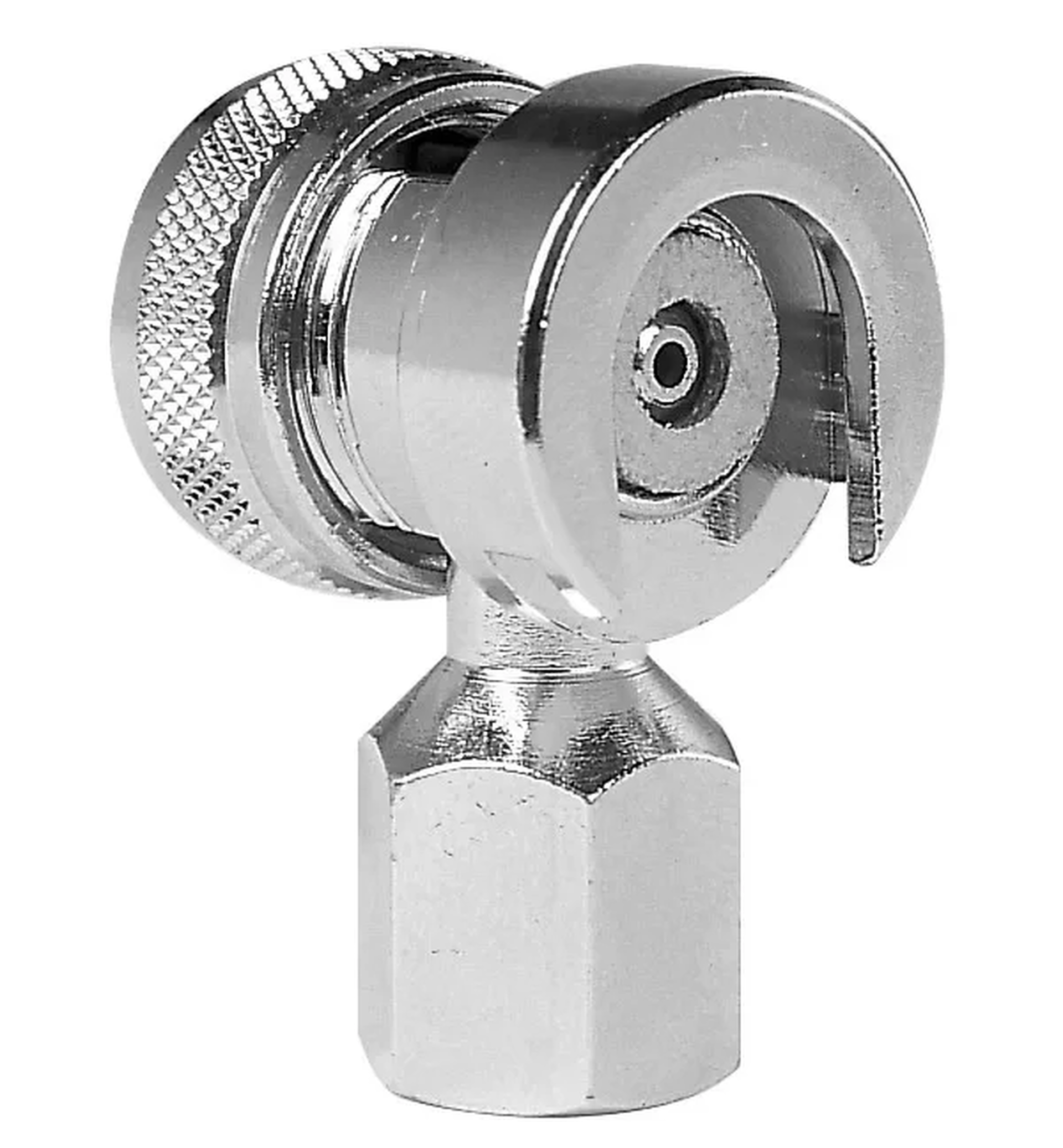

Flexible connector for reliable lubricating action, suitable for button head nipples.
The connector may be rotated in any direction desired, allowing comfortable access of any nipple position.
Connect and release nipple is possible by either pulling or pushing connector.
Point of application:
Button head nipple of type A2 according to DIN 3404 with head diameter 16 mm
Area of application for greasenipples type
A2 (DIN 3404)
Operating pressure [bar]
200
Max. pressure [bar]
400
External diameter [mm]
22
Width across flats [mm]
14
