Product information
The Mass Grease Supply System mAXI is ideally suited to lubricate a large bearing with the correct amount of grease, for packing grease into smaller containers and for supplying a ABNOX dispensing valve of 30 to 500 cm2.

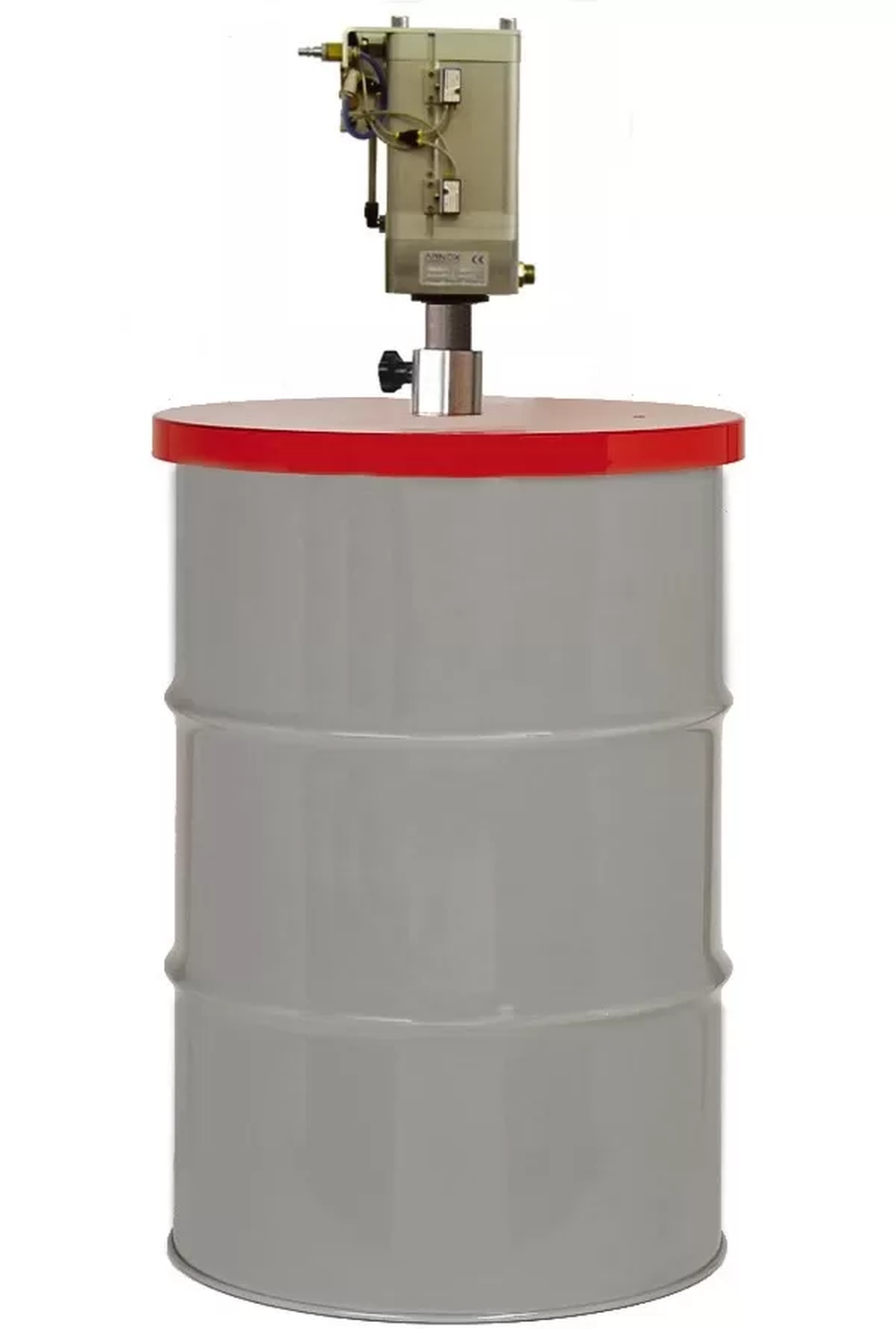

Air-operated Grease Supply System with a Grease Mass Pump and Pressure Reducing Valve for direct mounting to containers 180 kg.
Recommendation from ABNOX:
Use a maintenance unit when air supplying device contains humidity to prevent corrosion and fouling.
Use the original container and fit the right follower plate. This will avoid air pockets.
Never leave the pump system on the suction tube on the floor. Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
180
Container internal dia. [mm]
560 -600
Container height [mm]
870
Suction tube dia. [mm]
50
Input medium specification
Lubricants up to NLGI 3 / 5000 m Pa.s
Delivery rate at pump outlet [cm3/min]
4242
Delivery rate per double stroke [cm3]
136
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
105
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/2'' BSP
Max. air consumption [l/min.]
920
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
