Product information
New Version! Replaces Article-No.: 3239111

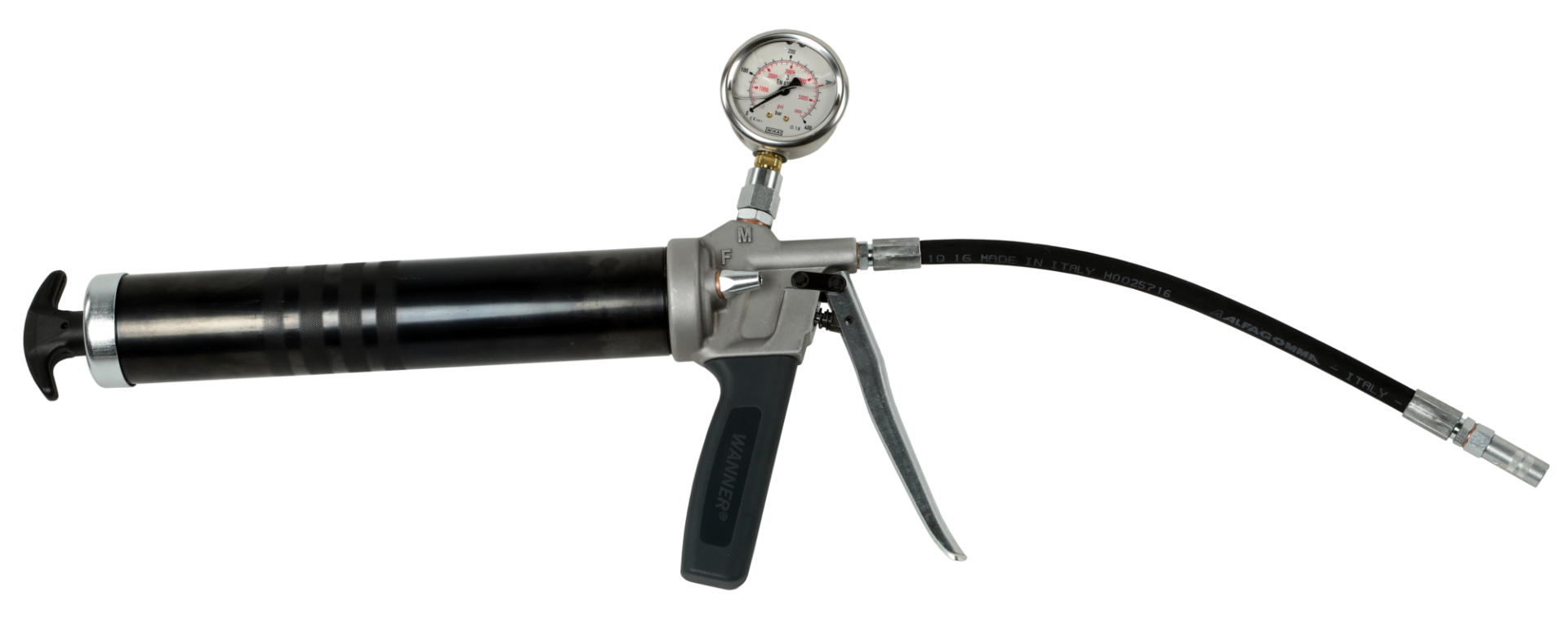

The Equipment with an interchangeable conical Filler Cap with integrated Ball Valve enables separate filling with Manual or Air-operated Filler Pump.
Connection medium outlet: 1/8" BSP internal thread.
| Specification | Quantity | Article No. |
|---|---|---|
| High Pressure Hose 700 bar, length = 325 mm, Connector 1/8'' BSP | 1 piece | 3514300 |
| 4-piece Hydraulic Connector EXCELLENT, external dia. 14 mm, length = 40 mm | 1 piece | 3659000 |
Gauge scale 0 - 600 bar | 1 piece | 8374601 |
| Conical Filler Cap with Ball Valve | 1 piece | 3569000 |
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article-No. |
|---|---|
Seal Kit Cylinder | 3083200 |
Pump Head cpl. | 0005621 |
Cylinder cpl. | 3819500 |
Piston Rod cpl. | 3819504 |
Spare Parts Kit cpl. | 0006819 |
Capacity cylinder [cm3]
400 / 500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder length [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling with a filling device
YES / 500g
Input medium specification
Lubricants up to NLGI 2 / 5'000 mPa.s
Delivery rate per stroke [cm3]
0.3
Operating pressure [bar]
450
Max. pressure [bar]
600
Version pressure gauge scale [bar]
0 - 600
Connection medium outlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Connection gauge "M" internal thread
1/4'' BSP
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
1.960
