Product information

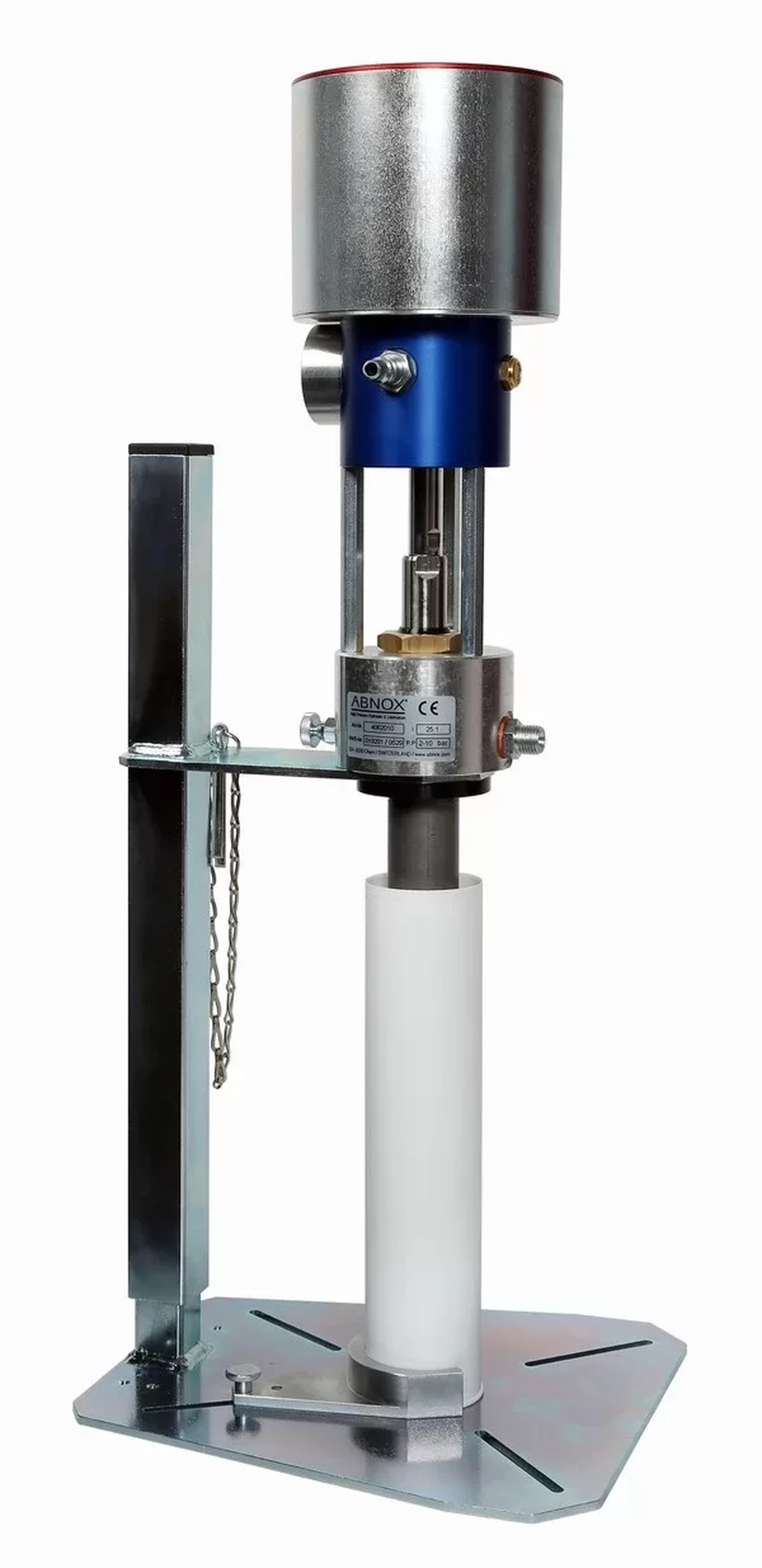

The Air-operated Grease Supply System mINI 25:1 type S is ideal for feeding expensive lubricants as well as silicon greases and silicon oils from small quantities of lubricants directly from 400 g DIN cartridges (DIN 1284), if a space-saving solution at low cost is required.
This pump allows by means of a high pressure pipe with integrated air supply line a quick and easy connection to ABNOX metering valves.
The vertical lock enable a facilitated change of cartridge thanks to height adjustment.
Character features of ABNOX Grease Supply System mINI for DIN cartridges (DIN 1284):
• Compact design
• Supply direct from original cartridge DIN 1284
• Long life time product
• Components harmonised perfectly with each other
• Usable for central grease supply
• Simple audible announcement "container empty" with pump stops (as option)
Container internal dia. [mm]
51
Container height [mm]
235
Suction tube dia. [mm]
32
Description
The Air-operated Grease Supply System mINI 25:1 type S is ideal for feeding expensive lubricants as well as silicon greases and silicon oils from small quantities of lubricants directly from 400 g DIN cartridges (DIN 1284), if a space-saving solution at low cost is required.This pump allows by means of a high pressure pipe with integrated air supply line a quick and easy connection to ABNOX metering valves.The vertical lock enable a facilitated change of cartridge thanks to height adjustment.
Input medium specification
Lubricants up to NLGI 3 / 500'000 m Pa s
Delivery rate at pump outlet [cm3/min]
1295
Delivery rate per double stroke [cm3]
17
Min. / max. workingpressure medium inlet [bar]
02. Okt
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
144
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
233
Connection internal thread
1/4'' BSP
Connection medium inlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
02. Okt
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
Okt 40
