Single Grease Pumps

Single Grease Pumps 4060501 10:1 Container height 235 mm Container 1 - 5 kg

Single Grease Pumps

Status
Discarded Article
Article No.
4060501
Modell
10:1
Design
Container height 235 mm
Version
Container 1 - 5 kg

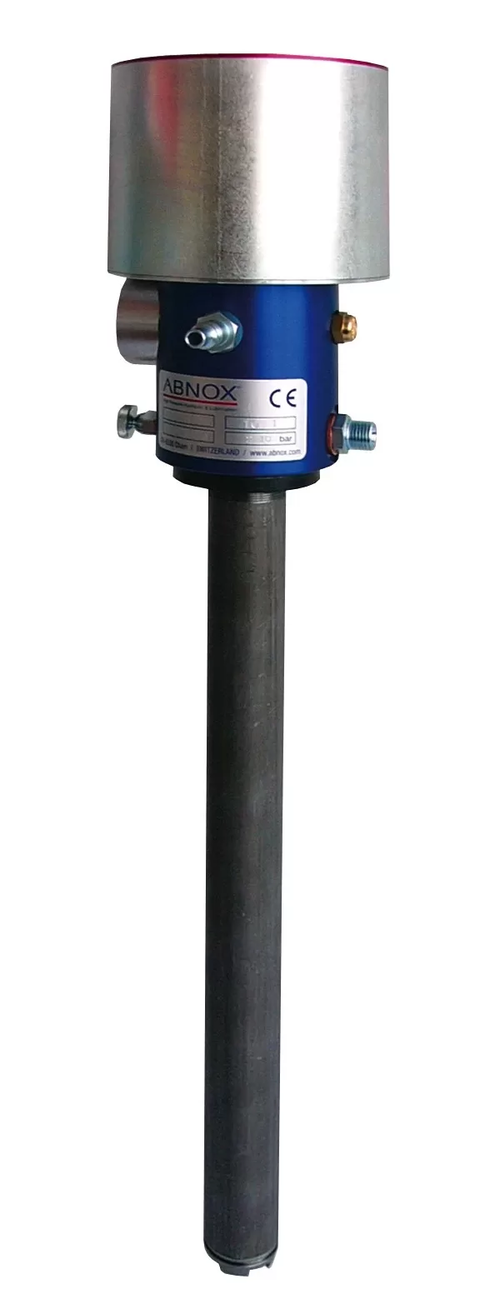

Single Grease Pumps Bild

The Air-operated Grease Pump with pressure ratio from 10:1 is ideal applicable as feeding pump for ABNOX metering valves or as filling system.

This Air-operated Grease Pump is renowned for their high efficiency as well as their extremely low noise levels.

Outstanding reliability due to high quality materials, seals and special change-over valve.

Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.

Technical Data
Container size [kg]
1 - 5
Container height [mm]
235
Suction tube dia. [mm]
32
Suction tube lenght [mm]
238
Input medium specification
Lubricants up to NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
1190
Delivery rate per double stroke [cm3]
20
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
67
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
111
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Operating Manual
