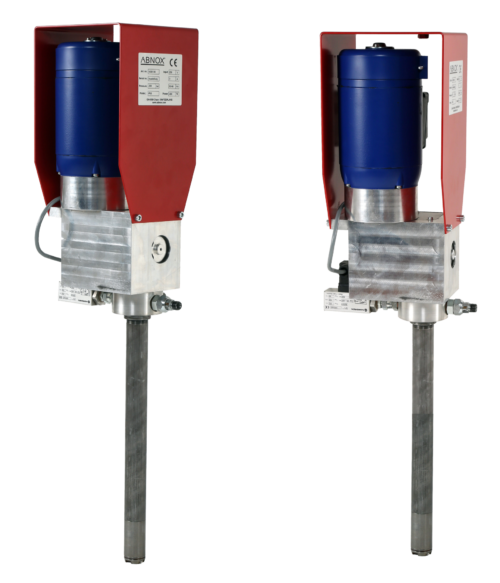

Electric Single Pump AX-2000-2-M
|
4355200 | AX-2000-2-M | Container height up to 470 mm | Container 20 - 25 kg |
Electric Single Pump AX-2000-2-M
Article No.
4355200
Modell
AX-2000-2-M
Design
Container height up to 470 mm
Version
Container 20 - 25 kg
Technical Data
Container size [kg]
20 - 25
Container height [mm]
up to 470
Suction tube dia. [mm]
32
Suction tube lenght [mm]
477
Input medium specification
Lubricants up to NLGI 2 / 5'000 mPa.s
Delivery rate at pump outlet [cm3/min]
280 (Delivery rate metered at pump outlet with Medium NLGI 2 by 200 bar counterpressure and by 20°C ambient temperature)
Max. workingpressure medium outlet [bar]
200
Connection medium outlet external thread
1/4'' BSP
Starting Current [A]
15
Nominalcurrent [A]
5
Frequency [Hz]
50/60
Power [kW]
0.40
Voltage [V DC]
230
Duty Cycle
[%]
100
Protectionclass
IP 55 / DIN 40050
Min. / max. operatingtemperature [°C]
10/40
