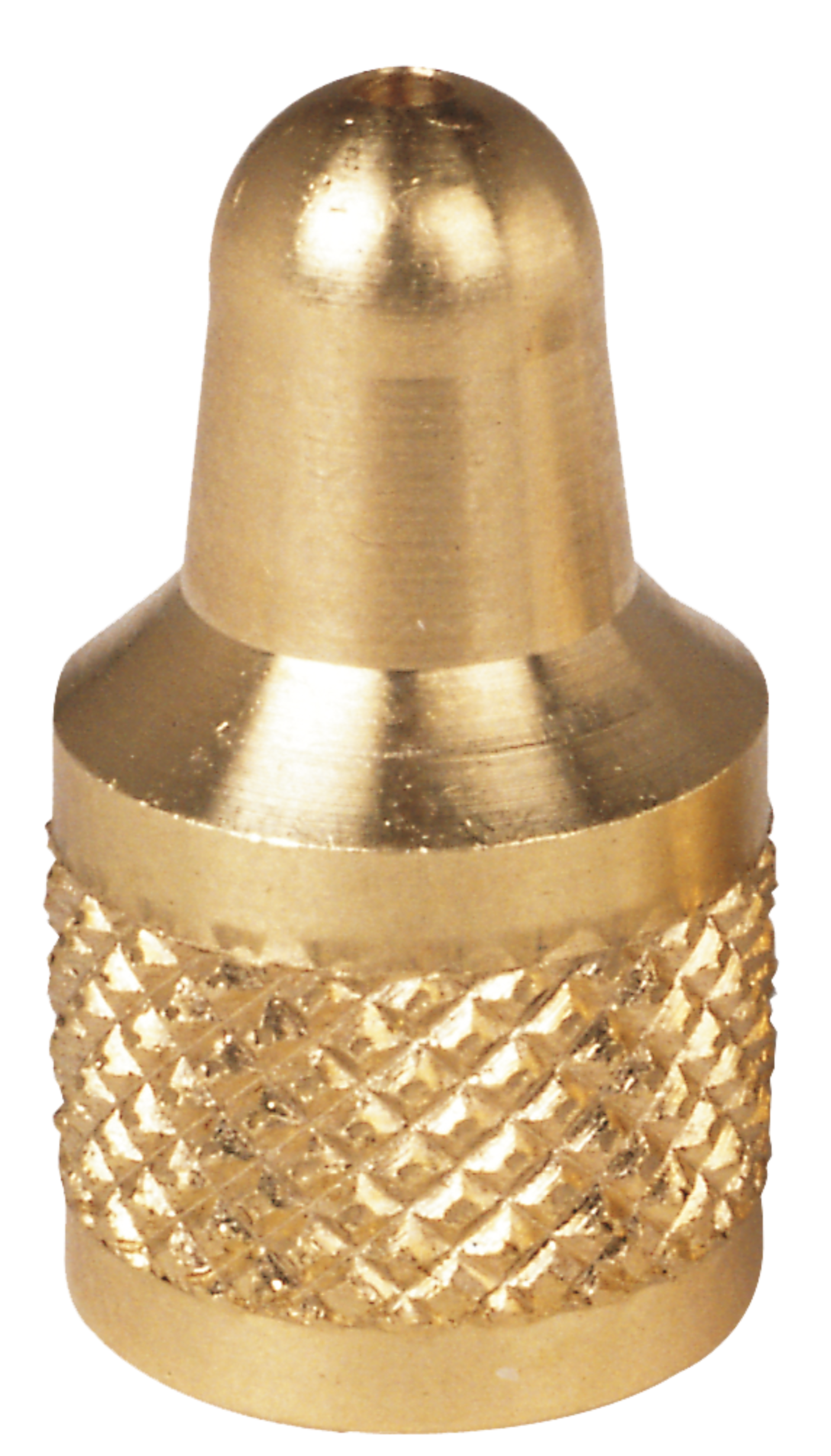

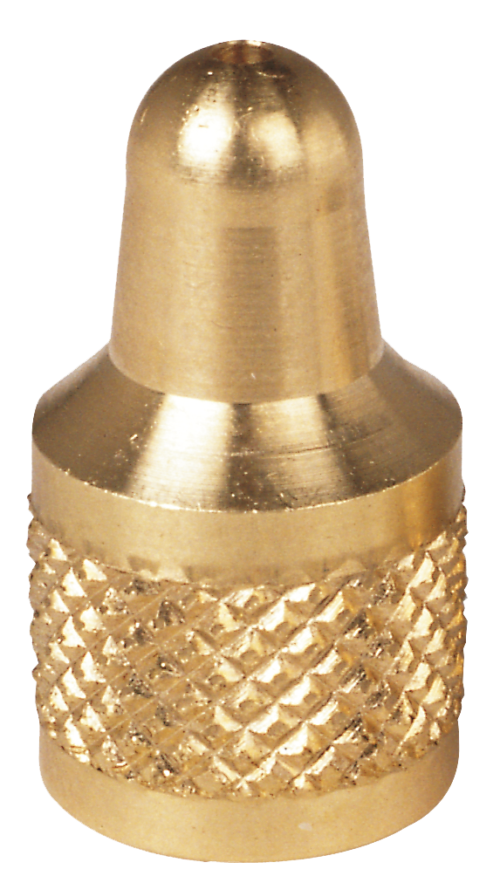

Conical Nozzle in brass with conical nozzle head.
Suitable for use mineral oil or lubricant.
Point of application: Lubrication Nipple of type D with head of diameter Ø 6.5 mm and lubrication holes.
How can we help you?
Conical Nozzle external dia. 6.5 mm / 1/8'' BSP
|
3843000 | Conical Nozzle | External dia. 6.5 mm / 1/8'' BSP | for Lubricating Nipple D |
Conical Nozzle external dia. 6.5 mm / 1/8'' BSP
Article No.
3843000
Modell
Conical Nozzle
Design
External dia. 6.5 mm / 1/8'' BSP
Version
for Lubricating Nipple D
Technical Data
Area of application for greasenipples type
D
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection internal thread
1/8'' BSP
External diameter [mm]
12 (diamond knurled)
Length [mm]
20
