Electric hand pump AX-400 H / 230 V AC / 400/500 cm3 / 150 bar / chain / stand foot / without filler cap

Electric hand pump AX-400 H / 230 V AC / 400/500 cm3 / 150 bar / chain / stand foot / without filler cap 4307200 AX-400 H / 230 V AC 400/500 cm3 / 150 bar / Chain With stand foot / Without filler cap

Electric hand pump AX-400 H / 230 V AC / 400/500 cm3 / 150 bar / chain / stand foot / without filler cap

Status
Discarded Article
Article No.
4307200
Modell
AX-400 H / 230 V AC
Design
400/500 cm3 / 150 bar / Chain
Version
With stand foot / Without filler cap

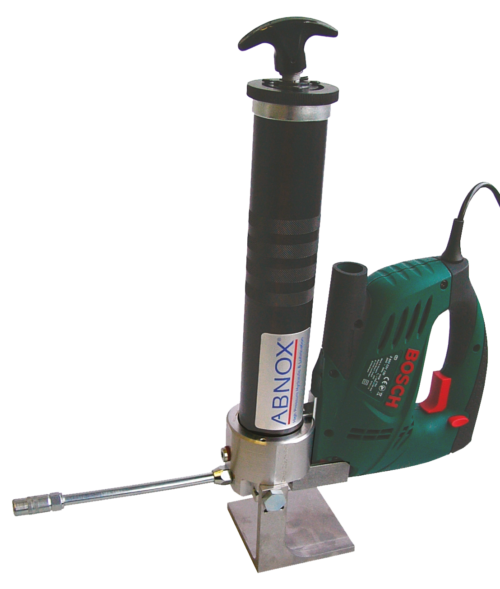

Electric hand pump AX-400 H / 230 V AC / 400/500 cm3 / 150 bar / chain / stand foot / without filler cap Bild

This electric hand pump AX-400 equipped with extra strength spring and by means of a deflection sheave (chain lift = half effort) – ideal also for high viscosity lubricant (up to NLGI 3) with no restrictions.

Special design for use at ambient temperature around 0 degree, and for large grease throughput.

This model is additionally equipped with a foot-plate to the floor during to tighten the spring.

Version without an interchangeable conical filler cap with integrated ball valve.

This electric hand pump AX-400 is equipped with:
Specification Article No. Quantity
Straight rigid feed tube, length = 180 mm, connector 1/8'' BSP
1 piece
4-piece hydraulic connector EXCELLENT, external dia. 14 mm, length = 40 mm
1 piece
Stand foot
1 piece
Spare Parts:

You will find more information in the downloads section under ''Spare Parts List''

Description Article No.

Seal Kit

4307500

Cylinder cpl.

3828003

Technical Data
Capacity cylinder [cm3]
400 / 500
Cylinder external dia. [mm]
58
Cylinder wall thickness [mm]
1.5
Cylinder lenght [mm]
300
Filled with 400 g grease cartridges DIN 1284
YES
Filling by hand or with filling machine
NO
Input medium specification
Lubricants up to NLGI 3 / 5'000 m Pa.s
Delivery rate per stroke [cm3]
3.0 (per second)
Max. pressure [bar]
150
Connection medium outlet internal thread
1/8'' BSP
Connection filter cap "F" internal thread
1/8'' BSP
Nominalcurrent [A]
2.40
Frequency [Hz]
50
Power input [kW]
0.53
Output power [kW]
0.29
Voltage [V DC]
230
Protectionclass
Class II
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
4.200
Downloads
Document

Dimensioned Sketch

Document

Spare Sparts List
